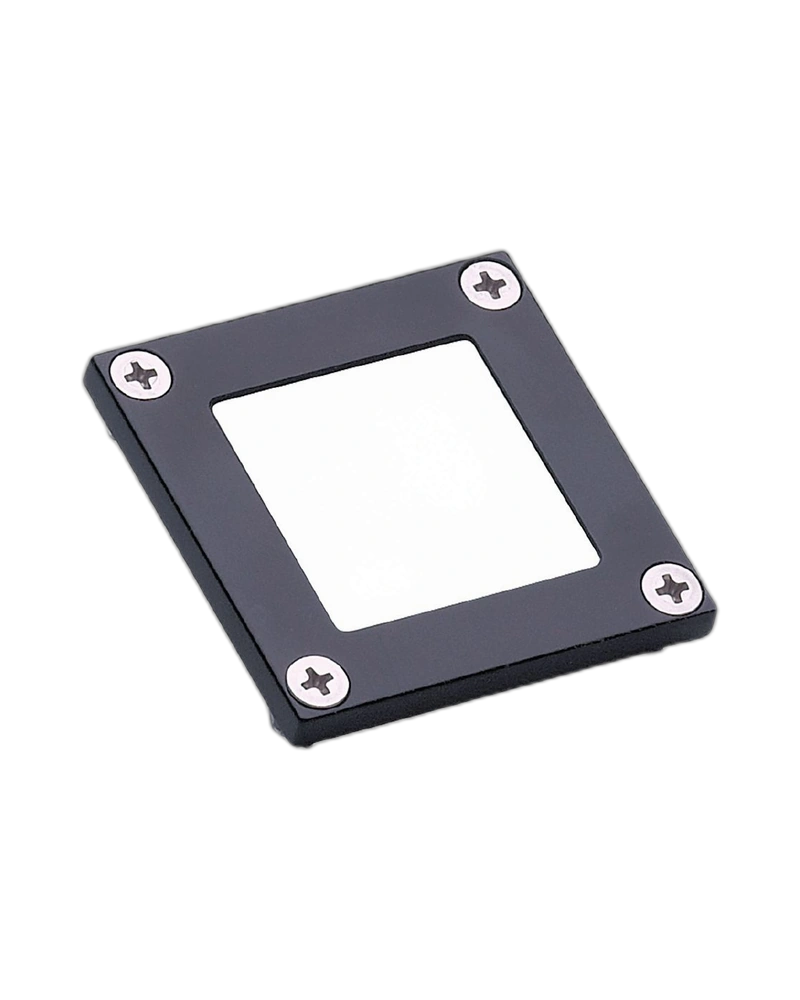

The IFM E21133 is a protective cover designed for O1D optical distance sensors. It provides additional protection to the sensor front pane against contamination, impact and mechanical damage. The compact 42 × 4.6 × 42 mm design enables convenient installation without adding significant bulk. The cover uses a black die-cast zinc bezel, transparent PMMA front pane and FPM sealing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The protective cover helps protect the front optical area of compatible O1D sensors from environmental contamination and accidental mechanical contact. This can help maintain reliable sensing performance in industrial environments where dust, dirt or impacts may occur.
The bezel is manufactured from black-finished die-cast zinc, while the front pane uses transparent PMMA. An FPM seal provides additional protection around the cover assembly. Stainless-steel screws are supplied for installation.
The compact 42 × 4.6 × 42 mm dimensions make the E21133 suitable for installations where space is limited. Its dedicated design provides a practical protection solution for compatible O1D sensors.
Protective cover for O1D sensors
Compact 42 × 4.6 × 42 mm design
Black die-cast zinc bezel
Transparent PMMA front pane
FPM sealing material
Stainless-steel mounting screws
Helps protect against dirt and mechanical damage
Pack supplied with mounting screws
Optical distance sensor protection
Industrial automation systems
Machine vision and sensing installations
Factory production equipment
Dust-prone industrial environments
Sensor installations requiring additional front protection
| Specification | Details |
|---|---|
| Product Code | E21133 |
| Product Type | Protective cover |
| Model | MASKING FRAME FOR O1D |
| Dimensions | 42 × 4.6 × 42 mm |
| Bezel Material | Die-cast zinc, black finish |
| Front Pane Material | PMMA, transparent and uncoloured |
| Seal Material | FPM, 75 ±5 Shore A |
| Screw Material | Stainless steel |
| Supplied Screws | 4 × M3 × 8 mm |
| Weight | 36.2 g |
| Pack Quantity | 1 piece |
| Compatible Sensor Family | O1D |
| Important Note | Measured distance may change by up to +5 mm |
