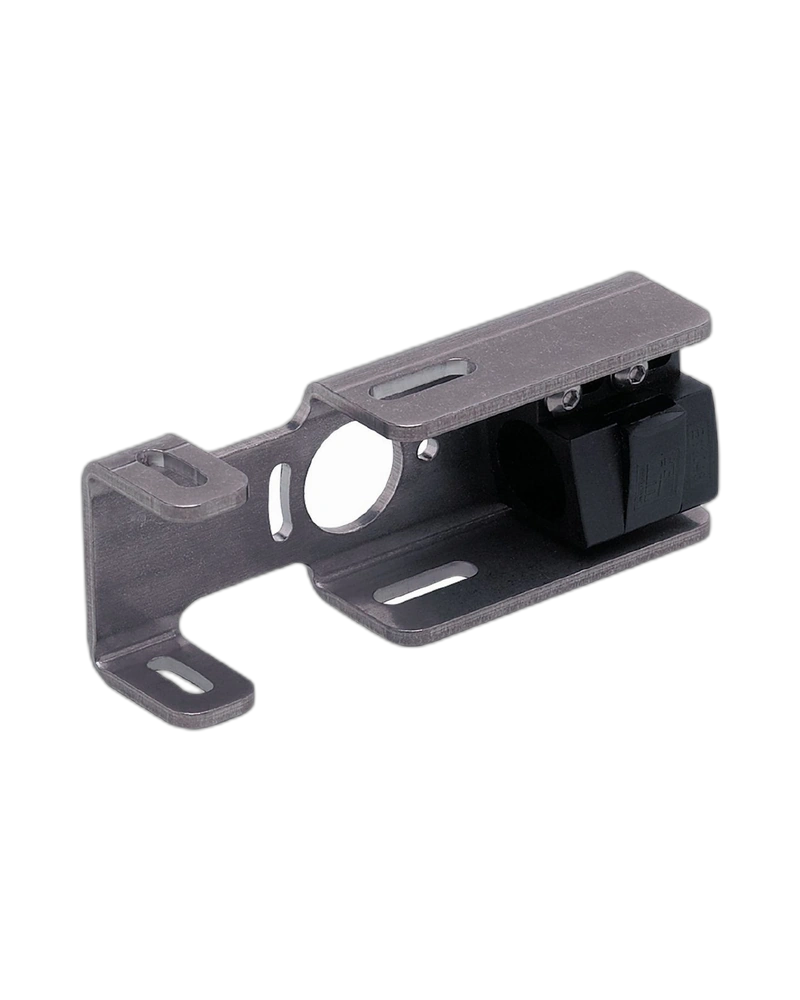

The IFM E21126 is an OG protective bracket designed for free-standing and rod mounting of compatible sensors. It provides mechanical protection while allowing the sensor to be securely positioned using a mounting clamp. The bracket features an end stop and an elongated opening for access to operating elements. It combines a black PC mounting clamp with a stainless steel 316L / 1.4404 angle bracket for durable construction. The 27 × 40 × 110 mm design and 18 mm internal diameter provide a compact protective mounting solution for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21126 provides physical protection for compatible OG sensors during industrial operation. Its protective bracket helps reduce the possibility of damage caused by accidental mechanical contact. The end-stop design provides additional positioning support. This makes the product useful in machinery where sensors are installed in exposed locations. The protective structure helps maintain secure sensor installation.
The E21126 supports both free-standing and rod-related mounting applications. Its clamp arrangement provides flexibility when integrating the sensor into machine structures. The mounting clamp allows the bracket to be positioned according to installation requirements. This makes it useful for different automation equipment configurations. The design also supports convenient adjustment during machine setup.
The mounting clamp is manufactured from black PC, while the angle bracket uses stainless steel 316L / 1.4404. The stainless-steel bracket provides mechanical strength and durability. The PC clamp provides a lightweight mounting interface. The combination creates a practical protective assembly for industrial applications. Its robust construction supports long-term use.
OG protective bracket rod
Protective cover design
Free-standing mounting
Rod mounting capability
End-stop design
18 mm internal diameter
Stainless steel 316L / 1.4404 bracket
Black PC mounting clamp
OG sensor protection
Industrial automation
Machine-building systems
Factory automation
Production machinery
Material handling equipment
Exposed sensor installations
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21126 |
| Product Type | Protective Cover |
| Product Name | OG PROTECTIVE BRACKET ROD |
| Product Category | Device Protection |
| Compatible Sensor Type | OG |
| Mounting Type | Clamp mounting |
| Mounting Configuration | Free-standing and rod mounting |
| Design | With end stop |
| Dimensions | 27 × 40 × 110 mm |
| Inside Diameter | 18 mm |
| Clamp Material | PC |
| Clamp Colour | Black |
| Angle Bracket Material | Stainless steel |
| Material Grade | 316L / 1.4404 |
| Weight | Approx. 192.5 g |
| Protective Function | Sensor impact protection |
| Operating Access | Elongated opening for operating elements |
| Application | Industrial sensor protection |
| Construction | Protective bracket with mounting clamp |
| Pack Quantity | 1 pc |
| Manufacturer | ifm electronic |
