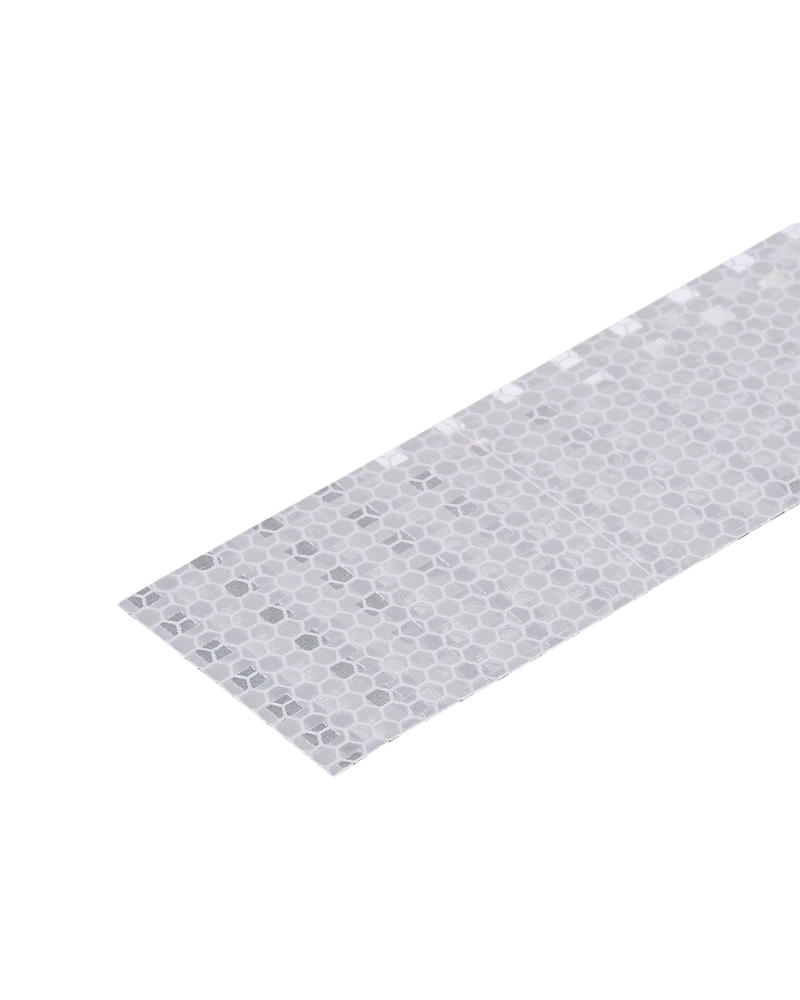

E21015 is a reflective tape designed for use with red-light and infrared-light retro-reflective sensors. It provides a flexible reflective surface that can be applied where conventional rigid reflectors may not be suitable. The tape measures 50 x 1000 x 0.4 mm and is manufactured using plastic and acrylic materials. Its compact format makes it suitable for customized reflector arrangements in industrial sensing applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21015 provides a dedicated reflective surface for retro-reflective photoelectric sensors using red or infrared light. The tape format allows the reflective material to be applied to suitable surfaces according to the application requirement. This provides flexibility when a conventional reflector cannot be easily installed. Its 50 mm width provides a useful reflective area for sensor applications. The 1 metre length allows the tape to be cut or positioned according to the installation need. This makes it suitable for customized sensing arrangements.
The tape format offers greater flexibility compared with fixed-size reflector components. It can be applied to appropriate clean surfaces where a reflective sensing target is required. The compact 0.4 mm thickness helps maintain a low-profile installation. This can be useful in machinery where installation space is restricted. The tape can support practical sensor alignment across different machine layouts. It is therefore useful for industrial applications requiring flexible reflective targets.
E21015 uses plastic and acrylic materials and has dimensions of 50 x 1000 x 0.4 mm. The specified ambient temperature range is -25 to 65°C continuously, with brief operation up to 80°C for 30 minutes. The specified bonding temperature is +16 to +25°C. These conditions should be considered when selecting the tape for an application. Proper surface preparation can also help achieve reliable adhesion. The product is supplied as one piece per pack.
Reflection tape TS-02/1M
Suitable for red-light sensors
Suitable for infrared-light retro-reflective sensors
50 mm width
1000 mm length
0.4 mm thickness
Plastic and acrylic construction
Flexible low-profile reflective solution
Retro-reflective photoelectric sensors
Object detection systems
Conveyor systems
Packaging machinery
Industrial automation
Material handling
Machine detection applications
| Specification | Details |
|---|---|
| Product Code | E21015 |
| Product Type | Reflective Tape |
| Product Design | Reflection Tape TS-02/1M |
| Sensor Compatibility | Red light and infrared light retro-reflective sensors |
| Dimensions | 50 x 1000 x 0.4 mm |
| Reflective Surface | 50 x 1000 mm |
| Material | Plastic, acrylic |
| Ambient Temperature | -25 to 65°C |
| Short-Term Temperature | Up to 80°C for 30 minutes |
| Bonding Temperature | +16 to +25°C |
| Weight | 23 g |
| Pack Quantity | 1 piece |
