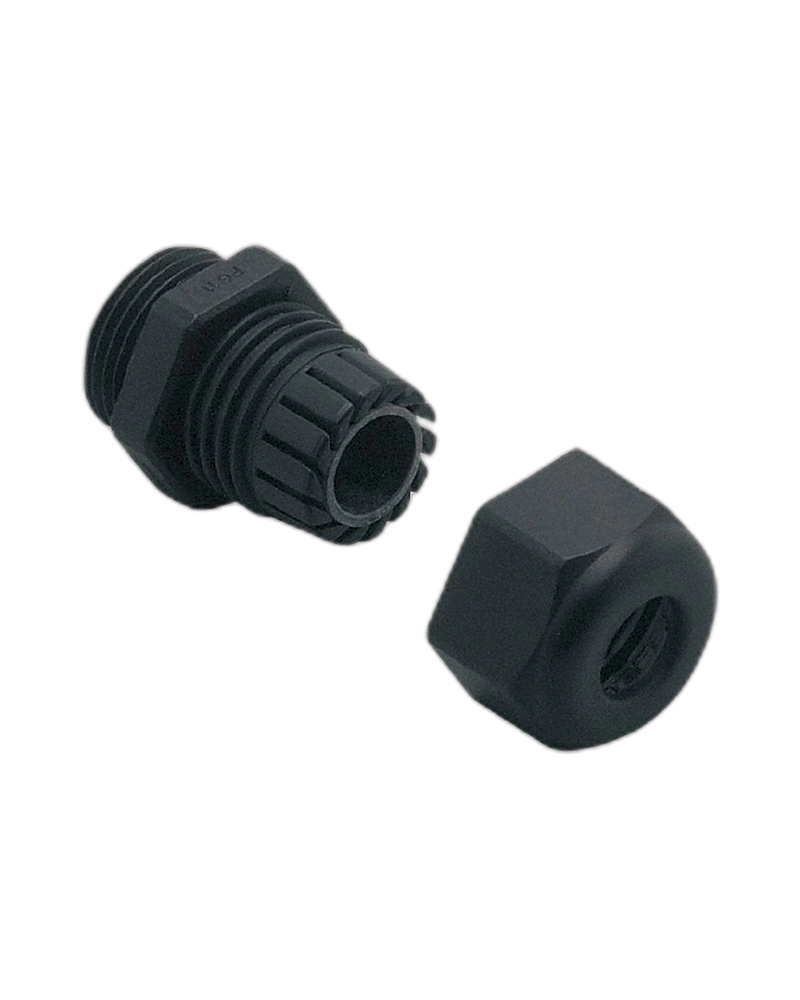

E21010 is an M20 x 1.5 cable gland designed to provide secure cable entry and sealing in industrial electrical installations. It supports cable diameters from approximately 5 to 10 mm and uses a polyamide housing with neoprene sealing. The compact design helps protect cable entry points from mechanical and environmental stresses. Its operating temperature range of -25 to 100°C makes it suitable for a wide range of industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21010 cable gland provides a reliable interface between cables and electrical enclosures or equipment. Its M20 x 1.5 thread enables convenient installation into compatible threaded cable-entry points. The gland helps hold the cable securely while providing sealing around the cable surface. It is designed for cable diameters in the 5 to 10 mm range. This makes it suitable for common industrial control and automation cables. Its compact construction supports neat and organized cable routing.
A dependable cable gland helps reduce the risk of unwanted movement and exposure at cable-entry points. E21010 uses a neoprene sealing element to provide cable sealing around the entry area. The black polyamide housing offers a practical and lightweight construction. The design supports stable cable positioning within industrial enclosures. It can help maintain a clean and secure cable installation. This makes the component useful for control cabinets, sensors and automation equipment.
E21010 is designed to operate across an ambient temperature range of -25 to 100°C. Its compact dimensions make it suitable for installations where available space around cable entries is limited. The M20 x 1.5 thread supports standardized mechanical integration with compatible equipment. The cable gland weighs approximately 12.2 g, keeping the assembly lightweight. It is supplied as one piece per pack. These characteristics make it suitable for general industrial cable-management requirements.
M20 x 1.5 cable gland
Cable diameter range of 5–10 mm
Polyamide black housing
Neoprene sealing material
Compact construction
Operating temperature -25 to 100°C
Lightweight design
Pack quantity of 1 piece
Industrial control panels
Automation cabinets
Sensor installations
Machine wiring
Electrical enclosures
Factory automation systems
Industrial cable entry applications
| Specification | Details |
|---|---|
| Product Code | E21010 |
| Product Type | Cable Gland |
| Product Design | Cable Gland M20 SKINTOP |
| Thread | M20 x 1.5 |
| Cable Diameter | 5–10 mm |
| Housing Material | Polyamide, black |
| Sealing Material | Neoprene |
| Ambient Temperature | -25 to 100°C |
| Dimensions | A: 28 mm, B: 5–10 mm, C: 25 mm, D: M20 x 1.5, E: 38 mm, F: 17 mm |
| Weight | Approx. 12.2 g |
| Pack Quantity | 1 piece |
