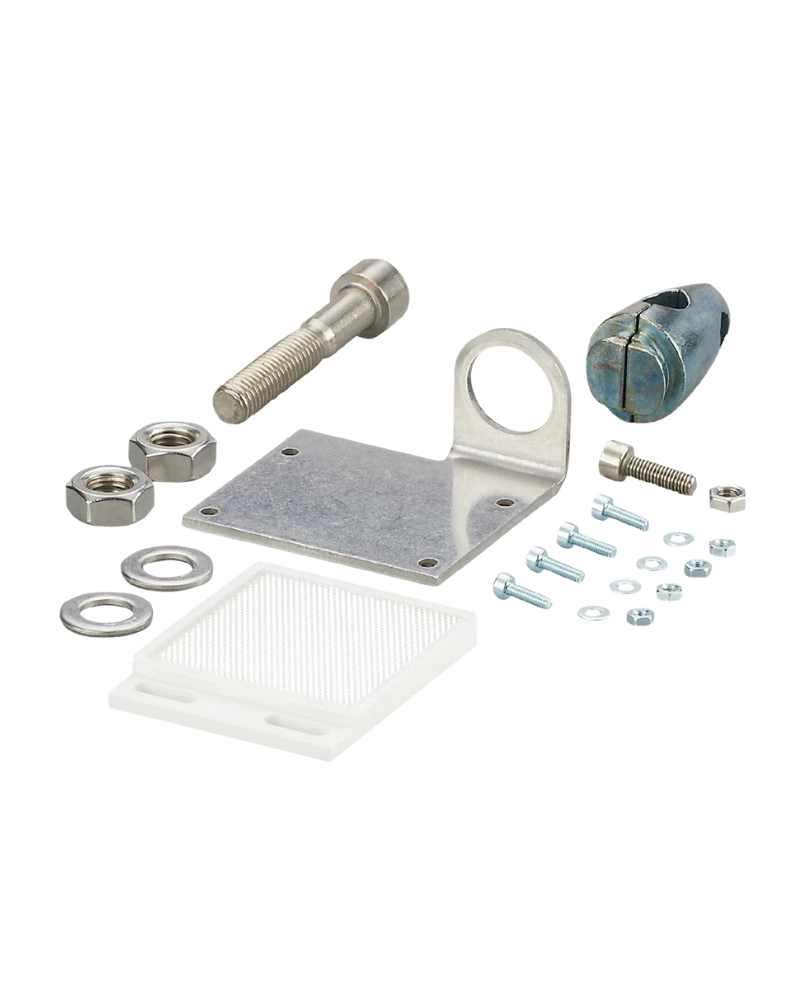

E21001 is a complete mounting set developed for secure reflector installation in industrial photoelectric sensing systems. It features clamp mounting and free-standing M10 installation for flexible positioning. The stainless-steel fixture combined with a diecast zinc clamp provides a durable mechanical solution. Its adjustable design supports accurate reflector alignment for dependable object detection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21001 is designed to simplify the mechanical installation of reflectors used with retro-reflective photoelectric sensors. The clamp mounting arrangement provides a secure connection while allowing the reflector to be positioned accurately. Its free-standing M10 mounting configuration is suitable for a variety of industrial machine structures. The design supports convenient installation and adjustment during sensor commissioning. It helps reduce the complexity associated with conventional reflector mounting. This makes it suitable for automated production and material handling systems.
The ability to position the reflector correctly is important for reliable optical detection. E21001 provides flexible adjustment to help align the reflector with the photoelectric sensor. The mounting design allows the reflector position to be changed according to the machine layout. This is useful when sensors and reflectors need precise alignment across conveyors or machine sections. The clamp mechanism supports straightforward installation and maintenance. It provides a practical mechanical solution for repeatable sensor positioning.
The fixture is made from stainless steel 1.4571/316Ti, while the clamp is manufactured from diecast zinc. These materials provide a strong and durable mounting arrangement for industrial applications. The product has a weight of approximately 261 g and is supplied with an M10 x 55 mm head cap screw. Its construction is designed for reliable mechanical fixing. The mounting set can therefore support continuous use in industrial automation environments. It is a useful accessory for dependable reflector-based sensing systems.
Complete reflector mounting set
Clamp mounting arrangement
Free-standing M10 mounting
Stainless-steel fixture
Diecast zinc clamp
Flexible reflector adjustment
Robust industrial construction
Supplied with M10 x 55 mm head cap screw
Retro-reflective sensor installations
Conveyor systems
Packaging machines
Material handling equipment
Object presence detection
Industrial automation systems
Machine positioning applications
| Specification | Details |
|---|---|
| Product Code | E21001 |
| Product Type | Mounting Set for Reflectors |
| Product Design | Clamp mounting, for reflector |
| Mounting Type | Free-standing M10 |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Diecast zinc |
| Weight | 261 g |
| Included Accessory | 1 × M10 x 55 mm head cap screw |
| Pack Quantity | 1 piece |
