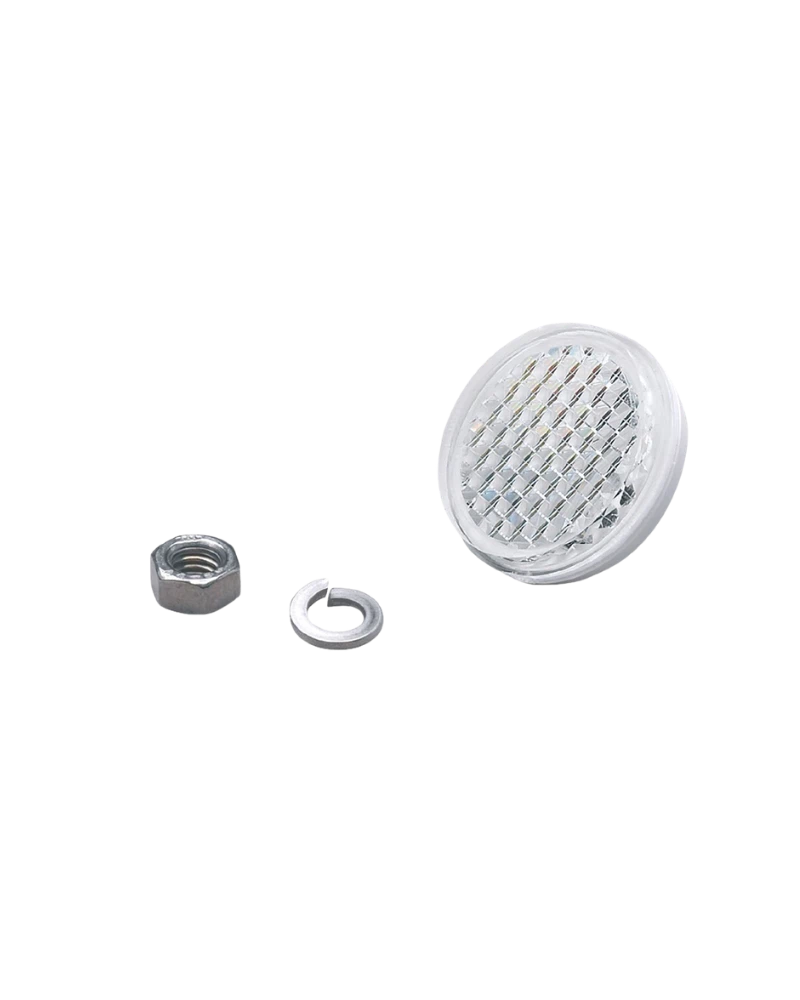

The E20954 TS-35 reflector is an optical accessory designed for compatible retro-reflective photoelectric sensors. It provides the reflective surface required to return the sensor's emitted light. The reflector supports reliable object and presence detection when correctly positioned. It is intended for industrial automation and machine sensing applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TS-35 operates as the passive optical target in a retro-reflective sensing system. It reflects light back toward the associated sensor to establish the normal sensing condition. When the beam is interrupted, the sensor can identify the presence of an object. This provides a practical method for automated detection.
The reflector must be correctly aligned with the sensor to provide a stable returned signal. Suitable mounting accessories can be used to position the reflector at the required point. Correct alignment contributes to consistent detection performance. This is particularly important on moving production equipment.
The reflector can be integrated into automated machinery where object presence or movement must be monitored. It can work with compatible photoelectric sensor systems used in production and material handling. The passive design means no separate electrical connection is required at the reflector. This simplifies installation.
The TS-35 is suitable for conveyor systems, packaging machines, assembly equipment, and production lines. It can support detection tasks where an optical path needs to be monitored. The reflector provides a simple and practical target for retro-reflective sensors. It is suitable for continuous industrial operation when correctly installed.
TS-35 reflector configuration
Designed for retro-reflective sensors
Passive optical component
Supports reliable object detection
No electrical connection at reflector
Suitable for automation systems
Supports accurate optical alignment
Useful for industrial photoelectric sensing
Object presence detection
Conveyor automation
Packaging machinery
Production equipment
Material handling
Assembly lines
Position monitoring
Photoelectric detection
| Specification | Details |
|---|---|
| Product Code | E20954 |
| Product Type | Reflector |
| Model | REFLECTOR TS-35 |
| Brand | IFM |
| Category | Automation and Controls |
| Subcategory | Accessories |
| Sensor Compatibility | Retro-Reflective Sensors |
| Function | Optical Reflection |
| Detection Type | Photoelectric |
| Reflector Series | TS-35 |
| Installation | Mechanical |
| Optical Path | Sensor to Reflector |
| Alignment | Required |
| Object Detection | Supported |
| Presence Detection | Supported |
| Electrical Connection | Not Required |
| Mounting | Compatible Accessories |
| Application | Industrial Automation |
| Construction | Industrial |
| Maintenance | Low |
| Machine Integration | Yes |
| Usage | Sensor Systems |
| Environment | Industrial |
| Status | Published |
| Product Identifier | E20954 |
