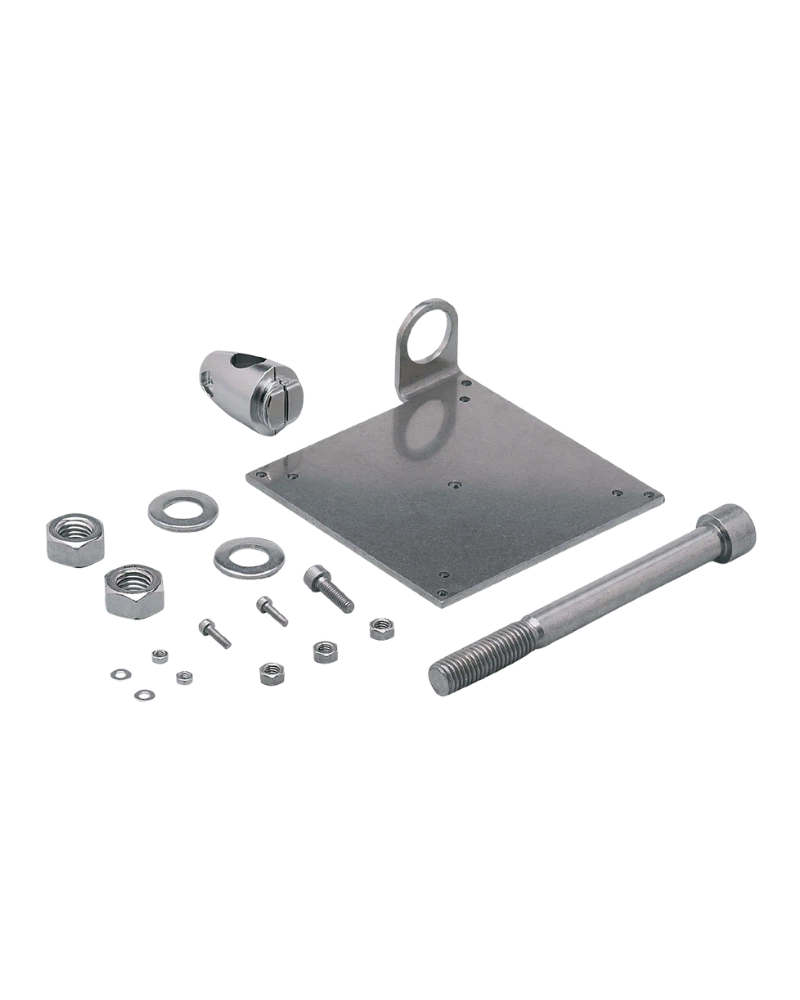

The E20935 is a heavy-duty reflector mounting set designed for 100 x 100 mm reflectors. It uses an M12 free-standing mounting configuration with stainless-steel components. The robust clamp arrangement provides stable reflector support and flexible optical positioning. It is designed for industrial photoelectric sensing installations where mechanical durability is important. The mounting set is supplied with an M12 x 120 mm screw.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20935 is designed for 100 x 100 mm reflector applications. Its robust construction provides stable mechanical support for the larger reflector size. The clamp mechanism helps maintain reflector position during machine operation. The mounting system also supports adjustment during optical alignment. This makes the product suitable for photoelectric sensing systems requiring a larger reflective target. It provides a practical mounting solution for industrial automation.
The fixture and clamp use stainless-steel materials. This provides a strong mechanical mounting structure for demanding industrial applications. The stainless-steel construction helps maintain mechanical stability during repeated adjustment and operation. It also provides a durable solution for machine-mounted reflector assemblies. The rigid construction supports reliable reflector positioning. This makes the E20935 suitable for long-term industrial installations.
The reflector must remain correctly aligned with the photoelectric sensor beam. The E20935 provides positioning flexibility to support this requirement. During commissioning, the reflector can be adjusted to the required optical position. This reduces alignment difficulties caused by machine tolerances. The mounting system also makes future adjustment easier during maintenance. It therefore supports reliable and repeatable reflective sensing.
The E20935 includes an M12 x 120 mm screw for mounting. The supplied hardware simplifies installation of the mounting assembly. Its free-standing arrangement provides flexibility when selecting the reflector location. The robust clamp supports secure mechanical retention. The assembly can be repositioned when required during machine modifications. This makes it useful for flexible industrial automation layouts.
Designed for 100 x 100 mm reflectors
Complete mounting set
M12 free-standing mounting
Stainless-steel fixture
Stainless-steel clamp
Robust reflector support
Flexible optical alignment
M12 x 120 screw included
Photoelectric sensor installations
Industrial conveyor systems
Packaging machinery
Material handling systems
Machine automation
Reflective object detection
| Specification | Details |
|---|---|
| Product Code | E20935 |
| Product Type | Mounting set |
| Product Family | E209 Series |
| Application | Reflector mounting |
| Reflector Size | 100 x 100 mm |
| Mounting Type | Clamp mounting |
| Installation | Free-standing |
| Thread Size | M12 |
| Included Screw | M12 x 120 mm |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Stainless steel 1.4408 |
| Weight | Approx. 510–512 g |
| Pack Quantity | 1 piece |
| Mechanical Function | Reflector support |
| Positioning | Adjustable |
| Alignment | Multi-directional |
| Accessory Type | Mounting accessory |
| Sensor Technology | Photoelectric |
| Application Environment | Industrial |
| Fixing Method | Clamp |
| Construction | Stainless-steel assembly |
| Maintenance | Repositionable |
| Brand | ifm electronic |
| Series | E209 |
