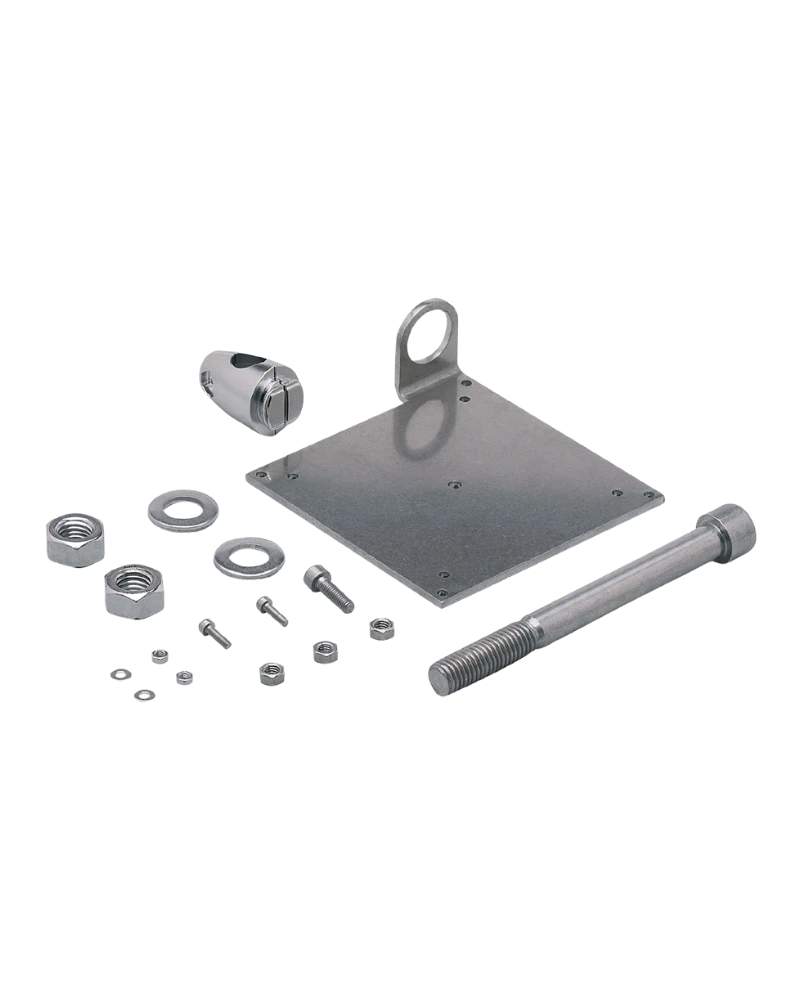

The E20934 is a reflector mounting set designed for 100 x 100 mm reflectors. It provides a clamp-mounting arrangement with an M12 fixing interface and free-standing installation. The stainless-steel fixture and die-cast zinc clamp provide robust mechanical support. Its flexible mounting arrangement makes reflector alignment easier during sensor commissioning. The set includes an M12 x 120 mm screw for installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20934 is designed specifically for larger 100 x 100 mm reflectors. Its mounting structure provides the necessary mechanical support for this reflector format. The clamp arrangement helps hold the reflector securely during operation. The design allows the reflector position to be adjusted during installation. This supports accurate alignment with the associated photoelectric sensor. It is suitable for larger reflective sensing applications.
The mounting fixture is manufactured from stainless steel, while the clamp uses die-cast zinc. This combination provides a robust mounting arrangement for industrial applications. The fixture provides structural support while the clamp securely retains the reflector. The construction is suitable for repeated installation and positioning adjustments. It is designed to provide reliable mechanical performance in automation environments. This makes the E20934 suitable for demanding reflector mounting tasks.
Accurate reflector positioning is essential for reliable reflective photoelectric sensing. The E20934 allows the reflector to be adjusted according to the sensor beam. This makes installation easier when the machine structure does not provide a perfectly aligned mounting position. Flexible positioning can reduce commissioning time. It also helps technicians make adjustments during servicing. The mounting arrangement therefore supports repeatable sensor alignment.
The E20934 is supplied with an M12 x 120 mm screw. This provides the necessary fixing hardware for the mounting assembly. The complete mounting solution helps simplify reflector installation. Its free-standing configuration provides flexibility when selecting the mounting position. The reflector can be repositioned without replacing the entire mounting arrangement. This makes the product practical for automation systems requiring adjustable reflector locations.
Designed for 100 x 100 mm reflectors
Complete reflector mounting set
M12 mounting interface
Free-standing mounting
Stainless-steel fixture
Die-cast zinc clamp
Flexible positioning
M12 x 120 screw included
Photoelectric sensing systems
Conveyor lines
Packaging equipment
Industrial automation
Material handling machinery
Reflective object detection
| Specification | Details |
|---|---|
| Product Code | E20934 |
| Product Type | Mounting set |
| Product Family | E209 Series |
| Application | Reflector mounting |
| Reflector Size | 100 x 100 mm |
| Mounting Type | Clamp mounting |
| Installation | Free-standing |
| Thread Size | M12 |
| Included Screw | M12 x 120 mm |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Die-cast zinc |
| Weight | Approx. 501 g |
| Pack Quantity | 1 piece |
| Mechanical Function | Reflector support |
| Positioning | Adjustable |
| Alignment | Multi-directional |
| Accessory Type | Mounting accessory |
| Sensor Technology | Photoelectric |
| Application Environment | Industrial |
| Fixing Method | Clamp |
| Construction | Industrial mechanical assembly |
| Maintenance | Repositionable |
| Brand | ifm electronic |
| Series | E209 |
