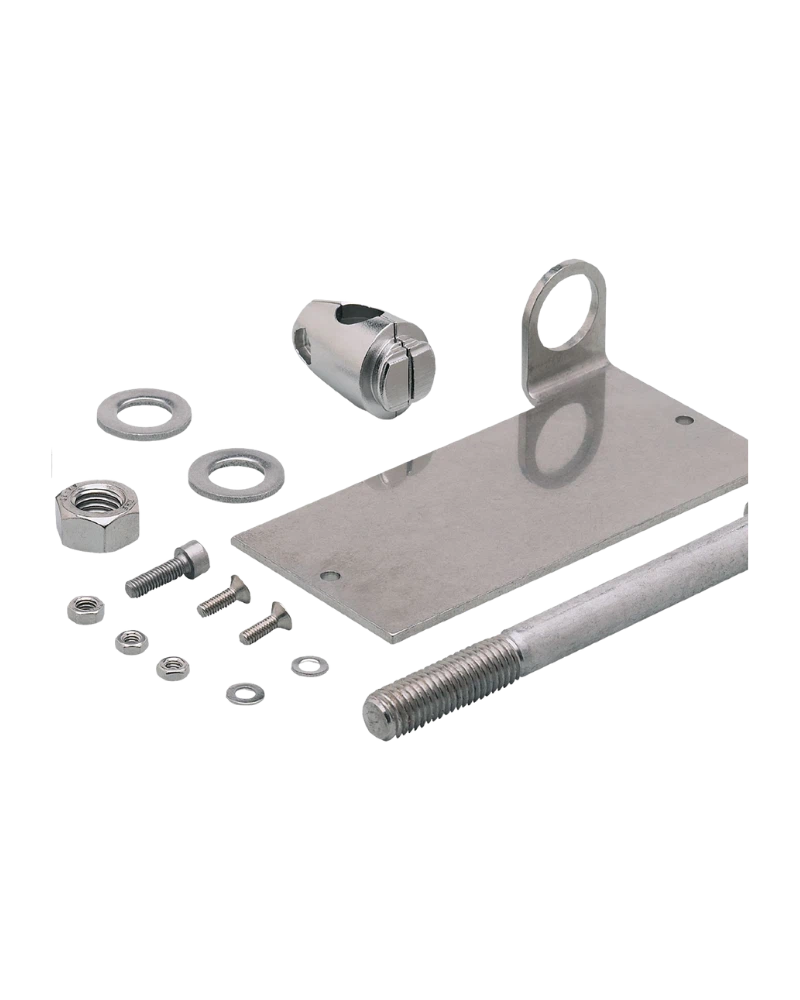

The E20931 is a reflector mounting set designed for 126 x 55 mm reflectors in industrial photoelectric sensing systems. It uses an M12 free-standing mounting configuration with stainless-steel construction. The design provides stable reflector support while allowing positioning during optical alignment. Its robust mechanical construction is suitable for demanding automation environments. An M12 x 120 mm screw is supplied for installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20931 is designed specifically for reflectors measuring 126 x 55 mm. The mounting arrangement provides secure support for the reflector during machine operation. Its clamp construction allows the reflector to be positioned according to the sensing beam. This makes it suitable for reflective photoelectric applications. The larger reflector format can be securely supported by the robust mounting structure. It is well suited to industrial automation installations.
The E20931 uses stainless-steel materials for its fixture and clamp. This provides a durable mechanical structure for industrial installations. The construction is suitable for environments where mounting components need to withstand regular adjustment and mechanical stress. Stainless-steel construction also supports long-term mechanical stability. The robust assembly helps keep the reflector securely positioned. This makes it suitable for continuous automation applications.
The mounting arrangement allows the reflector to be positioned in the required direction. This is important when establishing an accurate optical path between sensor and reflector. The free-standing mounting configuration provides flexibility when choosing the installation position. It can simplify commissioning when the sensor location is fixed but reflector position requires adjustment. The same flexibility can help during maintenance. The design therefore supports practical alignment of reflective sensing systems.
The E20931 includes an M12 x 120 mm screw for mounting. The supplied hardware simplifies installation and reduces the need for additional basic fixing components. The mechanical arrangement is suitable for robust industrial mounting. Its construction provides a stable support point for reflector installation. The complete set can help streamline sensor installation and servicing. It is suitable for applications requiring repeatable reflector positioning.
Designed for 126 x 55 mm reflectors
Complete reflector mounting set
M12 free-standing mounting
Stainless-steel fixture
Stainless-steel clamp
Robust industrial construction
Flexible reflector positioning
M12 x 120 screw included
Industrial photoelectric sensors
Conveyor systems
Packaging machinery
Material handling equipment
Object detection systems
Factory automation
| Specification | Details |
|---|---|
| Product Code | E20931 |
| Product Type | Mounting set |
| Product Family | E209 Series |
| Application | Reflector mounting |
| Reflector Size | 126 x 55 mm |
| Mounting Type | Clamp mounting |
| Installation | Free-standing |
| Thread Size | M12 |
| Included Screw | M12 x 120 mm |
| Fixture Material | Stainless steel 316Ti / 1.4571 |
| Clamp Material | Stainless steel 316C / 1.4408 |
| Weight | Approx. 439.5 g |
| Pack Quantity | 1 piece |
| Mechanical Function | Reflector support |
| Positioning | Adjustable |
| Alignment | Multi-directional |
| Accessory Type | Mounting accessory |
| Sensor Technology | Photoelectric |
| Application Environment | Industrial |
| Fixing Method | Clamp |
| Construction | Stainless-steel assembly |
| Maintenance | Repositionable |
| Brand | ifm electronic |
| Series | E209 |
