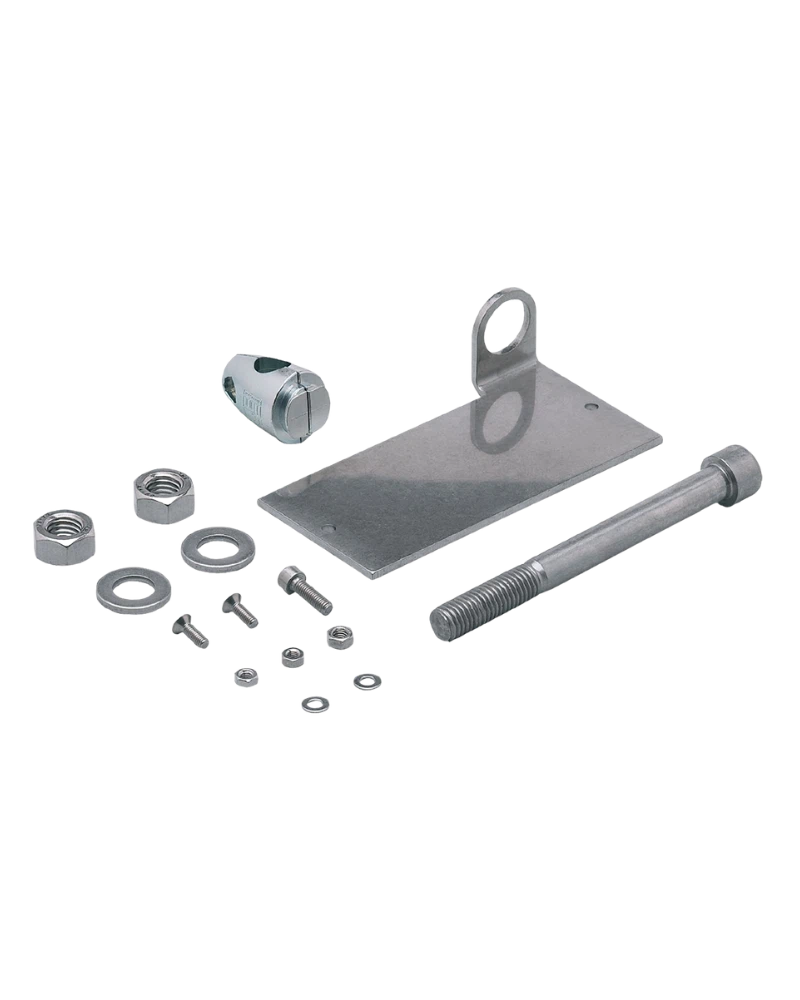

The E20930 is a reflector mounting set designed for 126 x 55 mm reflectors. It provides a robust mounting arrangement using an M12 fixing interface and a clamp-style construction. The design supports flexible reflector positioning for photoelectric sensing applications. Its stainless-steel fixture and die-cast zinc clamping component provide durable mechanical support. The set includes an M12 x 120 mm screw for installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20930 is designed for reflector applications measuring 126 x 55 mm. Its mounting structure provides stable support for the larger reflector format. The clamp arrangement helps retain the reflector securely during machine operation. The reflector can be positioned according to the required sensing path. This makes the product suitable for larger reflective targets. It provides a practical mechanical solution for industrial photoelectric systems.
The mounting set uses a stainless-steel fixture with a die-cast zinc clamping cylinder. This combination provides a strong mechanical mounting structure. The stainless-steel fixture supports durability in industrial applications. The die-cast zinc component provides firm reflector retention. The overall construction is suitable for repeated adjustment during installation. It provides a dependable support structure for reflective sensing.
Reflectors must be correctly aligned with the photoelectric sensor to achieve reliable detection. The E20930 allows positioning adjustment during installation. This helps installers compensate for variations in machine construction or sensor placement. The mounting configuration provides freedom to position the reflector according to the beam path. This can reduce commissioning effort. It also supports easier adjustment during maintenance.
The E20930 is supplied with an M12 x 120 mm screw. This provides a convenient fixing solution for the mounting assembly. The complete mounting arrangement reduces the need to select separate basic hardware. Its industrial construction supports regular installation and maintenance operations. The reflector can be repositioned when machine layouts change. This makes the mounting set suitable for flexible automation projects.
Designed for 126 x 55 mm reflectors
Complete reflector mounting set
M12 mounting interface
Clamp-style mounting
Stainless-steel fixture
Die-cast zinc clamping cylinder
Flexible reflector positioning
M12 x 120 screw included
Photoelectric sensor systems
Conveyor automation
Packaging machines
Material handling systems
Industrial object detection
Machine automation equipment
| Specification | Details |
|---|---|
| Product Code | E20930 |
| Product Type | Mounting set |
| Product Family | E209 Series |
| Application | Reflector mounting |
| Reflector Size | 126 x 55 mm |
| Mounting Type | Clamp / fixing-cylinder mounting |
| Installation | Surface mounting |
| Thread Size | M12 |
| Included Screw | M12 x 120 mm |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Die-cast zinc |
| Weight | Approx. 429 g |
| Pack Quantity | 1 piece |
| Mechanical Function | Reflector support |
| Positioning | Adjustable |
| Alignment | Multi-directional |
| Accessory Type | Mounting accessory |
| Sensor Technology | Photoelectric |
| Application Environment | Industrial |
| Fixing Method | Mechanical clamp |
| Construction | Industrial-duty assembly |
| Maintenance | Repositionable |
| Brand | ifm electronic |
| Series | E209 |
