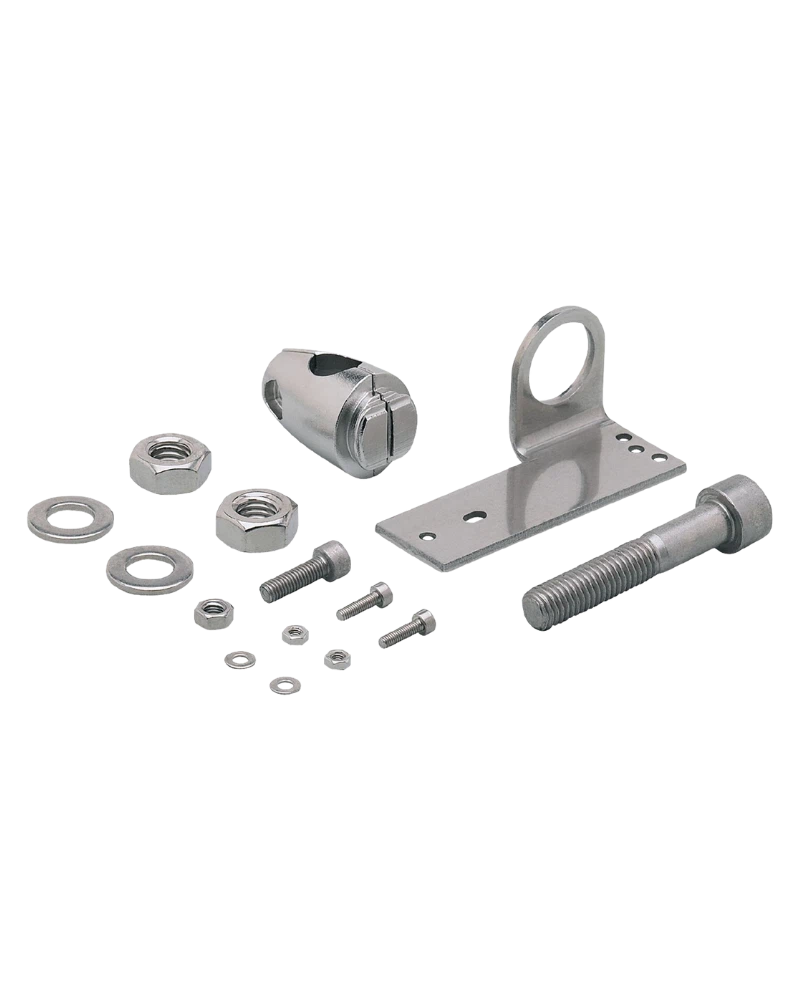

The E20927 is a heavy-duty reflector mounting set designed for 80 x 80 mm reflectors. It features an M12 free-standing mounting configuration with a robust stainless-steel fixture and clamp. The design supports stable reflector installation and accurate optical alignment. It is suitable for industrial photoelectric sensing systems where mechanical rigidity is important. An M12 x 120 screw is supplied with the mounting set.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20927 is designed to provide secure support for 80 x 80 mm reflectors. Its larger mounting interface makes it suitable for robust industrial installations. The clamp holds the reflector securely while allowing positioning during setup. This supports accurate alignment between the photoelectric sensor and reflector. The free-standing arrangement provides flexibility when selecting the installation location. It is a practical choice for larger reflector applications.
The fixture and clamp are manufactured using stainless-steel materials. This construction provides a strong mechanical mounting solution for industrial applications. Stainless steel is well suited to environments where durability and resistance to mechanical wear are important. The rigid structure helps maintain reflector position during machine operation. It also supports repeated adjustment during commissioning. This makes the E20927 suitable for demanding automation installations.
Correct reflector alignment is important for reliable photoelectric sensing. The E20927 allows the reflector to be positioned according to the sensor beam. The mounting configuration provides freedom for adjustment during commissioning. This can simplify the process of correcting small installation deviations. Stable positioning also helps maintain the intended sensing path during operation. The result is a more reliable mechanical setup for reflective sensing.
The E20927 is supplied with an M12 x 120 mm screw. This provides the primary fixing component required for mounting. The complete mounting arrangement reduces the need for additional basic hardware. Its free-standing configuration gives installers greater flexibility in machine layouts. The system can also be repositioned during maintenance when required. This supports efficient installation and servicing.
Designed for 80 x 80 mm reflectors
Heavy-duty mounting configuration
M12 free-standing mounting
Stainless-steel fixture
Stainless-steel clamp
Stable reflector positioning
Flexible optical alignment
M12 x 120 screw included
Industrial photoelectric sensing
Conveyor systems
Packaging machinery
Material handling equipment
Machine automation
Reflective object detection
| Specification | Details |
|---|---|
| Product Code | E20927 |
| Product Type | Mounting set |
| Product Family | E209 Series |
| Application | Reflector mounting |
| Reflector Size | 80 x 80 mm |
| Mounting Type | Clamp mounting |
| Installation | Free-standing |
| Thread Size | M12 |
| Included Screw | M12 x 120 mm |
| Fixture Material | Stainless steel 316Ti / 1.4571 |
| Clamp Material | Stainless steel |
| Weight | Approx. 0.441–0.450 kg |
| Pack Quantity | 1 piece |
| Mechanical Function | Reflector support |
| Positioning | Adjustable |
| Alignment | Multi-directional |
| Accessory Type | Mounting accessory |
| Sensor Technology | Photoelectric |
| Application Environment | Industrial |
| Fixing Method | Clamp |
| Construction | Stainless-steel assembly |
| Maintenance | Repositionable |
| Brand | ifm electronic |
| Series | E209 |
