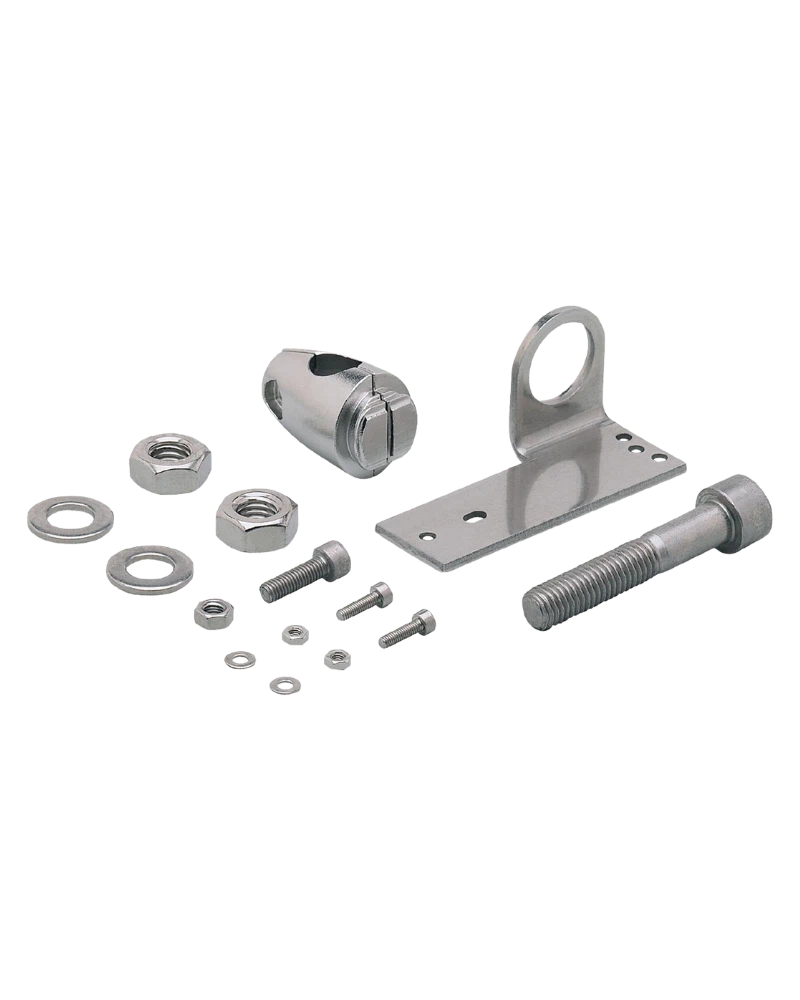

The E20926 is a reflector mounting set designed for mounting 80 x 80 mm reflectors in photoelectric sensing systems. It uses a clamp-mounting arrangement with an M12 interface and free-standing installation. The robust fixture and clamp construction provide stable reflector support for industrial automation applications. Its flexible positioning makes optical alignment easier during installation. The supplied M12 x 120 screw supports convenient assembly.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20926 is specifically designed around 80 x 80 mm reflector applications. The mounting arrangement provides a stable mechanical interface for larger reflector surfaces. Its clamp construction holds the reflector securely during operation. The design also allows positioning adjustments during commissioning. This is useful when precise optical alignment is required. It is therefore well suited to photoelectric sensing applications with larger reflector targets.
The clamp-mounting configuration provides a practical way to secure the reflector without requiring a complex bracket arrangement. The M12 interface offers a larger mechanical connection suited to the mounting assembly. The free-standing design provides flexibility when integrating the reflector into machine structures. The reflector can be positioned according to the sensor beam location. This helps simplify machine installation and adjustment. The design is particularly useful for industrial automation environments.
The E20926 uses a stainless-steel fixture combined with a die-cast zinc clamp. This material combination provides a strong mechanical mounting structure. The stainless-steel component supports durability in industrial environments. The clamp provides firm mechanical retention of the reflector. The construction is intended for reliable repeated use during installation and adjustment. It offers a practical balance between structural strength and installation convenience.
The mounting set includes an M12 x 120 mm screw for assembly. This makes the E20926 suitable as a ready-to-install mechanical accessory. The mounting design helps reduce the need for separately selected basic fixing components. Its flexible positioning supports faster optical alignment. The reflector can be adjusted according to the actual sensor installation position. This makes commissioning and maintenance more convenient.
Designed for 80 x 80 mm reflectors
Complete clamp mounting set
M12 mounting interface
Free-standing installation
Stainless-steel fixture
Die-cast zinc clamp
Flexible reflector positioning
M12 x 120 screw included
Photoelectric sensor installations
Reflective object detection
Conveyor systems
Packaging automation
Material handling machinery
Industrial sensing equipment
| Specification | Details |
|---|---|
| Product Code | E20926 |
| Product Type | Mounting set |
| Product Family | E209 Series |
| Application | Reflector mounting |
| Reflector Size | 80 x 80 mm |
| Mounting Type | Clamp mounting |
| Installation | Free-standing |
| Thread Interface | M12 |
| Included Screw | M12 x 120 mm |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Die-cast zinc |
| Weight | Approx. 434.5 g |
| Pack Quantity | 1 piece |
| Mechanical Function | Reflector support |
| Positioning | Adjustable |
| Alignment | Multi-directional |
| Accessory Type | Mounting accessory |
| Sensor Technology | Photoelectric |
| Application Environment | Industrial |
| Installation Function | Reflector fixation |
| Construction | Industrial mechanical assembly |
| Maintenance | Repositionable |
| Brand | ifm electronic |
| Series | E209 |
