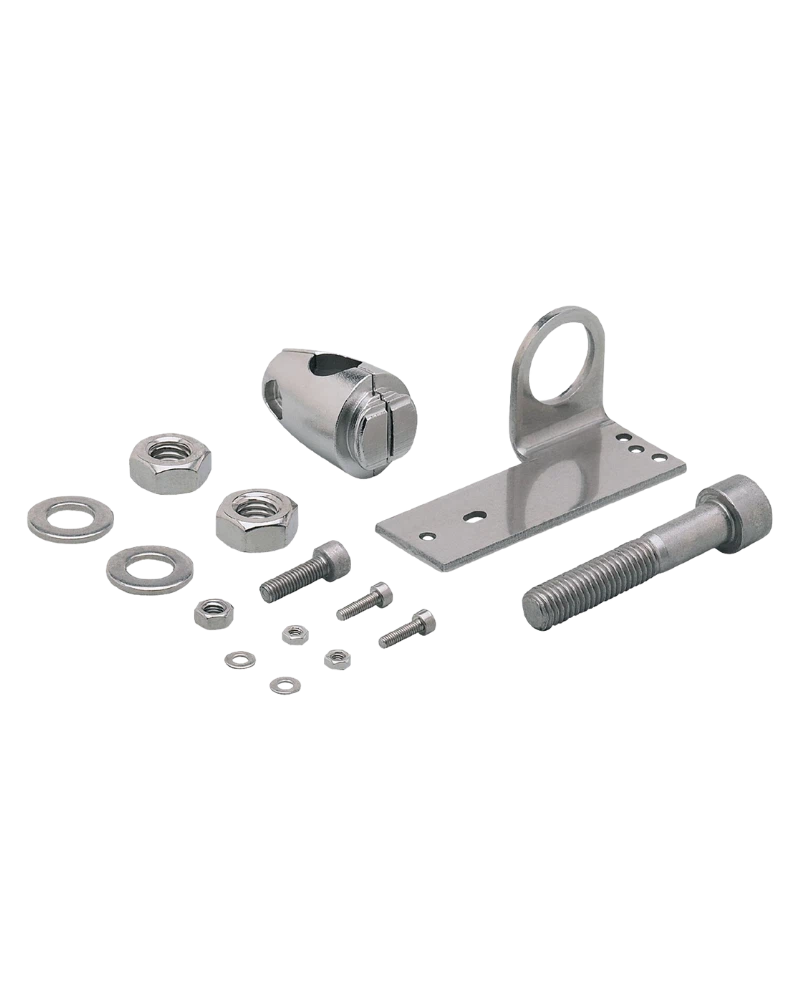

The E20923 is a reflector mounting set developed for secure installation and flexible positioning of photoelectric sensor reflectors. It uses a clamp-mounting arrangement with an M10 free-standing mounting interface. The stainless-steel construction provides dependable mechanical support for industrial automation equipment. Its design allows the reflector to be positioned accurately during sensor alignment. The set is supplied with the required mounting screw.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20923 is designed specifically for mounting reflectors used in photoelectric sensing applications. Its clamp mechanism provides a stable grip while allowing positioning during installation. The design supports reflectors with dimensions around 66 x 31 mm and 57.6 x 32.5 mm. This makes it suitable for compact reflective sensing arrangements. The mounting structure is intended for dependable industrial use. It provides a practical mechanical connection between the reflector and machine structure.
The fixture and clamp use stainless-steel construction for improved mechanical durability. This construction is useful in automation environments where mounting components may experience vibration or repeated adjustment. The material selection also provides a robust mechanical interface for reflector positioning. The mounting hardware is designed for long-term industrial operation. Its compact construction keeps the assembly practical for machine installations. This combination makes it suitable for demanding sensing applications.
The mounting system allows the reflector to be moved and positioned during setup. This is useful when the sensor beam requires accurate alignment with the reflector. Adjustable positioning can simplify commissioning and reduce the need for additional mounting brackets. The free-standing configuration provides installation flexibility. It also allows installers to select a suitable reflector position based on the machine layout. This makes alignment easier during sensor installation and maintenance.
The E20923 is supplied as a complete mounting set for convenient installation. The included M10 x 55 head cap screw helps simplify assembly. Its mounting configuration is suitable for direct integration into automation equipment. The compact design supports installations where available space is limited. The mounting set can also make reflector replacement easier during maintenance. It provides a practical solution for repeatable reflector installation.
Complete reflector mounting set
Clamp mounting design
M10 free-standing mounting
Stainless-steel fixture
Stainless-steel clamp
Compatible with compact reflectors
Flexible reflector positioning
M10 x 55 screw included
Photoelectric sensor systems
Reflective object detection
Conveyor automation
Packaging machines
Material handling systems
Industrial machine sensing
| Specification | Details |
|---|---|
| Product Code | E20923 |
| Product Type | Mounting set |
| Product Family | E209 Series |
| Application | Reflector mounting |
| Mounting Type | Clamp mounting |
| Installation | Free-standing |
| Thread Size | M10 |
| Reflector Size | 66 x 31 mm / 57.6 x 32.5 mm |
| Included Screw | M10 x 55 |
| Fixture Material | Stainless steel 316Ti / 1.4571 |
| Clamp Material | Stainless steel 316C |
| Weight | Approx. 223 g |
| Pack Quantity | 1 piece |
| Adjustment | Multi-directional |
| Mechanical Function | Reflector support |
| Accessory Type | Mounting accessory |
| Sensor Compatibility | Photoelectric sensing |
| Application Environment | Industrial |
| Installation Method | Clamp fixation |
| Alignment Function | Reflector alignment |
| Construction | Stainless-steel assembly |
| Maintenance | Adjustable positioning |
| Brand | ifm electronic |
| Series | E209 |
