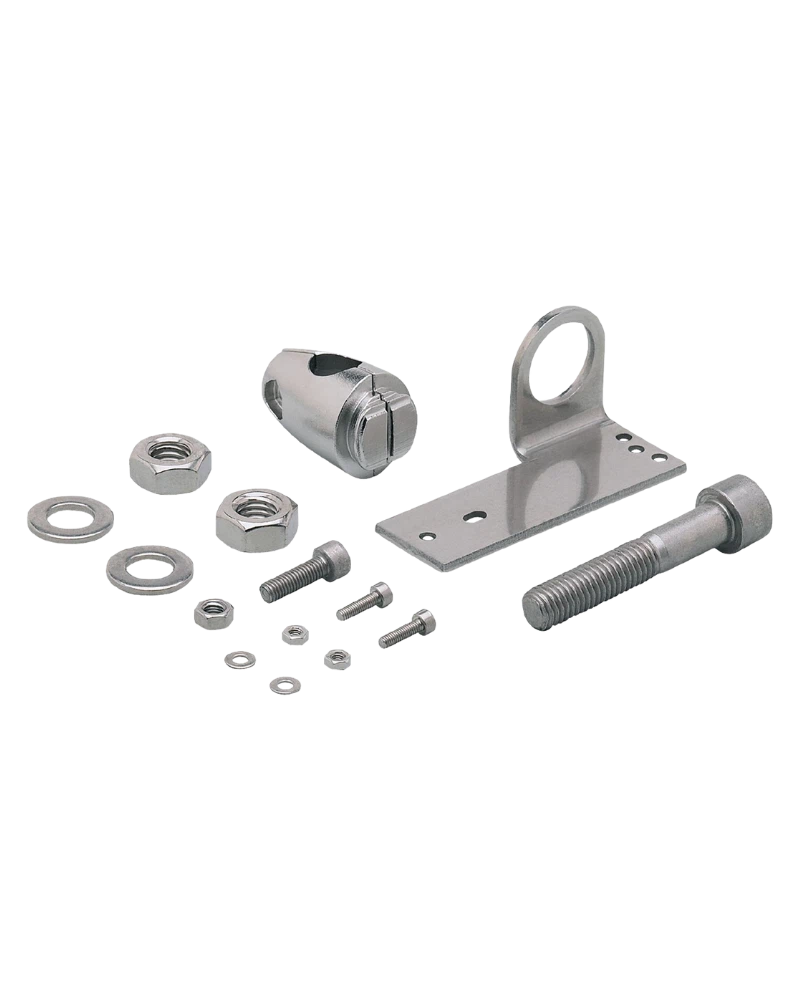

The E20922 is a mounting set designed for secure positioning of reflectors used with photoelectric sensing systems. It provides a practical clamp-mounting solution with flexible reflector positioning. The robust construction is suitable for industrial environments where stable and repeatable reflector alignment is important. Its compact mounting arrangement supports straightforward installation and adjustment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20922 provides a complete mounting arrangement for reflector installation. Its clamp-based construction allows the reflector to be held securely while still permitting positioning adjustments. This makes alignment easier during sensor commissioning and maintenance. The mounting arrangement is suitable for applications where reflector orientation needs to be adjusted accurately. The stainless-steel fixture provides mechanical durability for industrial use. It is particularly useful in photoelectric sensing installations requiring stable reflector positioning.
The mounting design allows the reflector to be moved in different directions during setup. This flexibility helps installers achieve the required optical alignment without repeatedly replacing the mounting hardware. The arrangement is useful where sensor and reflector positions vary between machine layouts. It can simplify commissioning work on conveyors, handling equipment and automation machinery. Fine positioning also helps maintain consistent sensing performance. The result is a more practical reflector installation process.
The mounting set uses durable mechanical components intended for industrial applications. Available specifications identify a stainless-steel fixture and a clamp construction suitable for demanding environments. The mounting arrangement is designed to provide dependable mechanical support during normal machine operation. Its construction helps resist mechanical wear associated with repeated positioning and adjustment. The compact form also makes it suitable for installations where mounting space is limited. This makes the E20922 a practical accessory for industrial photoelectric sensing systems.
The E20922 is supplied as a complete mounting solution rather than requiring a separate collection of basic mounting components. The included M10 screw supports straightforward assembly. Its free-standing mounting arrangement gives installers flexibility when positioning the reflector. The mounting system can reduce installation time during sensor setup. It is also useful when reflectors need to be repositioned during machine commissioning. Overall, it provides a simple mechanical interface between the reflector and mounting structure.
Complete mounting set for reflector installation
Clamp-based reflector mounting
Flexible reflector positioning
Compact industrial mounting arrangement
Stainless-steel fixture construction
Suitable for free-standing installation
Supports easier optical alignment
Supplied with M10 x 55 mounting screw
Photoelectric sensor reflector mounting
Industrial conveyor systems
Material handling equipment
Packaging machinery
Object detection systems
Machine automation installations
| Specification | Details |
|---|---|
| Product Code | E20922 |
| Product Type | Mounting set |
| Product Family | E209 Series |
| Product Category | Reflector mounting accessory |
| Application | Reflector mounting |
| Mounting Type | Clamp mounting |
| Installation Style | Free-standing / surface mounting |
| Reflector Compatibility | 66 x 31 mm / 57.6 x 32.5 mm |
| Thread Size | M10 |
| Included Screw | M10 x 55 |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Die-cast zinc |
| Weight | Approx. 221.5 g |
| Pack Quantity | 1 piece |
| Mechanical Function | Reflector positioning |
| Adjustment | Multi-directional positioning |
| Intended Use | Industrial automation |
| Sensor Technology | Photoelectric sensing |
| Accessory Type | Mounting hardware |
| Installation Requirement | Suitable mounting surface/support |
| Alignment Function | Reflector alignment |
| Construction | Industrial-duty mechanical assembly |
| Maintenance | Position adjustment possible |
| Brand | ifm electronic |
| Series | E209 |
