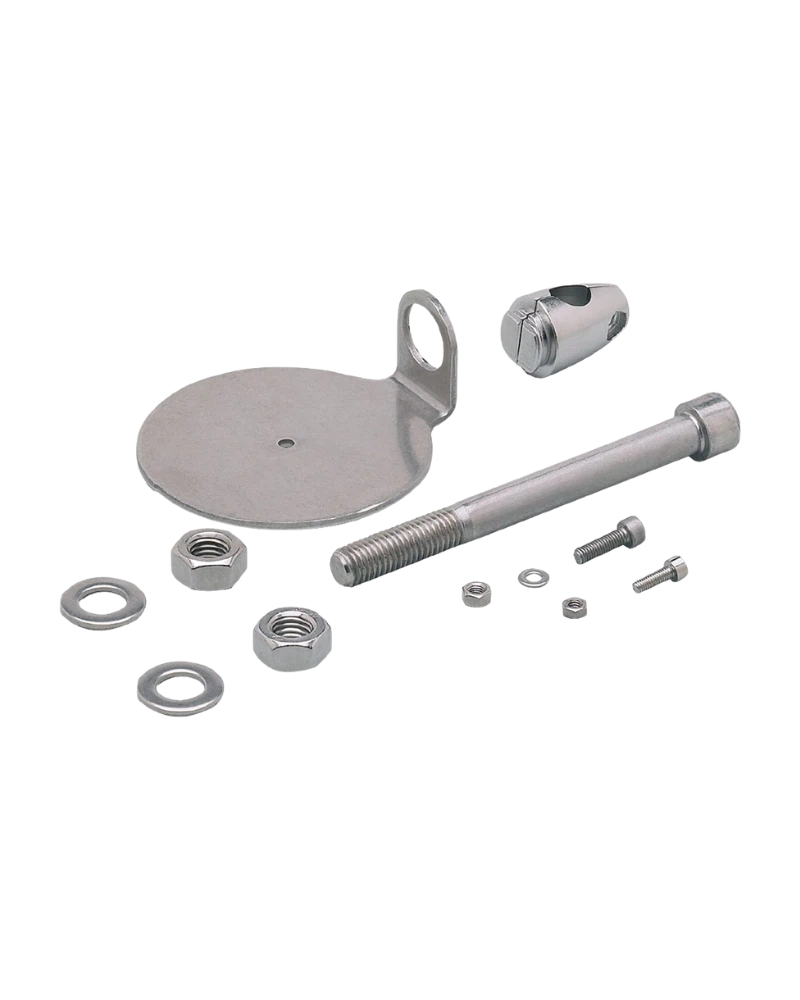

The E20914 System Component REFL Bolt is a mechanical mounting accessory for compatible photoelectric reflectors. Its bolt-based configuration provides a stable fixing arrangement for industrial sensing installations. The accessory helps maintain reflector alignment and supports consistent optical detection. It is suitable for automated machinery, production equipment and photoelectric object detection systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20914 provides a structured mechanical solution for reflector mounting. Its bolt configuration supports secure attachment to compatible machine structures. Proper fixing helps prevent unwanted movement of the reflector. This is important for maintaining the intended optical sensing path. The accessory can simplify installation during machine assembly and servicing.
Reliable retro-reflective sensing requires stable reflector alignment. The E20914 helps maintain the reflector in the selected position after installation. During setup, technicians can align the reflector relative to the compatible photoelectric sensor. The mounting arrangement then helps preserve that alignment. This contributes to consistent sensing conditions during machine operation.
The component is intended for automation systems using compatible photoelectric reflectors. It can be used in conveyor systems, production machines and automated material handling equipment. The accessory provides mechanical support rather than sensing functionality. It works together with the reflector and photoelectric sensor. Its straightforward design makes it suitable for machine builders and maintenance teams.
Key Features / Benefits
REFL system component
Bolt mounting design
Stable reflector fixation
Supports optical alignment
Suitable for industrial automation
Useful for machine installation
Supports maintenance and replacement
Practical mechanical accessory
Applications
Retro-reflective sensing
Reflector mounting
Object detection
Conveyor systems
Production automation
Material handling
Industrial machinery
Sensor system maintenance
| Parameter | Specification |
|---|---|
| Product Code | E20914 |
| Product Type | Mounting Set |
| Product Family | System Component |
| Application | Reflector Mounting |
| Mounting Type | Bolt |
| Component Designation | REFL |
| Sensor System | Photoelectric |
| Brand | IFM |
| Product Category | Accessories |
| System Category | Automation and Controls |
| Mechanical Function | Reflector Fixing |
| Installation | Mechanical |
| Adjustment | Positioning |
| Positioning | Application Dependent |
| Connection | Mechanical |
| Mounting Method | Bolt Fixing |
| Reflector Compatibility | Compatible IFM Reflectors |
| Orientation | Application Dependent |
| Mounting Location | Machine Structure |
| Service Use | Installation / Maintenance |
| Environment | Industrial |
| Typical Use | Retro-reflective Sensing |
| Construction | Mounting Component |
| Dimensions | Not specified in source |
| Technical Data | Refer to manufacturer documentation |
