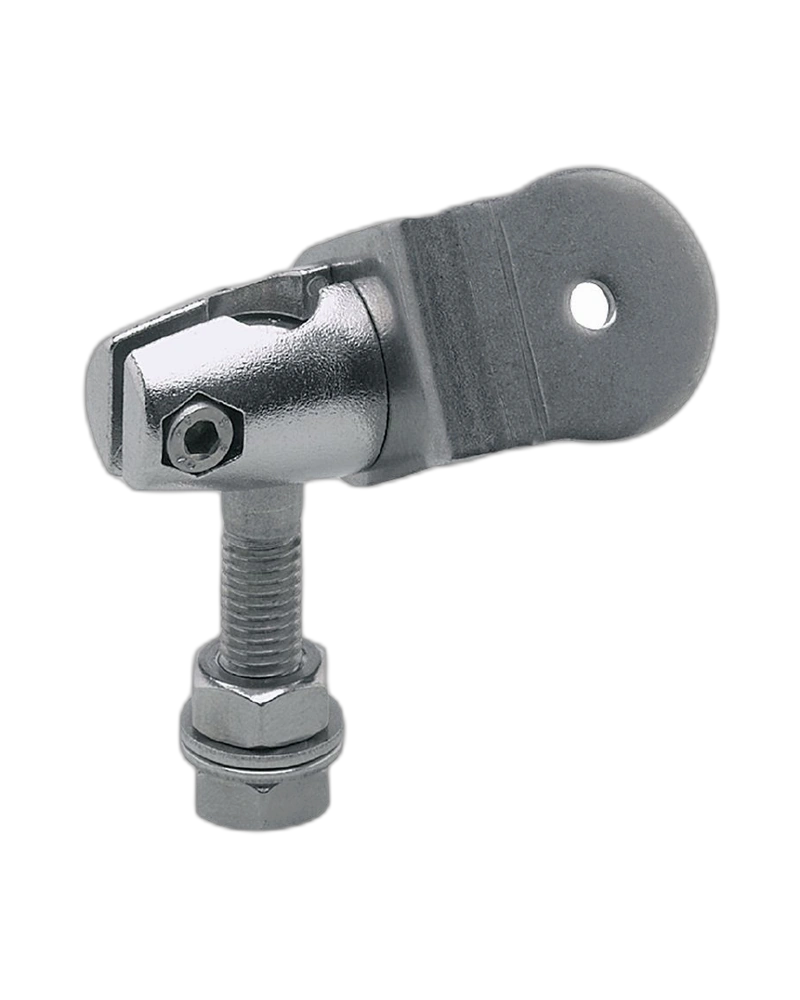

The E20902 System Component REFL Bolt is a mounting accessory intended for securing compatible reflectors used with photoelectric sensing systems. Its bolt-based configuration provides a stable mechanical fixing point for reflector installation. Proper reflector positioning is important for maintaining reliable sensor alignment. The component is suitable for industrial automation and photoelectric detection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20902 provides a dedicated mounting solution for compatible photoelectric reflectors. Its bolt configuration allows the reflector to be mechanically secured to a suitable machine structure. Stable reflector positioning helps maintain the intended optical path. The mounting arrangement supports practical installation in industrial equipment. It can also simplify replacement and adjustment during maintenance.
Reflectors need to remain correctly positioned relative to the photoelectric sensor. The mounting set supports controlled placement of the reflector within the sensing arrangement. A secure mechanical connection can reduce unwanted movement during machine operation. This helps maintain the intended reflection path. Accurate alignment can contribute to more consistent detection performance.
The E20902 is suitable for photoelectric automation systems where reflectors are used as part of the sensing arrangement. It can be incorporated into production machinery, conveyors and automated handling equipment. The accessory performs the mechanical mounting function while the reflector supports the optical sensing process. It is useful for machine builders and maintenance personnel. The component provides a practical installation solution for compatible reflectors.
Key Features / Benefits
REFL system component
Bolt mounting configuration
Designed for reflector installation
Supports stable reflector positioning
Helps maintain optical alignment
Suitable for photoelectric systems
Useful for maintenance
Industrial automation accessory
Applications
Retro-reflective sensing
Reflector mounting
Conveyor automation
Object detection systems
Production machinery
Industrial photoelectric systems
Sensor maintenance
Machine-building applications
| Parameter | Specification |
|---|---|
| Product Code | E20902 |
| Product Type | Mounting Set |
| Product Family | System Component |
| Application | Reflector Mounting |
| Mounting Type | Bolt |
| Component Designation | REFL |
| Sensor System | Photoelectric |
| Brand | IFM |
| Product Category | Accessories |
| System Category | Automation and Controls |
| Mechanical Function | Reflector Fixing |
| Installation | Mechanical |
| Adjustment | Positioning |
| Positioning | Application Dependent |
| Connection | Mechanical |
| Mounting Method | Bolt Fixing |
| Reflector Compatibility | Compatible IFM Reflectors |
| Orientation | Application Dependent |
| Mounting Location | Machine Structure |
| Service Use | Installation / Replacement |
| Environment | Industrial |
| Typical Use | Retro-reflective Sensing |
| Construction | Mounting Component |
| Dimensions | Not specified in source |
| Technical Data | Refer to manufacturer documentation |
