Introduction

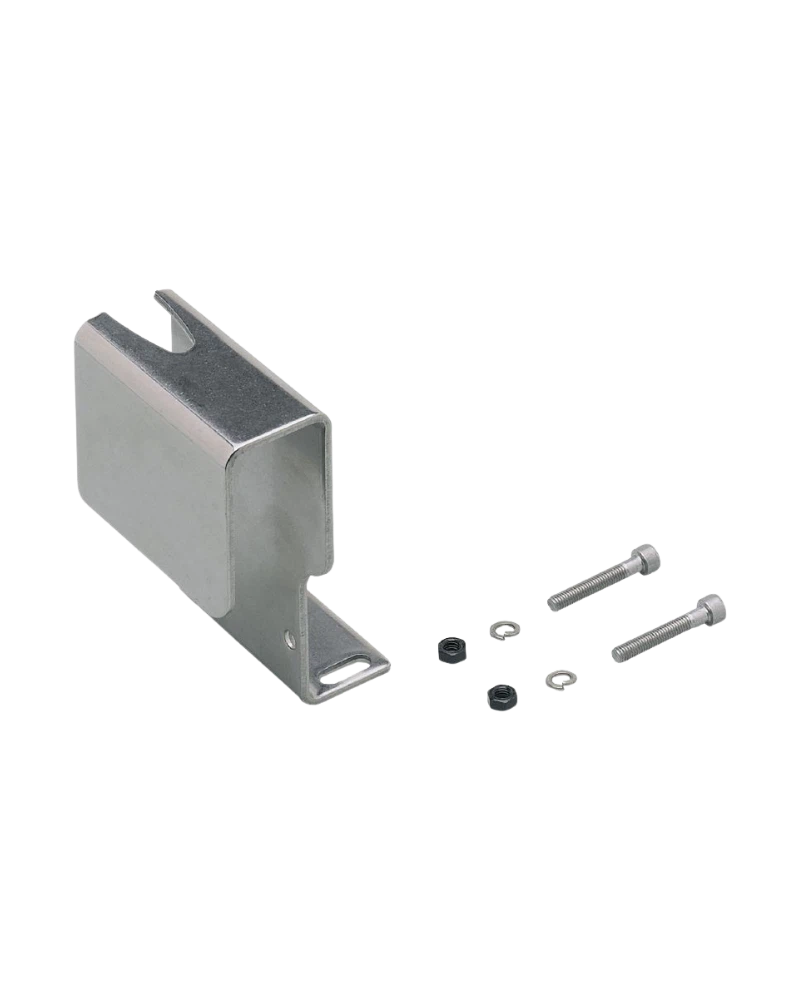

E20789 is an angle mounting accessory intended to assist with installation of compatible optical sensing equipment. The angled geometry allows the connected component to be positioned according to the machine layout. This is particularly useful where mounting surfaces do not provide the required orientation directly. The bracket provides mechanical support between the machine structure and sensor assembly. It can contribute to consistent sensor positioning in automated equipment.

Design & Functionality

The bracket uses an angled mounting arrangement to provide an alternative installation position. Its geometry helps accommodate sensor installation around machine frames and structural surfaces. Correct mounting hardware should be selected according to the connected sensor and machine construction. The accessory is designed to simplify mechanical integration without modifying the sensor itself. Proper alignment is important to achieve the intended sensing direction.

Benefits & Performance

An appropriate mounting bracket can reduce installation complexity and improve sensor positioning. The angled format provides additional flexibility when straight mounting is unsuitable. Repeatable mounting can help maintain stable sensor alignment during machine operation. It also supports cleaner integration of sensors into compact automation equipment. Performance depends on correct mounting, mechanical stability and compatibility with the intended sensor.

Installation & Industrial Use

The E20789 can be used in machine-building applications requiring angled sensor installation. It is suitable for production machinery, packaging equipment, conveyors and automated handling systems. The bracket should be firmly secured to a rigid machine surface. Sensor alignment should be checked after installation and during maintenance. Fasteners and mounting procedures should follow the requirements of the connected equipment.

Key Features

Large angle bracket design
Supports compatible sensor mounting
Angled positioning capability
Useful for restricted mounting locations
Simplifies mechanical integration
Supports repeatable sensor positioning
Suitable for industrial automation
Compact accessory solution
Useful for machine-building applications
Designed for sensor installation support

Applications

Sensor mounting
Photoelectric sensing systems
Industrial automation machinery
Packaging machines
Conveyor equipment
Material handling systems
Assembly machines
Machine frames
Restricted-space installations
Replacement and maintenance work
