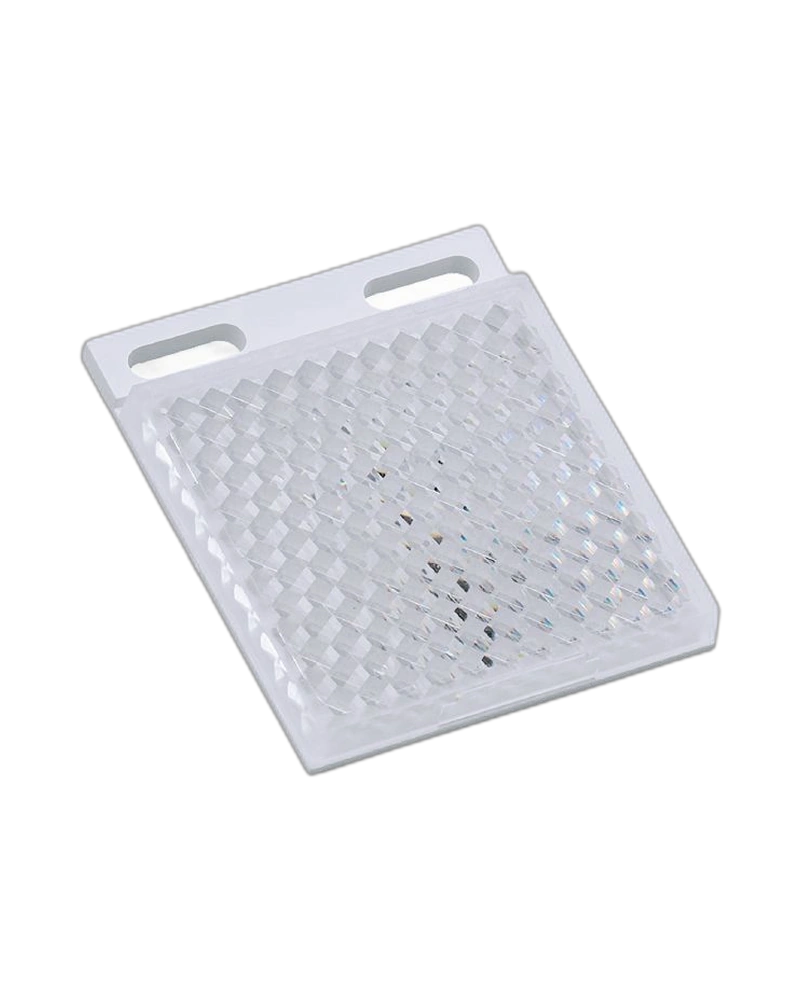

The IFM E20744 reflector is designed for compatible retro-reflective photoelectric sensors. Its 48 x 48 mm reflective surface provides a defined optical target for red-light and infrared-light sensing. The compact rectangular design supports convenient installation in industrial machinery. Its PMMA front panel and ABS base provide a practical reflector construction. The accessory is suitable for reliable object and presence detection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E20744 is a rectangular reflector designed for red-light and infrared-light retro-reflective sensors. The reflector surface provides the optical return required by compatible sensor systems. Its compact dimensions make it suitable for machine installations with limited space. The accessory supports straightforward reflector positioning and alignment. It is suitable for industrial automation and photoelectric detection systems.
The reflector has a 48 x 48 mm reflective surface. IFM technical information specifies overall dimensions of 61 x 51.5 x 8 mm. The front panel is PMMA and the base is ABS. Its weight is specified as 16 g. The design is intended for practical mounting with compatible retro-reflective sensors.
The compact reflector provides a defined optical target for sensor beam return. Its rectangular shape supports convenient machine installation. The lightweight construction reduces additional mechanical load. It is suitable for repetitive photoelectric detection operations. The reflector can help simplify alignment during sensor commissioning.
E20744 can be installed opposite compatible retro-reflective sensors. It is suitable for conveyors, packaging machinery and automated inspection systems. The reflector can support object presence and position detection. A stable mounting surface should be used to prevent unwanted movement. Correct optical alignment should be verified before operation.
48 x 48 mm reflector surface
Rectangular reflector design
For red-light sensors
For infrared-light sensors
PMMA front panel
ABS base
Compact dimensions
Lightweight 16 g construction
Easy mechanical mounting
Industrial photoelectric accessory
Object detection
Presence detection
Conveyor automation
Packaging machines
Material handling
Photoelectric inspection
Counting systems
Position detection
Production automation
Industrial sensor systems
| Specification | Details |
|---|---|
| Product Code | E20744 |
| Brand | IFM |
| Product Type | Reflector |
| Model | REFLECTOR TS-48X48 |
| Category | Sensor Accessories |
| Design | Rectangular |
| Application | Retro-reflective sensors |
| Light Compatibility | Red and infrared |
| Reflector Surface | 48 x 48 mm |
| Dimensions | 61 x 51.5 x 8 mm |
| Weight | 16 g |
| Front Panel | PMMA |
| Base | ABS |
| Optical Function | Beam reflection |
| Mounting | Mechanical |
| Installation | Opposite sensor |
| Alignment | Required |
| Electrical Connection | Not applicable |
| Electrical Supply | Not applicable |
| Output | Not applicable |
| Sensing Principle | Retro-reflective |
| Ambient Temperature | -10 to 60 °C |
| Protection Rating | Refer to IFM datasheet |
| Pack Quantity | 1 pcs |
