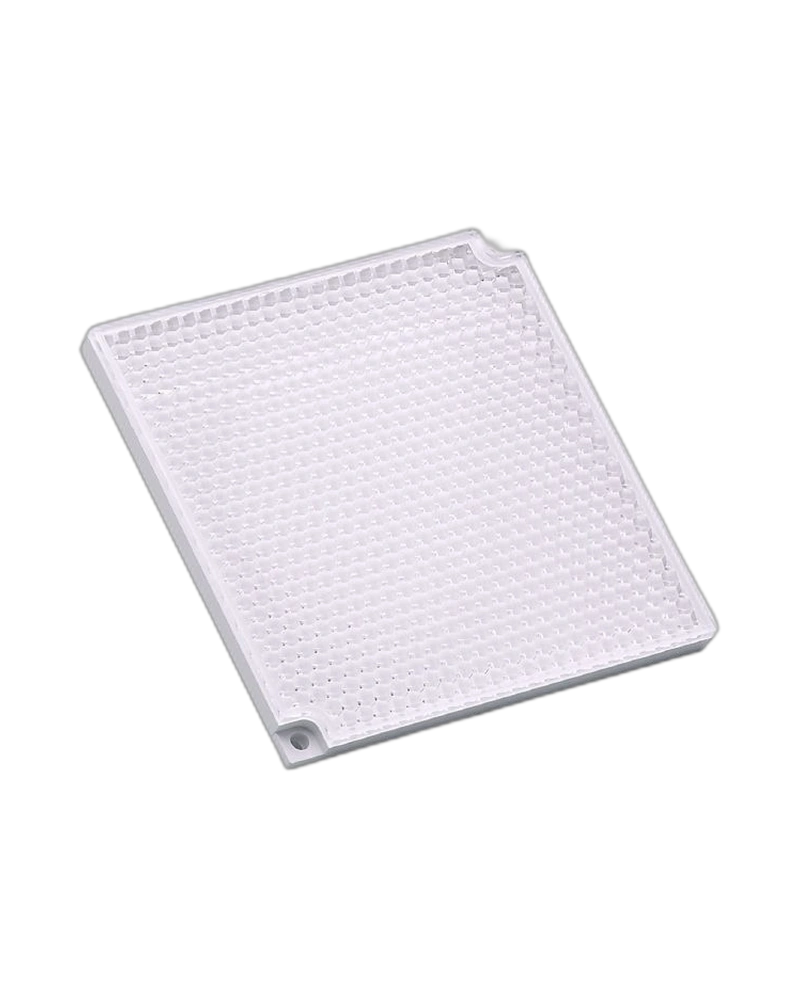

The IFM E20739 reflector is designed for compatible retro-reflective photoelectric sensors. Its large 80 x 80 mm reflector surface provides a clearly defined optical target for sensor beam return. The rectangular construction supports convenient installation on industrial machinery. It is suitable for red-light and infrared-light retro-reflective sensors. The reflector provides a practical solution for reliable object detection and machine automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E20739 provides a large reflective surface for compatible retro-reflective sensing systems. Its 80 x 80 mm reflector area is designed to return the emitted optical beam toward the sensor. The rectangular design supports straightforward installation in machine layouts. It can be used where a larger reflective target is preferred. The accessory is suitable for industrial photoelectric applications.
The reflector uses a rectangular design for red-light and infrared-light retro-reflective sensors. IFM specifies dimensions of 85 x 85 x 9.5 mm and a reflector surface of 80 x 80 mm. The product information lists a weight of 44.5 g. The construction is identified as plastic in the available technical documentation. These characteristics make it suitable for practical industrial reflector installation.
The large reflector surface provides a clearly defined optical target. Its rectangular format supports easy positioning on machine structures. The reflector can help establish a consistent retro-reflective beam path. It is suitable for repeated detection tasks in automated equipment. The accessory can simplify sensor alignment during commissioning.
E20739 can be used in conveyors, packaging machinery and automated handling systems. It supports presence and object detection using compatible retro-reflective sensors. The reflector should be securely mounted opposite the sensor. Correct alignment should be checked during commissioning. It is suitable for industrial environments within the specified operating conditions.
80 x 80 mm reflector surface
Rectangular design
For retro-reflective sensors
Suitable for red light
Suitable for infrared light
Compact mechanical construction
Easy reflector mounting
Supports optical alignment
Suitable for industrial automation
Large reflective target
Object detection
Presence detection
Conveyor monitoring
Packaging automation
Material handling
Counting systems
Machine inspection
Position detection
Production lines
Photoelectric sensing
| Specification | Details |
|---|---|
| Product Code | E20739 |
| Brand | IFM |
| Product Type | Reflector |
| Model | REFLECTOR TS-80X80 |
| Category | Sensor Accessories |
| Design | Rectangular |
| Application | Retro-reflective sensors |
| Light Type | Red and infrared |
| Reflector Surface | 80 x 80 mm |
| Overall Dimensions | 85 x 85 x 9.5 mm |
| Weight | 44.5 g |
| Material | Plastic |
| Optical Function | Beam reflection |
| Mounting | Mechanical |
| Installation | Opposite sensor |
| Alignment | Required |
| Electrical Connection | Not applicable |
| Electrical Supply | Not applicable |
| Output | Not applicable |
| Sensing Principle | Retro-reflective |
| Operating Temperature | -10 to 60 °C |
| Protection Rating | Refer to IFM datasheet |
| Housing | Reflector body |
| Pack Quantity | 1 pcs |
| Documentation | IFM technical data |
