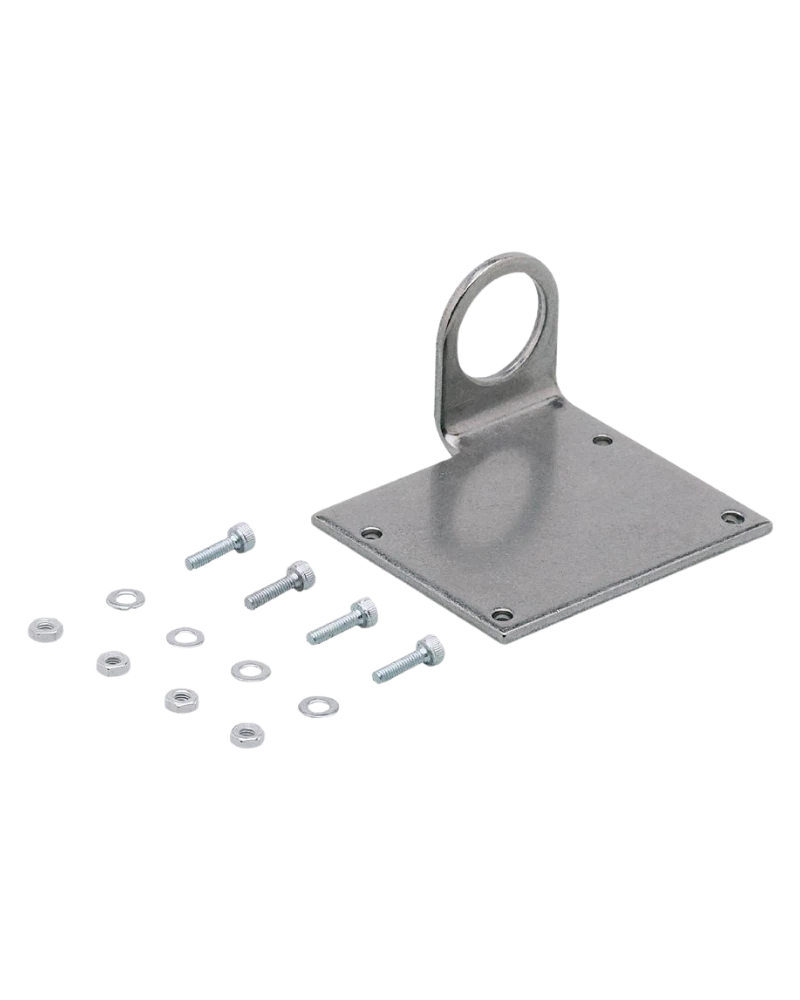

The IFM E20724 angle bracket is designed to provide secure mounting for compatible 50 x 50 mm reflectors. Its angled construction supports convenient positioning of the reflector within photoelectric sensing applications. The bracket helps maintain a stable reflective target during machine operation. Its stainless-steel construction is suitable for demanding industrial environments. It is a practical accessory for reliable reflector installation and alignment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E20724 provides a dedicated mounting solution for compatible reflectors. The bracket is designed around a stable mechanical arrangement that supports reflector positioning. Its angled configuration can simplify installation where a straight mounting surface is unavailable. The accessory helps maintain consistent reflector alignment. It is suitable for photoelectric sensor systems used in industrial automation.
The bracket is intended for reflectors measuring 50 x 50 mm. Its stainless-steel mounting construction provides a robust mechanical support. The angled format helps position the reflector correctly relative to the sensor. It can be installed on suitable machine structures using appropriate fasteners. The design supports convenient installation and maintenance.
The bracket helps prevent unwanted reflector movement during operation. Its stainless-steel construction provides a durable mounting solution. The angled arrangement offers flexibility when integrating reflectors into machine structures. It supports accurate optical alignment of retro-reflective sensor systems. The accessory is suitable for repeated industrial use.
E20724 can be used in conveyor, packaging and automated inspection systems. It is suitable for mounting compatible 50 x 50 mm reflectors. The bracket can help position reflectors at convenient angles for sensor detection. It is useful in machine layouts with restricted mounting space. Correct tightening and alignment should be checked during commissioning.
Angle bracket design
For 50 x 50 mm reflector
Stainless-steel construction
Stable reflector support
Easy mechanical mounting
Supports optical alignment
Suitable for industrial automation
Compact installation arrangement
Robust mechanical design
Useful for retro-reflective systems
Reflector mounting
Photoelectric sensing
Conveyor systems
Packaging automation
Object detection
Machine inspection
Material handling
Production-line automation
Presence detection
Industrial sensor installation
| Specification | Details |
|---|---|
| Product Code | E20724 |
| Brand | IFM |
| Product Type | Angle bracket |
| Model | ANGLE BRACKET REFLECTOR |
| Category | Sensor Accessories |
| Application | Reflector mounting |
| Compatible Reflector | 50 x 50 mm |
| Design | Angle bracket |
| Material | Stainless steel 1.4571/316Ti |
| Dimensions | 34 x 61 x 59 mm |
| Weight | 112.5 g |
| Mounting Type | Mechanical |
| Function | Reflector support |
| Optical Function | Maintains reflector position |
| Sensor Type | Retro-reflective sensors |
| Installation | Machine mounting |
| Adjustment | Mechanical |
| Electrical Connection | Not applicable |
| Electrical Supply | Not applicable |
| Output | Not applicable |
| Sensing Principle | Accessory for photoelectric sensing |
| Housing | Metal bracket |
| Environmental Use | Industrial |
| Pack Quantity | 1 pcs |
| Documentation | IFM technical drawing |
