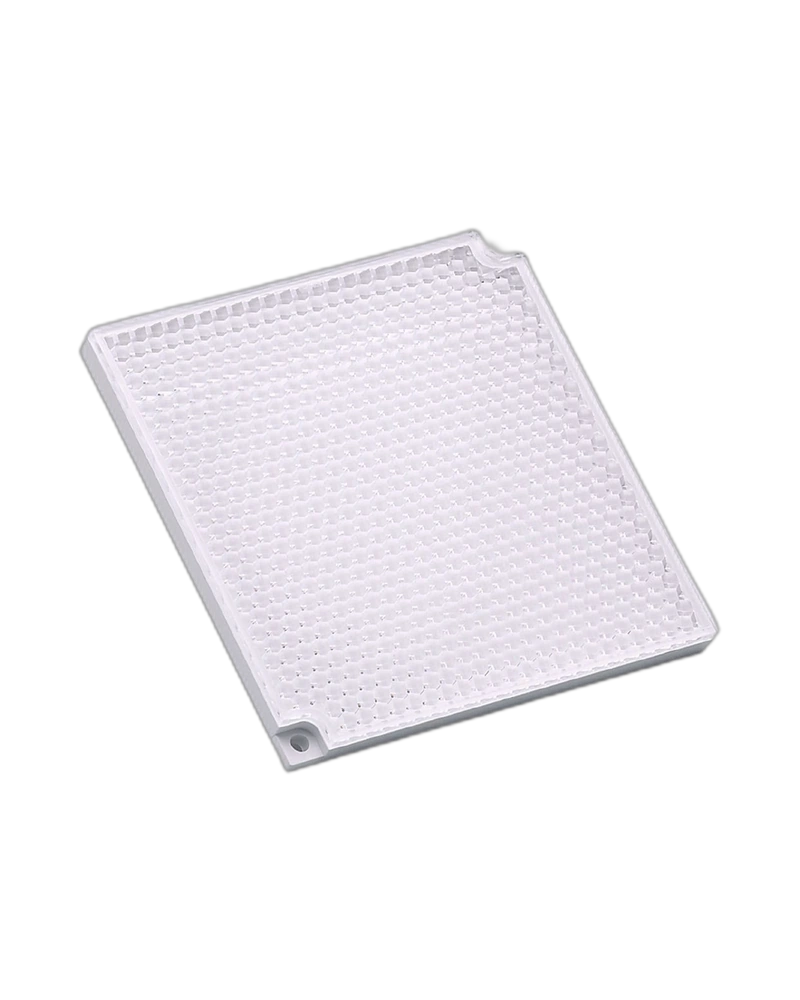

The E20454 TS-96x96 is a large rectangular reflector intended for reliable retro-reflective sensor operation. Its 96 × 96 mm reflective surface provides a broad optical target for compatible red-light and infrared-light sensors. The robust plastic construction makes it suitable for industrial photoelectric sensing installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The REFLECTOR TS-96X96 is a large-format reflector designed for compatible retro-reflective photoelectric sensors. Its 96 × 96 mm reflective surface provides a broad optical target for industrial detection applications. The rectangular plastic construction supports practical machine installation, while its design is suitable for red-light and infrared sensing. It is intended for reliable retro-reflective sensor operation.
Large 96 × 96 mm reflective surface
Designed for red-light and infrared retro-reflective sensors
Rectangular reflector construction
Plastic material for lightweight installation
Supports reliable optical signal return
Suitable for industrial automation applications
The TS-96X96 provides a comparatively large optical target for compatible retro-reflective sensors. The broad surface can make alignment more convenient during machine installation. It helps maintain a defined optical return path between the sensor and reflector.
The reflector works as the passive optical target within a retro-reflective sensing arrangement. The sensor emits light toward the reflector and receives the returned signal. Interruption of this optical path by a product or machine component can then be used for detection.
The reflector has a compact rectangular construction with overall dimensions of approximately 100 × 100 × 9.5 mm. Its reflective surface measures 96 × 96 mm and the construction uses plastic material. The specified operating temperature is -10 to 60 °C.
The large reflective surface is useful for conveyor and machine installations where practical alignment is important. It can support object presence, passage and interruption detection. The reflector is suitable for general industrial automation and photoelectric sensing systems.
| Specification | Details |
|---|---|
| Product Code | E20454 |
| Product Type | Reflector |
| Model | REFLECTOR TS-96x96 |
| Brand | IFM |
| Application | Retro-reflective sensors |
| Design | Rectangular |
| Suitable Light | Red light |
| Suitable Light 2 | Infrared light |
| Reflector Surface | 96 × 96 mm |
| Overall Dimensions | 100 × 100 × 9.5 mm |
| Length | 100 mm |
| Width | 100 mm |
| Thickness | 9.5 mm |
| Material | Plastic |
| Weight | 66.6 g |
| Ambient Temperature | -10...60 °C |
| Optical Type | Reflector |
| Mounting | Mechanical |
| Sensor Compatibility | Retro-reflective sensors |
| Optical Function | Light reflection |
| Industrial Use | Yes |
| Application Environment | Industrial automation |
| Pack Quantity | 1 pc |
| Manufacturer | IFM |
| Installation | Fixed reflector mounting |
