Introduction

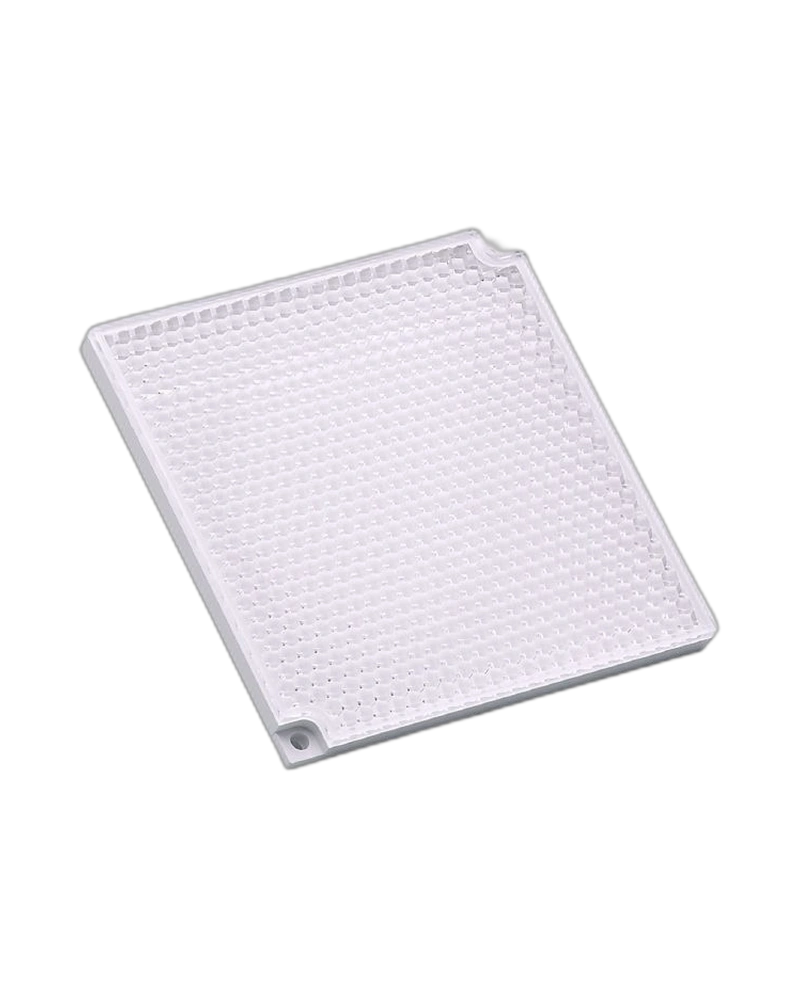

The E20454 reflector is designed to provide a dedicated optical target for compatible retro-reflective sensors. Its relatively large reflector surface can simplify optical alignment in suitable industrial installations. The accessory is designed for red-light and infrared-light retro-reflective systems. Its rectangular form provides a practical mounting surface for machine and conveyor applications. It is intended to support stable optical detection in automated processes.

Optical Function

The reflector returns light emitted by the retro-reflective sensor back toward its receiving element. This creates the optical path needed for monitoring objects that interrupt the beam. The 96 x 96 mm reflector surface provides a broad target area for appropriate installations. Correct positioning helps maintain consistent sensing and reduces alignment problems. It is suitable for compatible red-light and infrared-light sensors.

Mechanical Construction

The reflector is manufactured from plastic and has overall dimensions of approximately 100 x 100 x 9.5 mm. Its reflector surface measures approximately 96 x 96 mm. The product weighs approximately 66.6 g, providing a practical balance between reflector size and handling convenience. Its rectangular construction supports fixed installation on suitable machine surfaces.

Industrial Performance

The large reflective surface makes the E20454 suitable for installations where a larger optical target is beneficial. It can be used in conveyor systems, packaging lines and automated material handling equipment. The accessory provides a straightforward solution for retro-reflective sensor arrangements. Its compact depth helps keep the overall mounting profile practical. Correct sensor compatibility and alignment should be checked during installation.

Key Features

Large rectangular reflector
Model TS-96x96
96 x 96 mm reflector surface
Suitable for retro-reflective sensors
Suitable for red light
Suitable for infrared light
Plastic construction
Overall dimensions approximately 100 x 100 x 9.5 mm
Weight approximately 66.6 g
Industrial mounting accessory
Large optical target
Suitable for automation systems
Supports reliable optical reflection

Applications

Longer-area object detection
Conveyor systems
Packaging machinery
Material handling
Product presence detection
Machine automation
Production line monitoring
Photoelectric sensor systems
Object passage detection
Industrial counting
Automated handling systems
Factory automation
