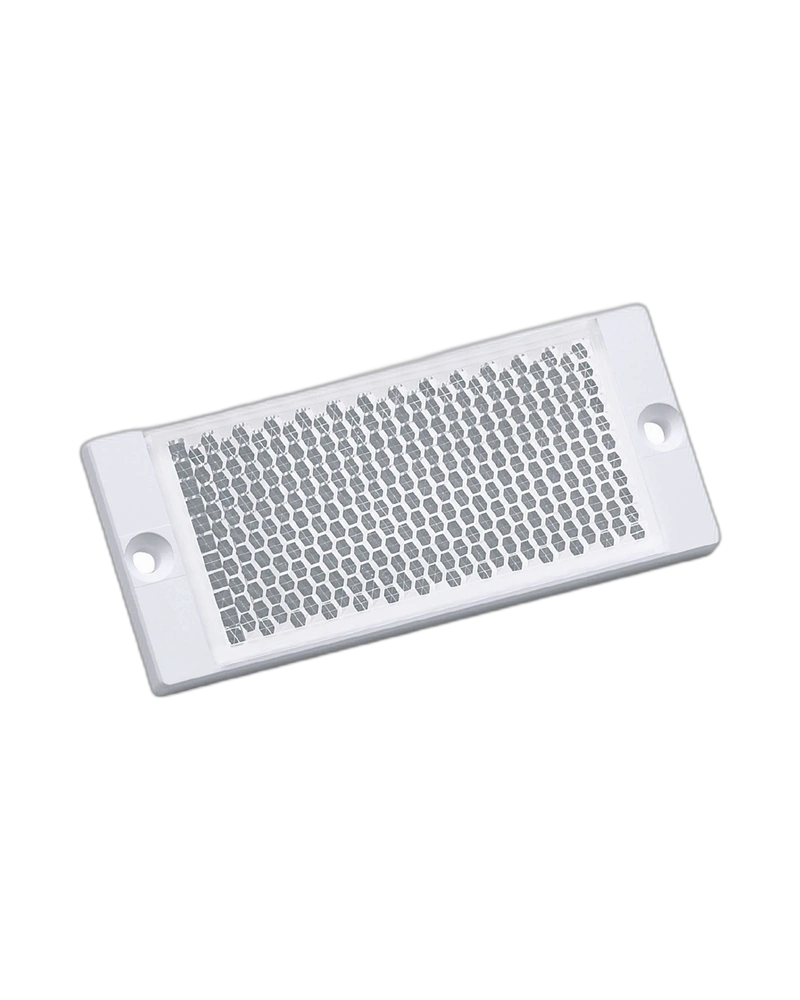

The E20453 TS-93x45 is a rectangular prismatic reflector designed for dependable retro-reflective sensor operation. Its larger 45 × 95 mm reflective surface provides a suitable optical target for industrial photoelectric sensing systems. The plastic construction and simple mounting arrangement make it practical for automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The REFLECTOR TS-93X45 is a rectangular reflector designed for compatible red-light and infrared retro-reflective sensors. Its 45 × 95 mm reflective surface provides a broad optical target for reliable sensing arrangements. The reflector is manufactured from plastic and is designed for easy mounting with two screws. Its -10 to 60 °C operating range supports general industrial automation environments.
Rectangular reflector for retro-reflective sensors
45 × 95 mm reflective surface
Suitable for red light and infrared light
Plastic construction for lightweight installation
Designed for easy two-screw mounting
Operating temperature from -10 to 60 °C
The TS-93X45 provides a defined reflective surface for compatible retro-reflective photoelectric sensors. The optical surface returns the sensor's emitted light toward the receiving element. This creates a stable reference point for detecting interruptions caused by passing objects.
A broad reflective surface provides useful tolerance during sensor installation and alignment. Correct positioning of the reflector relative to the sensor helps maintain a consistent optical return. This is important for repeatable detection in automated machinery.
The reflector uses a plastic construction with a compact rectangular form. Its dimensions are approximately 55 × 125.5 × 9.5 mm, with a reflector surface of 45 × 95 mm. The lightweight construction makes it practical for machine-mounted sensing arrangements.
The reflector can be integrated into conveyor, packaging, assembly and material-handling systems. It supports object detection where a retro-reflective sensor requires a dedicated optical target. The simple mounting arrangement also helps reduce installation time during machine setup.
| Specification | Details |
|---|---|
| Product Code | E20453 |
| Product Type | Prismatic reflector |
| Model | REFLECTOR TS-93x45 |
| Brand | IFM |
| Application | Retro-reflective sensors |
| Design | Rectangular |
| Suitable Light | Red light |
| Suitable Light 2 | Infrared light |
| Reflector Surface | 45 × 95 mm |
| Overall Dimensions | 55 × 125.5 × 9.5 mm |
| Length | 125.5 mm |
| Width | 55 mm |
| Thickness | 9.5 mm |
| Material | Plastic |
| Weight | 47.2 g |
| Ambient Temperature | -10...60 °C |
| Optical Type | Prismatic reflector |
| Mounting | Screw mounting |
| Mounting Points | 2 |
| Sensor Compatibility | Retro-reflective sensors |
| Industrial Use | Yes |
| Reflective Function | Optical return |
| Pack Quantity | 1 pc |
| Manufacturer | IFM |
| Installation | Fixed reflector mounting |
