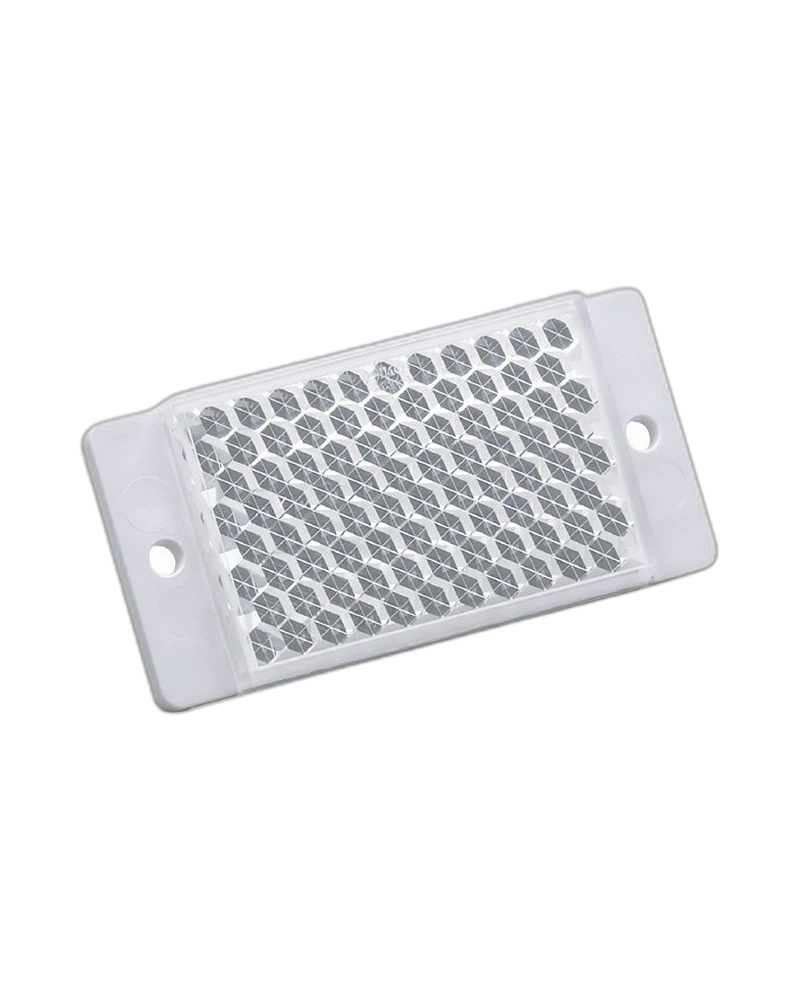

The IFM E20453 is a rectangular reflector designed for reliable operation of compatible retro-reflective sensors. It is suitable for sensors using red light and infrared light. The reflector is designed for secure installation using two screws. Its plastic construction provides a lightweight and practical solution for industrial sensing applications. The large reflector surface supports convenient optical alignment in automated systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20453 reflector provides a dedicated reflective target for compatible retro-reflective photoelectric sensors. Its rectangular construction offers a broad optical surface for industrial detection arrangements. The accessory is designed for red-light and infrared-light sensing systems. Two-screw mounting provides secure positioning on a machine or support structure. It can be used as part of conveyor, packaging and material handling sensor installations.
The reflector provides the return surface required for retro-reflective sensing. A correctly aligned reflector helps the sensor maintain a stable optical path during normal operation. The 45 x 95 mm reflector surface provides a relatively large target area. This can make installation and alignment easier in suitable industrial applications. It is designed for compatible red-light and infrared-light retro-reflective sensors.
The E20453 has an overall dimension of approximately 55 x 125.5 x 9.5 mm. Its reflector surface measures approximately 45 x 95 mm. The accessory is manufactured from plastic and weighs approximately 47.2 g. Two screws are used for mounting, providing stable attachment to the machine structure.
The reflector is suitable for applications where reliable retro-reflective detection is required. It can support object detection on production lines and automated conveying systems. Its rectangular design provides a practical optical target for machine-mounted sensors. The plastic construction provides a lightweight accessory solution for industrial equipment. Correct installation, alignment and sensor compatibility should always be verified before operation.
Rectangular reflector design
Model TS-93x45
Suitable for retro-reflective sensors
Suitable for red-light sensing
Suitable for infrared-light sensing
Plastic construction
Reflector surface 45 x 95 mm
Overall dimensions 55 x 125.5 x 9.5 mm
Two-screw mounting
Weight approximately 47.2 g
Compact optical accessory
Reliable reflective target
Suitable for industrial automation
Conveyor object detection
Packaging machinery
Material handling systems
Product presence detection
Part counting
Machine automation
Production line monitoring
Photoelectric sensing
Object passage monitoring
Industrial inspection systems
Automated handling equipment
Factory automation systems
| Specification | Details |
|---|---|
| Product code | E20453 |
| Product name | Reflector for retro-reflective sensors |
| Model | REFLECTOR TS-93x45 |
| Brand | IFM |
| Accessory type | Reflector |
| Design | Rectangular |
| Sensor principle | Retro-reflective |
| Compatible light | Red light |
| Compatible light | Infrared light |
| Material | Plastic |
| Reflector surface | 45 x 95 mm |
| Overall dimensions | 55 x 125.5 x 9.5 mm |
| Weight | 47.2 g |
| Mounting method | Screw mounting |
| Screw mounting | Two screws |
| Operating temperature | -10 to 60 °C |
| Application | Industrial sensing |
| Optical function | Reflection |
| Installation | Fixed surface mounting |
| Mechanical format | Rectangular |
| Maintenance | Replaceable accessory |
| Packaging | 1 piece |
| Product category | Sensor accessory |
| Manufacturer | ifm electronic gmbh |
| Intended use | Retro-reflective sensing |
