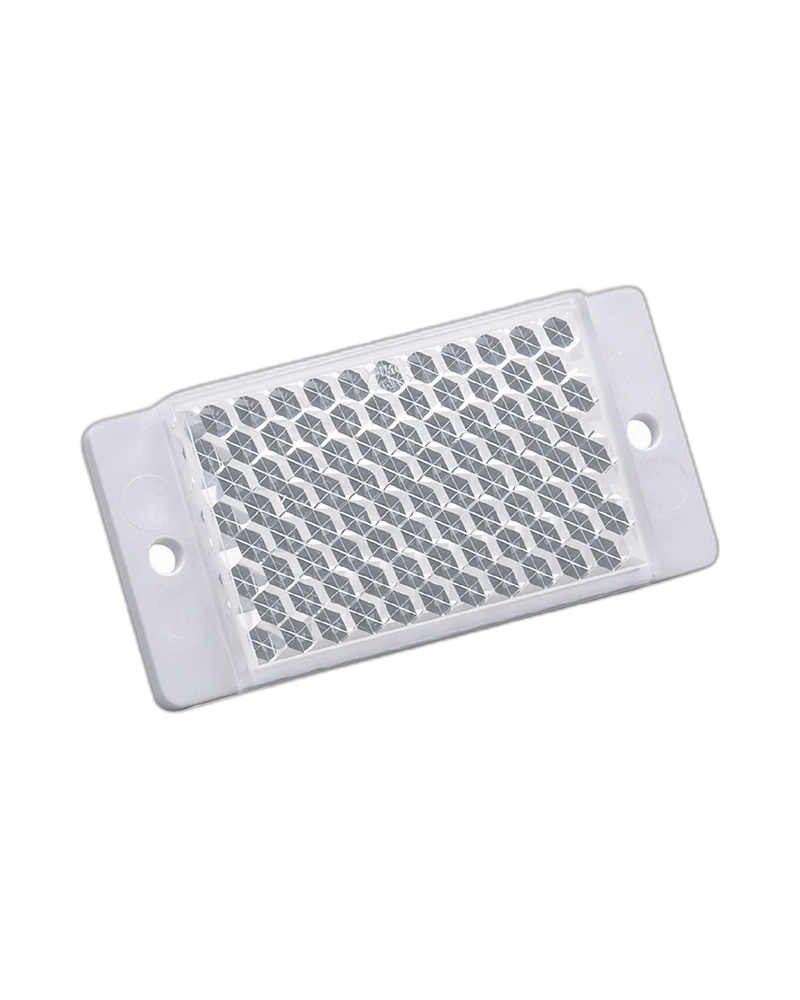

The E20452 TS-45x28 is a rectangular reflector designed for reliable operation of IFM retro-reflective sensors. It is suitable for red-light and infrared-light sensing systems and provides a defined reflective surface for stable object detection. Its compact construction supports straightforward sensor installation in industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The REFLECTOR TS-45X28 is a dedicated reflector designed for reliable operation of compatible retro-reflective sensors. Its rectangular reflective surface provides a defined optical target for red-light and infrared retro-reflective sensing systems. The reflector can be mounted using only two screws, making installation simple. It is suitable for industrial photoelectric detection arrangements where consistent optical return is required.
Designed for retro-reflective photoelectric sensors
Suitable for red light and infrared light
Rectangular reflector format for stable optical targeting
Simple two-screw mounting arrangement
Compact solution for industrial sensor installations
Supports reliable non-contact object detection
The reflector provides a defined surface that returns the emitted optical signal toward the compatible retro-reflective sensor. When an object interrupts the optical path, the sensor can detect the resulting change. This makes the reflector an important part of a reliable retro-reflective sensing arrangement.
The TS-45X28 is designed for retro-reflective sensors operating with red or infrared light. Its reflective construction provides the target required for the sensor's optical path. Correct alignment between the sensor and reflector helps maintain stable detection.
The reflector is designed for straightforward mechanical mounting using two screws. A secure installation prevents unwanted movement of the reflective surface during machine operation. This helps maintain the intended optical alignment throughout repeated production cycles.
The reflector can be used in conveyor systems, packaging machinery, assembly equipment and automated material handling. It supports applications involving object presence, passage and interruption detection. Its compact design makes it practical for integration into industrial machine structures.
| Specification | Details |
|---|---|
| Product Code | E20452 |
| Product Type | Reflector |
| Model | REFLECTOR TS-45x28 |
| Brand | IFM |
| Application | Retro-reflective sensors |
| Design | Rectangular |
| Suitable Light | Red light |
| Suitable Light 2 | Infrared light |
| Reflector Surface | 45 × 28 mm |
| Overall Dimensions | 32 × 65.5 × 8.5 mm |
| Length | 65.5 mm |
| Width | 32 mm |
| Height | 8.5 mm |
| Material | Plastic |
| Weight | 11.5 g |
| Ambient Temperature | -10...60 °C |
| Mounting | Mechanical mounting |
| Mounting Holes | Yes |
| Sensor Type | Retro-reflective |
| Optical Function | Light reflection |
| Industrial Application | Yes |
| Operating Environment | Industrial |
| Pack Quantity | 1 pc |
| Manufacturer | IFM |
| Installation | Sensor reflector mounting |
