Introduction

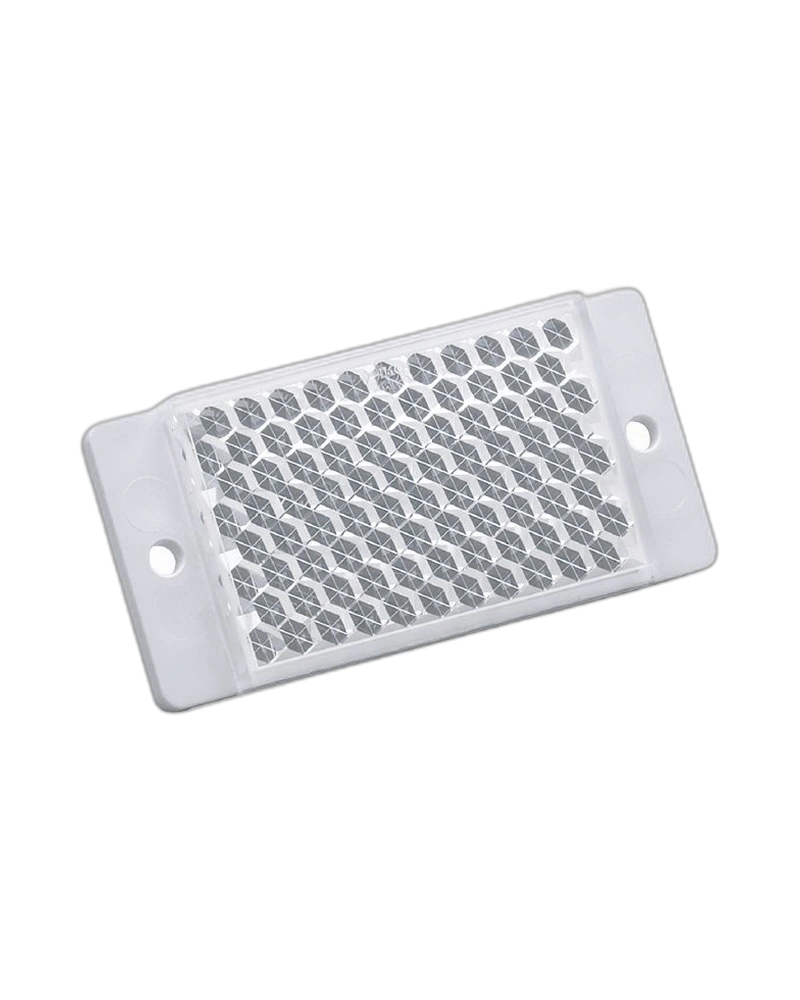

The E20452 reflector is an optical accessory used to support reliable operation of compatible retro-reflective sensors. It provides a defined reflective surface toward the sensor to maintain the optical sensing path. The rectangular design is suitable for industrial machine and conveyor installations. Its construction supports practical installation in automation equipment. It is intended for use with red-light and infrared-light retro-reflective sensors.

Optical Function

The reflector returns the emitted optical signal toward a compatible retro-reflective sensor. This allows the sensor to monitor interruptions caused by objects moving through the sensing path. The reflective surface supports consistent optical detection when correctly aligned. It is suitable for common automation tasks involving object presence and passage detection. Correct mounting and alignment are important for reliable sensor operation.

Mechanical Design

The E20452 uses a rectangular reflector configuration suitable for compact industrial installations. It is designed for mounting using two screws, helping provide secure mechanical positioning. The reflector dimensions are approximately 32 x 65.5 x 8.5 mm, with a reflector surface of 45 x 28 mm. Its plastic construction keeps the accessory lightweight while providing a practical optical surface.

Industrial Performance

The reflector is intended to provide dependable optical return for compatible retro-reflective sensors. It can be used in conveyor systems, packaging equipment and automated material handling applications. Its compact dimensions allow installation where available space is limited. Proper alignment between sensor and reflector helps maintain stable optical performance. The accessory supports straightforward replacement and maintenance of reflector-based sensing arrangements.

Key Features

Rectangular reflector design
Model TS-45x28
Designed for retro-reflective sensors
Suitable for red-light sensors
Suitable for infrared-light sensors
Plastic construction
Reflector surface approximately 45 x 28 mm
Compact mechanical format
Two-screw mounting
Lightweight construction
Suitable for industrial automation
Supports reliable optical reflection
Designed for sensor alignment

Applications

Retro-reflective sensing
Conveyor systems
Object presence detection
Product detection
Packaging machinery
Material handling equipment
Part counting
Machine automation
Industrial photoelectric sensing
Production line monitoring
Object passage detection
Factory automation systems
