Introduction

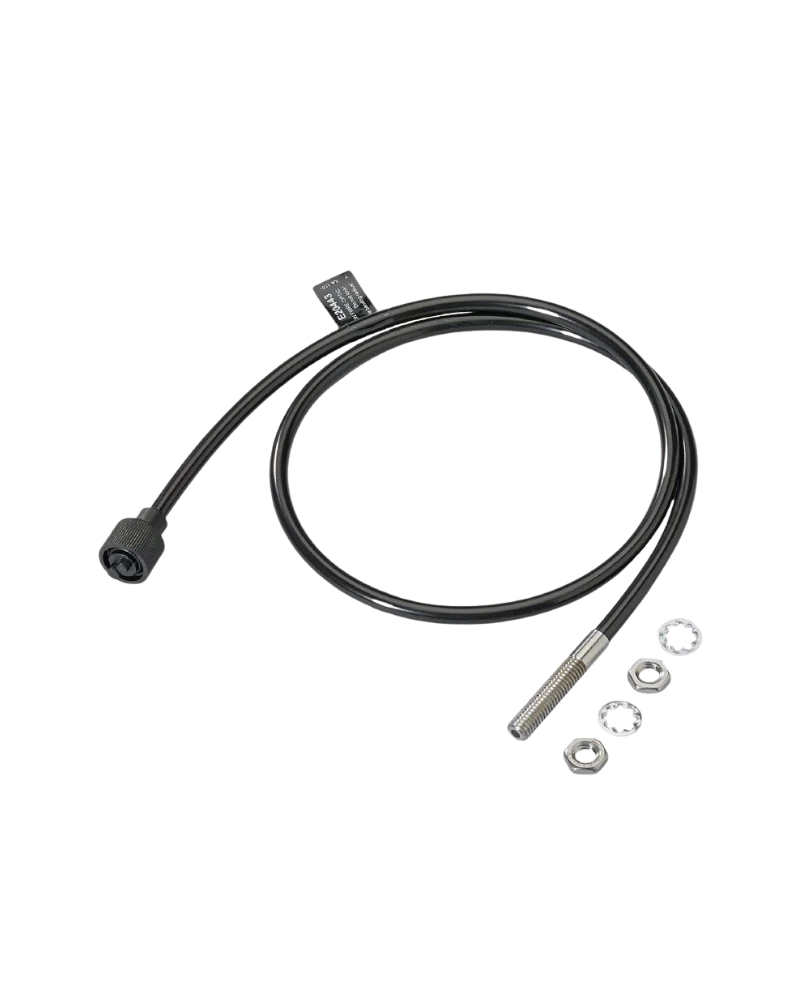

The E20443 fibre optic diffuse reflection sensor is designed to detect objects using a diffuse reflection sensing principle. The sensing arrangement allows the optical sensing point to be positioned away from the amplifier or electronic evaluation unit. This makes fibre optics useful in confined machine spaces and difficult-to-access installation areas. The FT-00PPV-M6 configuration provides a compact mounting arrangement. It can be integrated into industrial automation systems requiring reliable optical object detection.

Optical Detection

Diffuse reflection operation allows the fibre optic sensor to detect objects based on reflected light from the target surface. The sensing fibre guides optical energy between the sensing location and the compatible amplifier. This arrangement helps keep the electronic amplifier away from areas where space is restricted. It is useful for detecting products, components and machine parts at defined sensing locations. Correct amplifier selection and installation are important for achieving the required sensing performance.

Mechanical Design

The M6 configuration provides a threaded mechanical arrangement for installation in suitable mounting structures. Its fibre optic construction supports flexible routing toward the sensing location. The compact sensing head can be positioned close to the target area without requiring a large sensor body. Proper fixation helps prevent movement of the fibre during machine operation. The design is suitable for machine-building and factory automation installations.

Industrial Performance

Fibre optic sensing is useful where conventional photoelectric sensor installation is difficult. The E20443 can support object detection in narrow spaces, around machinery and near moving components. Its compact optical head helps provide greater installation flexibility. The sensor can be combined with an appropriate IFM fibre optic amplifier for signal evaluation. This makes it suitable for a variety of automated detection tasks.

Key Features

Fibre optic diffuse reflection principle
Model FT-00PPV-M6
M6 mounting configuration
Compact sensing arrangement
Suitable for restricted installation spaces
Flexible fibre optic positioning
Designed for compatible fibre optic amplifiers
Non-contact object detection
Suitable for machine automation
Supports precise sensing-point positioning
Suitable for industrial detection tasks
Compact optical construction
Useful for difficult-access applications

Applications

Object detection
Part presence detection
Component positioning
Conveyor monitoring
Packaging machines
Assembly machines
Material handling systems
Small-part detection
Machine tool automation
Industrial counting applications
Product inspection systems
Factory automation equipment
