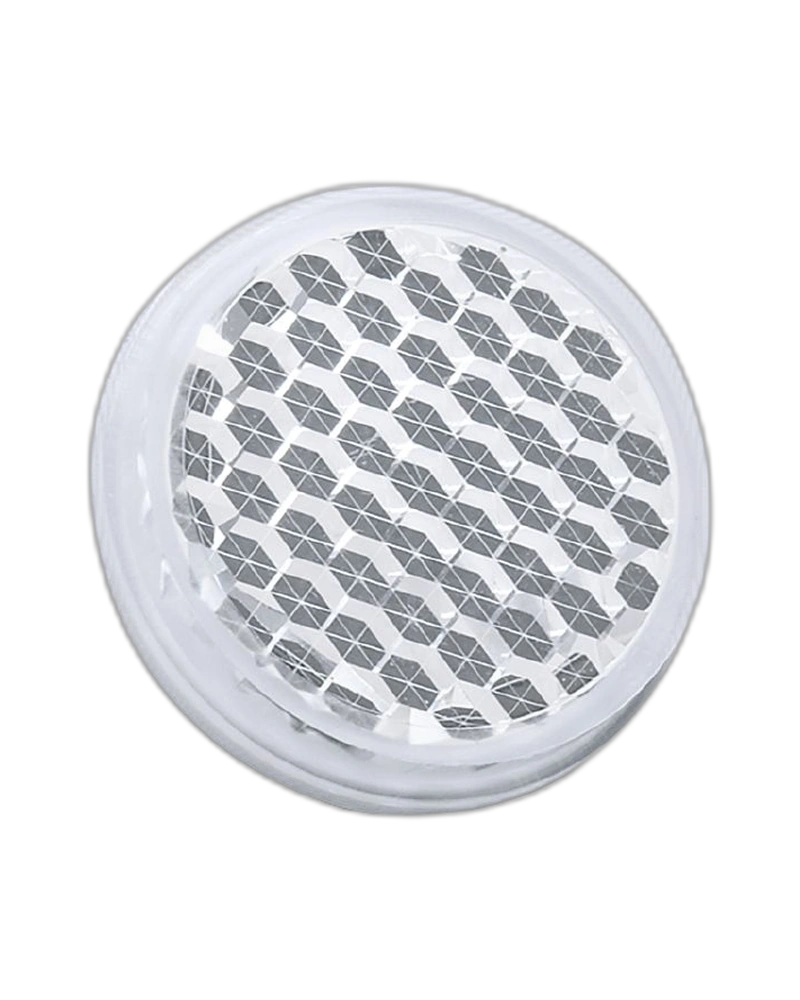

The IFM E20003 TS-22 reflector is a compact round reflector designed for red-light and infrared-light retro-reflective sensors. It is installed by sticking it directly to a suitable surface and provides a defined reflective target for reliable photoelectric sensing. The plastic reflector has a 20 mm reflective surface, 25 mm overall diameter and 6.5 mm length, making it suitable for compact sensor installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E20003 is a round reflector designed for use with compatible retro-reflective photoelectric sensors.
The reflector provides a dedicated reflective surface for red-light and infrared-light retro-reflective sensors, supporting dependable object detection.
Its compact 20 mm reflector surface and 25 mm overall diameter make it suitable for installations where space is limited.
The TS-22 is designed to be attached directly to a suitable surface, simplifying installation and alignment.
TS-22 reflector design
Round reflector
For retro-reflective sensors
Suitable for red light
Suitable for infrared light
20 mm reflector surface
25 mm overall diameter
6.5 mm length
Plastic construction
Adhesive surface installation
Photoelectric sensing
Retro-reflective sensors
Object detection
Conveyor systems
Packaging machinery
Material handling
Industrial automation
Factory automation
Product counting
Machine monitoring
| Specification | Details |
|---|---|
| Product Code | E20003 |
| Product Type | Reflector for retro-reflective sensors |
| Model | REFLECTOR TS-22 |
| Design | Round |
| Compatible Light | Red light and infrared light |
| Installation | Sticking to surface |
| Dimensions | Ø25 / L = 6.5 mm |
| Reflector Surface | Ø20 mm |
| Material | Plastic |
| Ambient Temperature | -10 to 60 °C |
| Weight | 4 g |
| Pack Quantity | 1 piece |
