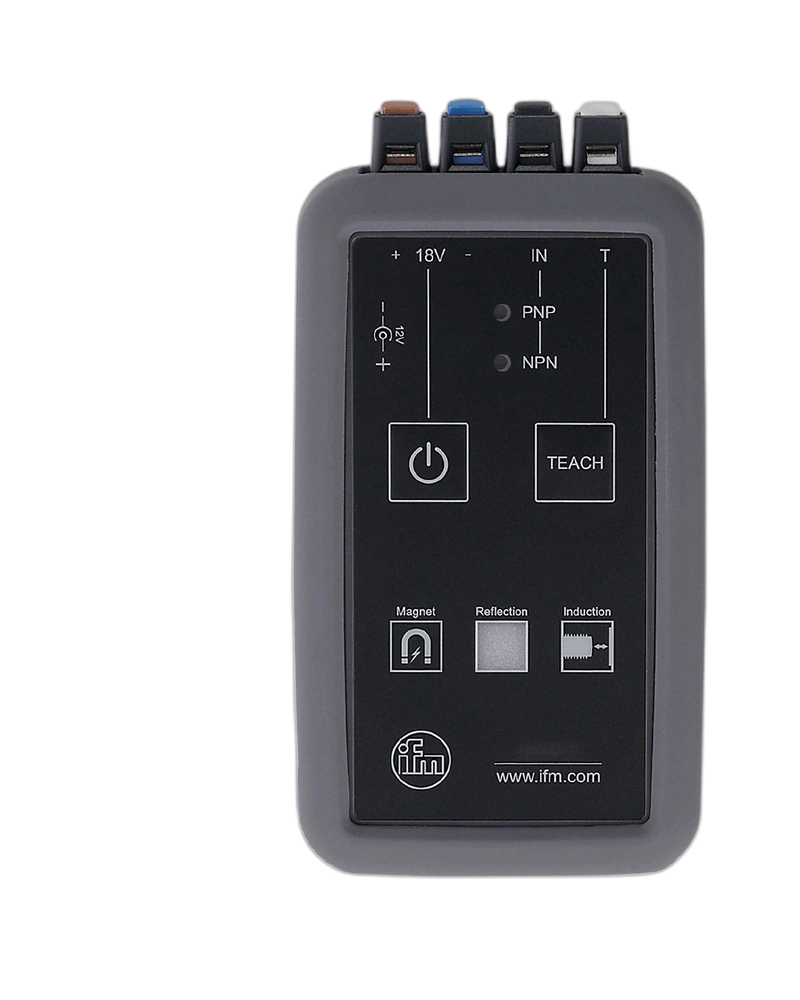

The IFM E18430 Sensor Testpak is a portable testing unit designed to check sensor operation and switching status. It operates from a 4.5–18 V DC input and includes voltage supply and switching-status displays with ON/OFF and teach controls. Its compact ABS and silicone housing is suitable for practical sensor testing, commissioning and troubleshooting in industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E18430 Sensor Testpak is a practical testing device for checking the operation and switching behaviour of compatible sensors.
The unit provides a convenient way to verify sensor switching status during installation, commissioning and troubleshooting, helping technicians identify connection or sensor-related issues.
The test device includes ON/OFF and teach membrane keys together with visual displays for voltage supply and switching status, supporting straightforward operation.
With a compact 141 × 82 × 34 mm housing and a weight of approximately 393.3 g, the Sensor Testpak can be used as a practical service and commissioning accessory.
Sensor testing device
4.5–18 V DC input voltage
Switching-status indication
Voltage supply indication
ON/OFF membrane key
Teach membrane key
Green display
Yellow display
ABS and silicone construction
Battery-operated accessory
Industrial sensor testing
Sensor commissioning
Automation troubleshooting
Proximity sensor testing
Machine maintenance
Industrial equipment servicing
Sensor installation verification
Factory automation
Control system diagnostics
Field service applications
| Specification | Details |
|---|---|
| Product Code | E18430 |
| Product Type | Sensor Testpak |
| Input Voltage | 4.5–18 V DC |
| Total Output Current | 0.04 A |
| Ambient Temperature | -20 to +40 °C |
| Protection | IP21 |
| Dimensions | 141 × 82 × 34 mm |
| Weight | 393.3 g |
| Housing Material | ABS; silicone |
| Display | Voltage supply / switching status |
| Operating Elements | ON/OFF, Teach membrane keys |
| Required Battery | 3 × AA / 1.5 V |
| Pack Quantity | 1 piece |
