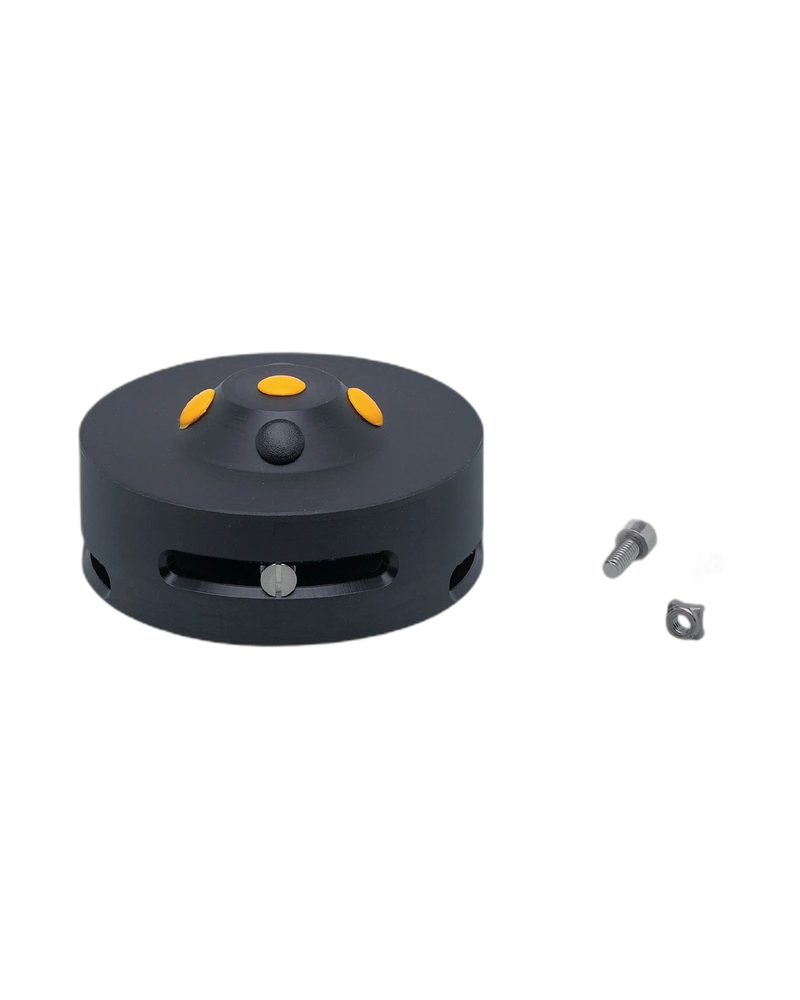

The IFM E17337 target puck is a 102 mm diameter mechanical target designed for valve actuators. It is suitable for pneumatic actuators and manually operated valves using VDI/VDE 3845 and ISO 5211/DIN 3337 interfaces. The black PVC target puck and stainless-steel 316Ti screws provide a durable solution for valve position monitoring, process automation and industrial fluid handling applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E17337 is a large target puck designed to provide a reliable mechanical target for valve actuator position monitoring.
With a 102 mm diameter, the puck provides a large target surface for compatible valve position monitoring sensors and actuator assemblies.
The product is designed for mechanical interfaces to pneumatic actuators and manually operated valves according to VDI/VDE 3845 and ISO 5211/DIN 3337.
The target puck uses black PVC and stainless-steel 1.4571/316Ti screws, providing a robust mechanical construction for industrial valve applications.
102 mm target puck diameter
Puck d=102mm design
Black target puck
PVC target puck material
130 mm hole spacing
30 mm actuator shaft height
Stainless-steel 1.4571 / 316Ti screws
VDI/VDE 3845 compatible
ISO 5211 / DIN 3337 compatible
Designed for valve actuators
Pneumatic valve actuators
Manually operated valves
Butterfly valve systems
Ball valve systems
Valve position monitoring
Industrial process automation
Fluid handling equipment
Factory automation
Quarter-turn actuator systems
Industrial valve control
| Specification | Details |
|---|---|
| Product Code | E17337 |
| Product Type | Target puck |
| Model | Puck d=102mm |
| Target Puck Diameter | 102 mm |
| Hole Spacing | 130 mm |
| Actuator Shaft Height | 30 mm |
| Housing Colour | Black |
| Target Puck Material | PVC |
| Screw Material | Stainless steel 1.4571 / 316Ti |
| Weight | 187.2 g |
| Pack Quantity | 1 piece |
