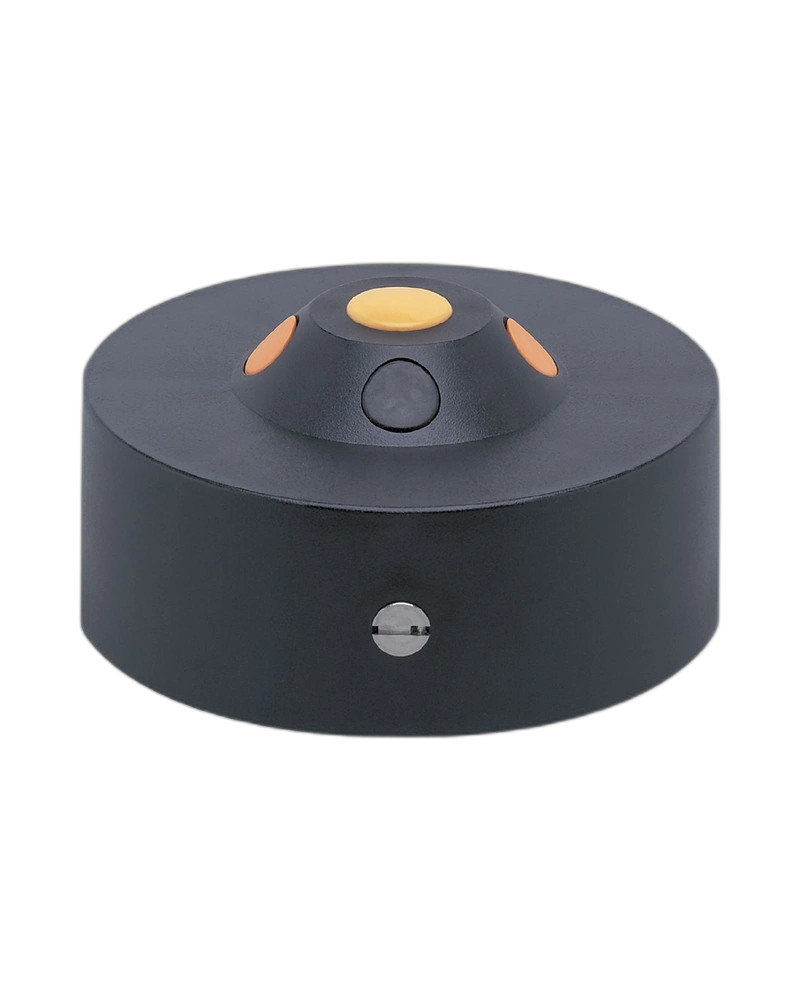

The IFM E17328 is a large 102 mm black target puck for valve actuators, designed for mechanical interfaces on pneumatic actuators and manually operated valves. It provides three possible switching flag positions and uses PA 6 construction with stainless-steel screws. The 130 mm hole spacing and 30 mm shaft height make it suitable for large quarter-turn actuator installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E17328 is a large target puck developed for valve actuator position monitoring and mechanical interfaces.
Its 102 mm diameter provides a larger mechanical target area for compatible valve position monitoring applications.
The target puck offers three possible switching flag positions, allowing the target arrangement to be configured for different actuator and sensor installations.
The puck is manufactured from black PA 6 and uses stainless-steel 1.4302 screws for reliable industrial mounting.
102 mm target puck diameter
PUCK/IND/BK/D102 design
Black housing
Three switching flag positions
130 mm hole spacing
30 mm actuator shaft height
PA 6 construction
Stainless-steel screws
For pneumatic actuators
For manually operated valves
Large valve actuators
Pneumatic actuators
Butterfly valves
Ball valves
Valve position monitoring
Process automation
Industrial fluid handling
Factory automation
Quarter-turn valve systems
Industrial valve control
| Specification | Details |
|---|---|
| Product Code | E17328 |
| Product Type | Target puck |
| Model | PUCK/IND/BK/D102 |
| Target Puck Diameter | 102 mm |
| Hole Spacing | 130 mm |
| Actuator Shaft Height | 30 mm |
| Switching Flag Positions | 3 |
| Colour | Black |
| Material | PA 6 |
| Screw Material | Stainless steel 1.4302 |
| Weight | 99.2 g |
| Pack Quantity | 1 piece |
