The IFM E17327 target puck is a 65 mm PA 6 target designed for mechanical interfaces on pneumatic actuators and manually operated valves. It provides three possible switching flag positions and uses stainless-steel mounting screws. With an 80 mm hole spacing and 30 mm actuator shaft height, it is suitable for valve position monitoring and quarter-turn actuator applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

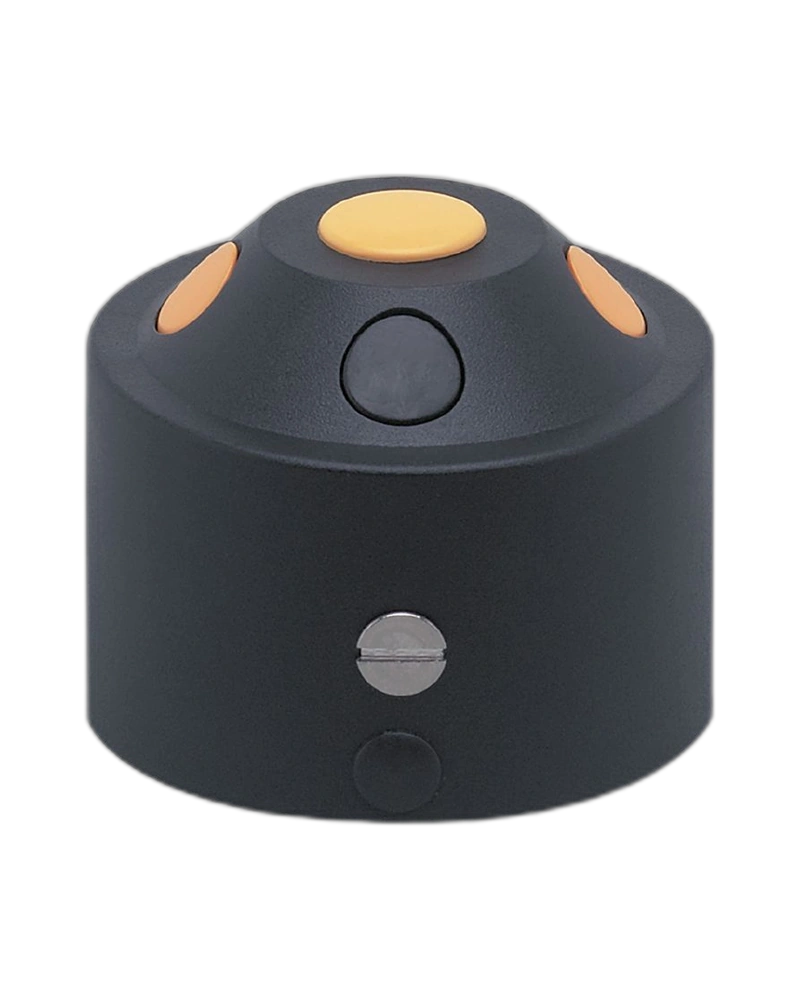

The E17327 is a PA 6 target puck designed for reliable mechanical position sensing on valve actuators.
The puck provides three possible switching flag positions, allowing the target arrangement to be adapted to the required valve position monitoring setup.
The product is designed for mechanical interfaces to pneumatic actuators and manually operated valves according to VDI/VDE 3845 and ISO 5211/DIN 3337.
The black PA 6 target puck combines low weight with durable mechanical construction, while stainless-steel screws provide secure mounting.
65 mm target puck diameter
PUCK/IND/8 PA6 design
Three possible switching flag positions
Black PA 6 construction
80 mm hole spacing
30 mm actuator shaft height
Stainless-steel screws
Suitable for pneumatic actuators
Suitable for manually operated valves
Compact mechanical design
Pneumatic actuator systems
Quarter-turn valves
Butterfly valves
Ball valves
Valve position monitoring
Industrial process automation
Fluid handling systems
Factory automation
Manual valve systems
Industrial valve control
| Specification | Details |
|---|---|
| Product Code | E17327 |
| Product Type | Target puck |
| Model | PUCK/IND/8 PA6 |
| Target Puck Diameter | 65 mm |
| Hole Spacing | 80 mm |
| Actuator Shaft Height | 30 mm |
| Switching Flag Positions | 3 |
| Material | PA 6, black |
| Screw Material | Stainless steel 1.4302 |
| Weight | 60.9 g |
| Pack Quantity | 1 piece |
