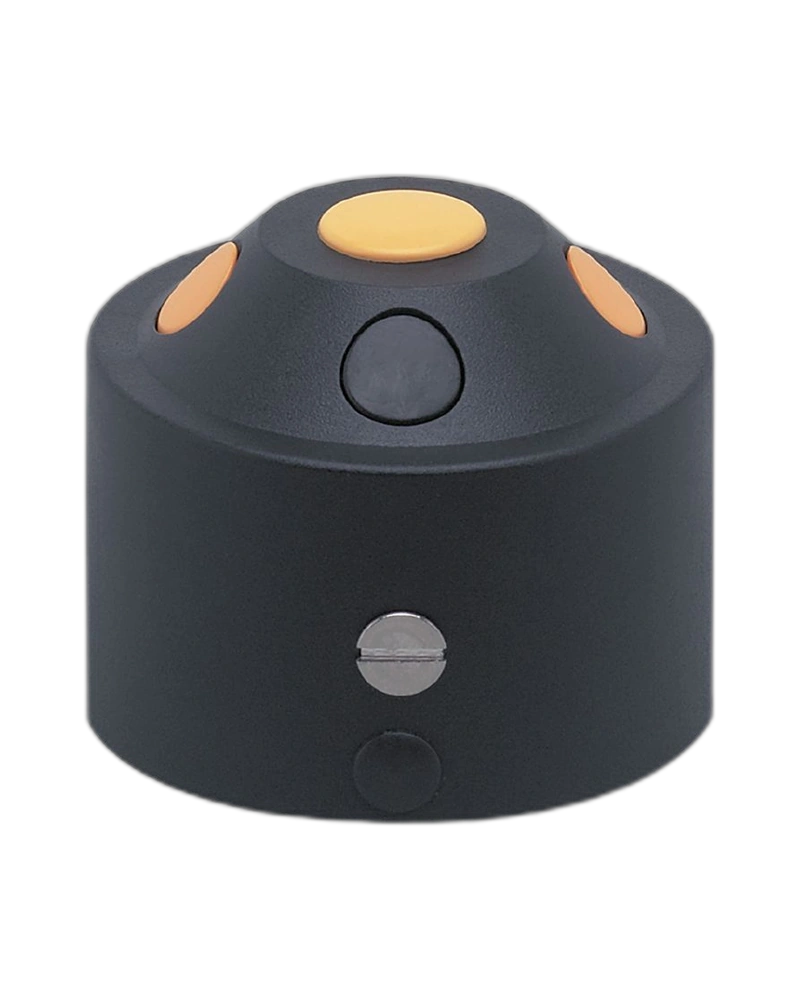

The IFM E17324 target puck is a 65 mm black target designed for mechanical interfaces on pneumatic actuators and manually operated valves. It provides eight possible switching flag positions for flexible valve position monitoring. The PA 6 construction and stainless-steel screws offer a robust mounting solution for VDI/VDE 3845 and ISO 5211/DIN 3337 compatible industrial valve applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E17324 is a compact target puck designed to provide reliable mechanical switching targets for valve position sensors.
The puck provides eight possible switching flag positions, allowing flexible positioning according to the actuator and sensor installation requirements.
It is designed for mechanical interfaces to pneumatic actuators and manually operated valves according to VDI/VDE 3845 and ISO 5211/DIN 3337.
The target puck is manufactured from black PA 6 with stainless-steel screws, providing a lightweight and durable mechanical assembly.
65 mm target puck diameter
Black housing colour
Eight possible switching flag positions
PUCK/IND/BK/65/8 design
PA 6 target puck
Stainless-steel screws
Suitable for pneumatic actuators
Suitable for manually operated valves
VDI/VDE 3845 compatible
ISO 5211 / DIN 3337 compatible
Pneumatic valve actuators
Manually operated valves
Butterfly valve systems
Ball valve systems
Valve position monitoring
Process automation
Industrial valve control
Fluid handling systems
Factory automation
Quarter-turn actuator assemblies
| Specification | Details |
|---|---|
| Product Code | E17324 |
| Product Type | Target puck |
| Model | PUCK/IND/BK/65/8 |
| Target Puck Diameter | 65 mm |
| Hole Spacing | 80 mm |
| Actuator Shaft Height | 30 mm |
| Switching Flag Positions | 8 |
| Colour | Black |
| Material | PA 6 |
| Screw Material | Stainless steel 1.4302 |
| Weight | 62.9 g |
| Pack Quantity | 1 piece |
