The IFM E17119 target puck is an adjustable 102 mm diameter target designed for valve actuators and position monitoring. It is suitable for mechanical interfaces according to VDI/VDE 3845 and ISO 5211/DIN 3337. Its PVC construction, adjustable target screws and stainless-steel hardware provide a durable solution for pneumatic actuators and manually operated valves.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

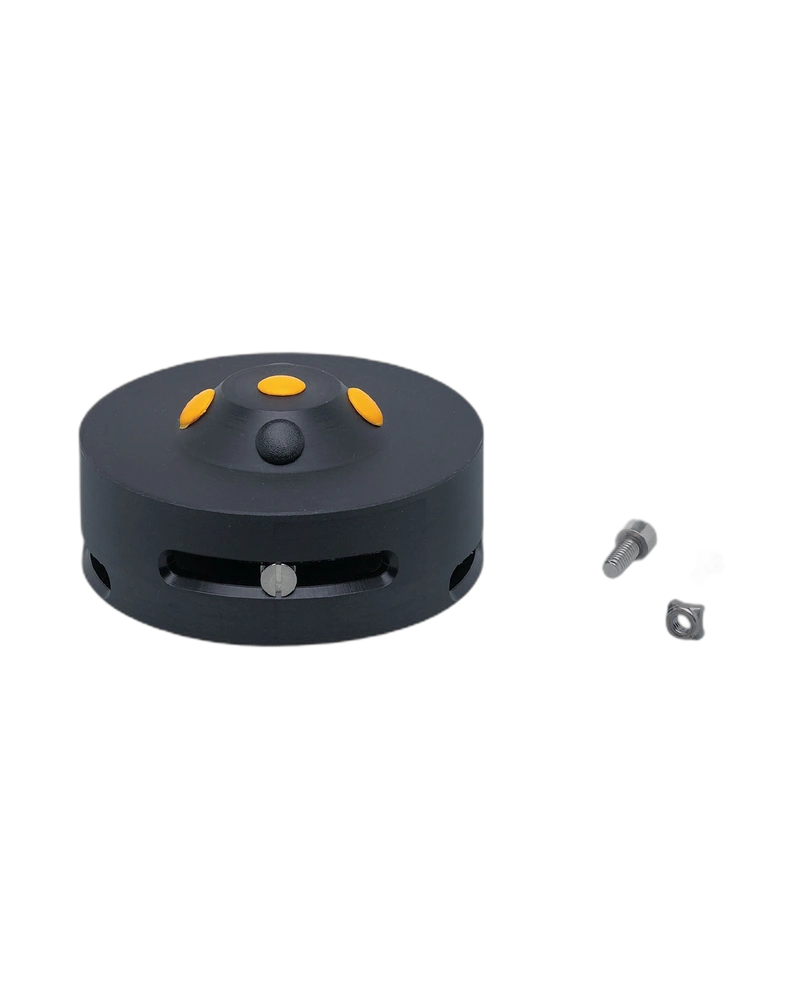

The E17119 is a large adjustable target puck developed for reliable position feedback on pneumatic actuators and manually operated valves. It provides a defined mechanical target for compatible valve position sensors.
The target screws can be adjusted to create suitable switching positions, providing flexibility when aligning the puck with valve position monitoring sensors.
The puck is designed for mechanical interfaces according to VDI/VDE 3845 and ISO 5211/DIN 3337, making it suitable for a wide range of quarter-turn actuator installations.
The target puck uses black PVC, while the screws are manufactured from stainless steel 316Ti / 1.4571. This combination provides a durable mechanical solution for industrial valve automation.
102 mm target puck diameter
Adjustable target screws
Designed for valve actuators
Suitable for pneumatic actuators
Suitable for manually operated valves
VDI/VDE 3845 compatible interface
ISO 5211 / DIN 3337 compatible
Black PVC target puck
Stainless steel 316Ti / 1.4571 screws
130 mm hole spacing
Pneumatic valve actuators
Quarter-turn valve systems
Butterfly valve automation
Ball valve automation
Valve position monitoring
Process automation systems
Industrial fluid handling
Manually operated valves
Factory automation
Industrial valve control
| Specification | Details |
|---|---|
| Product Code | E17119 |
| Product Type | Target puck |
| Model | Puck d=102mm |
| Target Puck Diameter | 102 mm |
| Hole Spacing | 130 mm |
| Actuator Shaft Height | 30 mm |
| Housing Colour | Black |
| Target Puck Material | PVC |
| Screw Material | Stainless steel 316Ti / 1.4571 |
| Design Standard | VDI/VDE 3845, ISO 5211 / DIN 3337 |
| Weight | 192.5 g |
| Pack Quantity | 1 piece |
