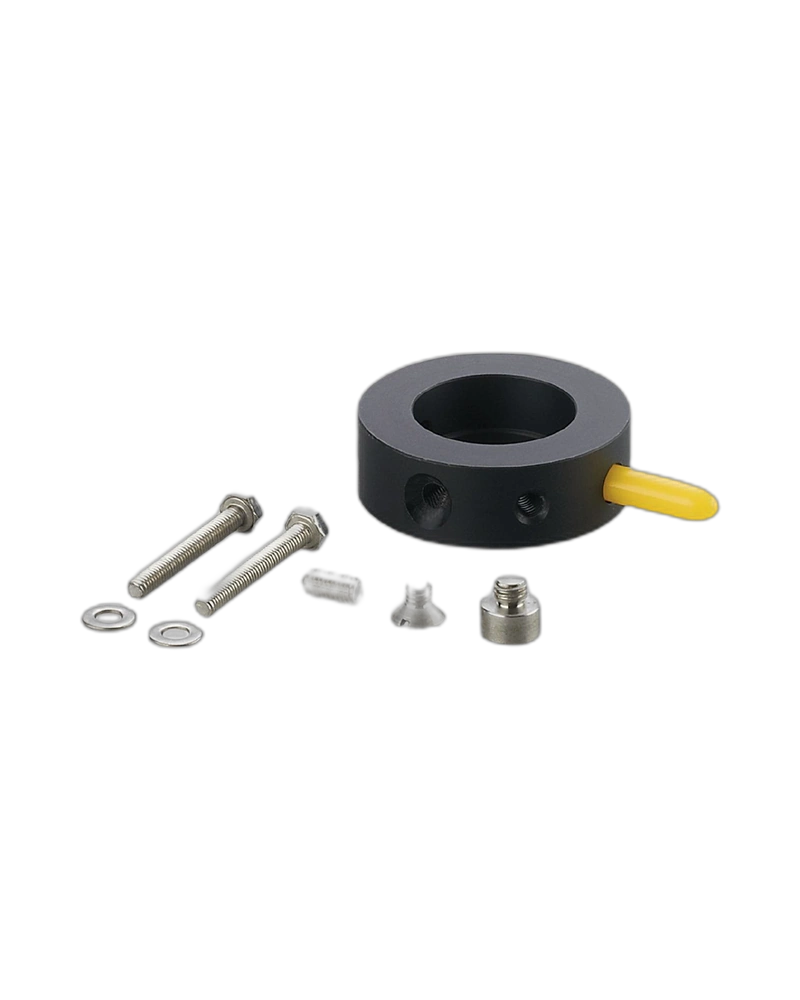

The IFM E17002 target puck is designed for position monitoring of butterfly valve actuators. With a 45 mm target puck diameter, it provides a mechanical switching interface for compatible valve position sensors. The puck and pointer use PVC, while stainless steel screws, washers and locking components provide durable mounting. It is a compact solution for reliable valve position indication in process automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E17002 is a target puck designed for butterfly valve actuators and position monitoring applications.
The target puck provides a mechanical target for compatible position sensors, allowing the automation system to identify valve operating positions.
The PUCK/IND/33 design is specifically intended for butterfly valve applications, supporting reliable integration with quarter-turn valve automation.
The target puck and pointer are manufactured from PVC, while the mounting screws, washers and locking components use stainless steel for reliable mechanical installation.
PUCK/IND/33 design
For butterfly valves
45 mm target puck diameter
PVC target puck
PVC pointer
Stainless steel mounting components
Compact mechanical design
Suitable for valve position sensing
Supplied with required mounting components
1-piece pack quantity
Butterfly valve position monitoring
Quarter-turn actuators
Process automation
Industrial valve systems
Fluid handling equipment
Valve control systems
Factory automation
Industrial process equipment
| Specification | Details |
|---|---|
| Product Code | E17002 |
| Product Type | Target puck for valve actuators |
| Model | PUCK/IND/33 |
| Application | Butterfly valve |
| Target Puck Diameter | 45 mm |
| Target Puck Material | PVC |
| Pointer Material | PVC |
| Screw Material | Stainless steel 1.4404 / 316L |
| Washer Material | Stainless steel 1.4404 / 316L |
| Set Screw | Stainless steel 1.4305 / 303 |
| Locking Pin | Stainless steel 1.4301 / 304 |
| Weight | 35 g |
| Pack Quantity | 1 piece |
