The IFM E12843 connecting cable provides a 3 m electrical connection solution for CAN bus, mobile machinery and vehicle applications. It features a halogen-free PUR cable, AMP connector and integrated 120 Ω CAN bus termination resistor. With 12–24 V DC operation and IP65/IP67 protection when connected, it provides dependable connectivity for demanding industrial and mobile automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12843 is a 3 m connecting cable with AMP connector designed for reliable electrical connections in mobile machinery, vehicles and industrial automation systems.
The cable incorporates a 120 Ω CAN bus termination resistor inside the AMP connector, simplifying connection requirements in compatible CAN bus installations.
The black, halogen-free PUR cable provides a robust connection solution for industrial equipment and mobile applications where dependable cable performance is required.
The cable provides IP65 and IP67 protection when the mating connector is plugged in and is designed for operation across a broad temperature range.
AMP connector cable
3 m cable length
12–24 V DC operating voltage
Integrated 120 Ω CAN bus termination
Halogen-free construction
Black PUR cable
Ø10 mm cable diameter
IP65 protection
IP67 protection with mating connector
TPU connector housing
CAN bus communication
Mobile machinery
Industrial vehicles
Factory automation
Machine control systems
Industrial electrical equipment
Mobile automation systems
Vehicle automation
| Specification | Details |
|---|---|
| Product Code | E12843 |
| Model | ADOGX060-E0003H06 |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Diameter | Ø10 mm |
| Supply Voltage | 12–24 V DC |
| Protection Class | III |
| Total Current Load | 17 A |
| Protection Rating | IP65 / IP67 |
| CAN Bus Termination | 120 Ω integrated |
| Connector | 1 x AMP connector, straight |
| Connector Housing | TPU, black |

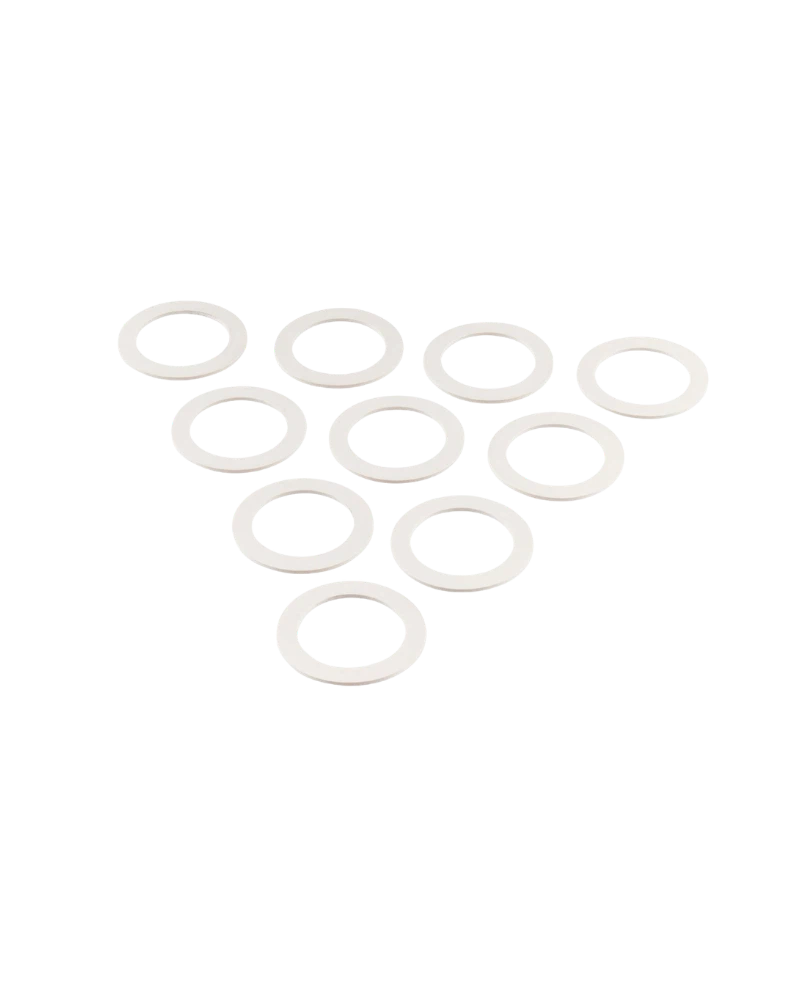

| Seal Material | Silicone |
| Ambient Temperature | -40 to +80 °C |
| Moving Application Temperature | -15 to +80 °C |
| Pack Quantity | 1 piece |
