The IFM E12835 connecting cable is a 5 m AMP connector cordset designed for industrial automation, CAN bus and mobile machinery applications. It uses a halogen-free PUR cable with 12–24 V DC operating voltage and supports up to 17 A total current load under specified conditions. IP65/IP67 protection, TPU connector housing and silicone sealing provide dependable industrial connection performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

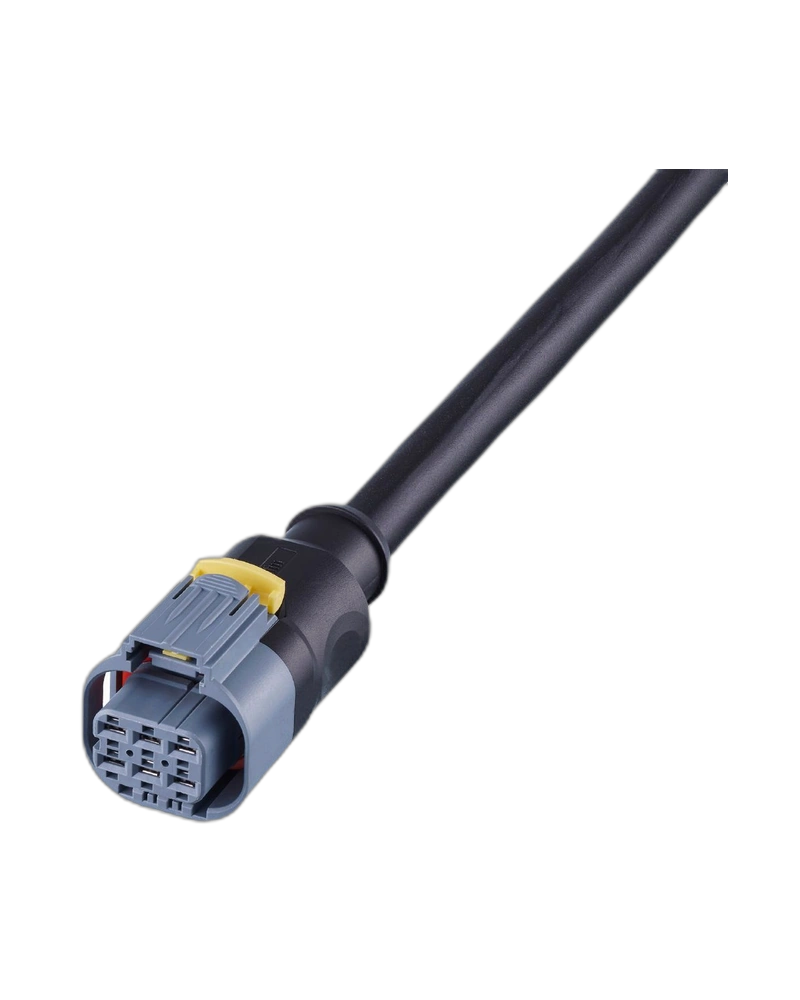

The E12835 is a 5 m connecting cable with AMP connector designed for reliable electrical connection in industrial automation and mobile machinery.
The cable is suitable for CAN bus applications and mobile equipment, providing a practical connection solution for automation and vehicle-related control systems.
The 5 m PUR cable is halogen-free and features a black TPU connector housing with silicone sealing for a durable industrial connection.
The cable operates at 12–24 V DC and provides IP65/IP67 protection when the connector is connected, supporting reliable operation in demanding environments.
AMP connector connecting cable
5 m cable length
PUR cable material
Halogen-free construction
12–24 V DC operating voltage
Protection class III
Up to 17 A total current load
IP65 protection
IP67 protection with connector connected
Suitable for CAN bus and mobile machinery
CAN bus systems
Mobile machinery
Industrial automation
Machine control systems
Electrical equipment
Automation control systems
Industrial communication
Mobile automation equipment
| Specification | Details |
|---|---|
| Product Code | E12835 |
| Product Type | Connecting cable with AMP connector |
| Model | ADOGX060-D0005H06 |
| Cable Length | 5 m |
| Cable Material | PUR |
| Connector | 1 x AMP connector, straight |
| Operating Voltage | 12–24 V DC |
| Protection Class | III |
| Maximum Total Current Load | 17 A |
| Wires 2 + 5 Current Load | 4 A |
| Ambient Temperature | -40 to +80 °C |
| Operating Temperature | -15 to +80 °C |
| Protection Rating | IP65 / IP67 with connector connected |
| Connector Housing | TPU, black |
| Seal Material | Silicone |
| Cable Diameter | Approx. 10 mm |
| Halogen-Free | Yes |
| Application | CAN bus, mobile machinery |
