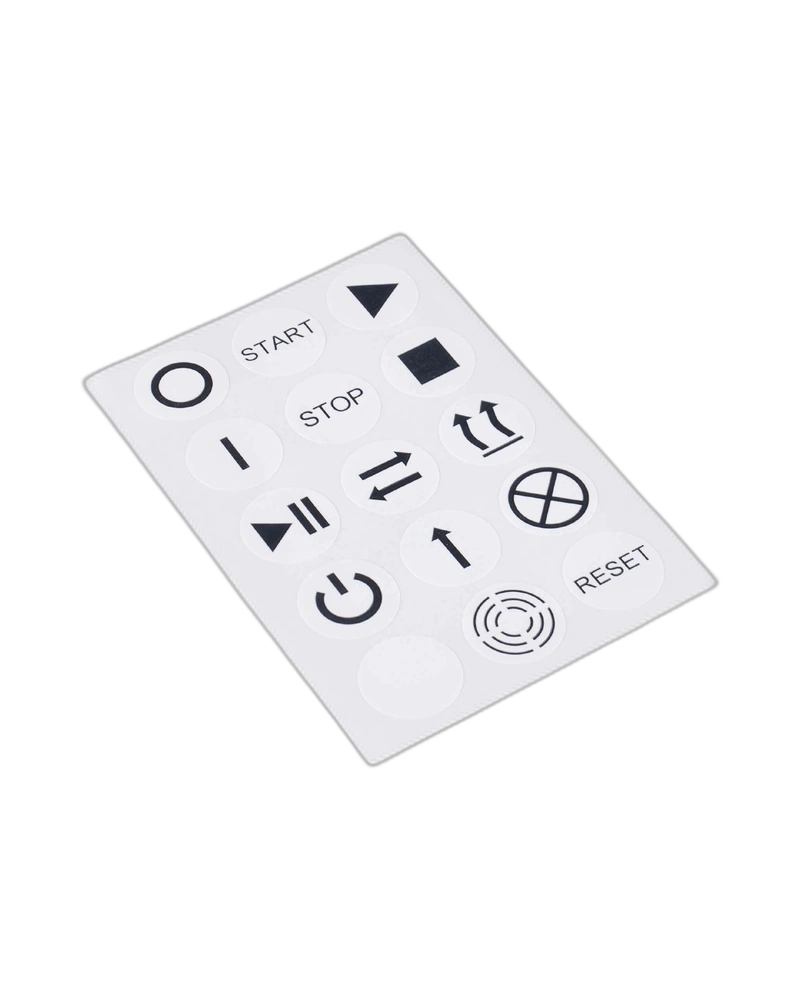

The IFM E12832 icon sheet provides symbol stickers for KTE M22 and KTV M22 touch sensors. Designed for mounting beneath a transparent symbol disc, the stickers provide clear visual identification of sensor functions. With a compact Ø15 mm format and a pack quantity of 10 pieces, this accessory is suitable for organizing and identifying operator controls in industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12832 is an icon sheet designed to provide function-identification stickers for compatible KTE and KTV touch sensors.
The symbol stickers help identify the function of touch sensors, improving visual clarity and making operator controls easier to recognize.
The stickers are designed for KTE M22 and KTV M22 sensor types and can be mounted underneath a transparent symbol disc.
The product is supplied as a 10-piece pack, providing multiple symbols for control-panel and machine-interface applications.
ICON SHEET KT design
Symbol stickers for KTE and KTV
Compatible with KTE M22
Compatible with KTV M22
Designed for mounting beneath transparent symbol discs
Clear function identification
Compact Ø15 mm format
Suitable for operator interfaces
10 pieces per pack
Designed for industrial control applications
Industrial control panels
Machine operating stations
Touch sensor identification
Operator interfaces
Factory automation
Control cabinet equipment
Machine control systems
Industrial switching applications
| Specification | Details |
|---|---|
| Product Code | E12832 |
| Product Type | Symbol sticker |
| Model | ICON SHEET KT |
| Compatible Types | KTE M22, KTV M22 |
| Mounting | Beneath transparent symbol disc |
| Dimensions | Ø15 mm |
| Weight | 12 g |
| Pack Quantity | 10 pieces |
