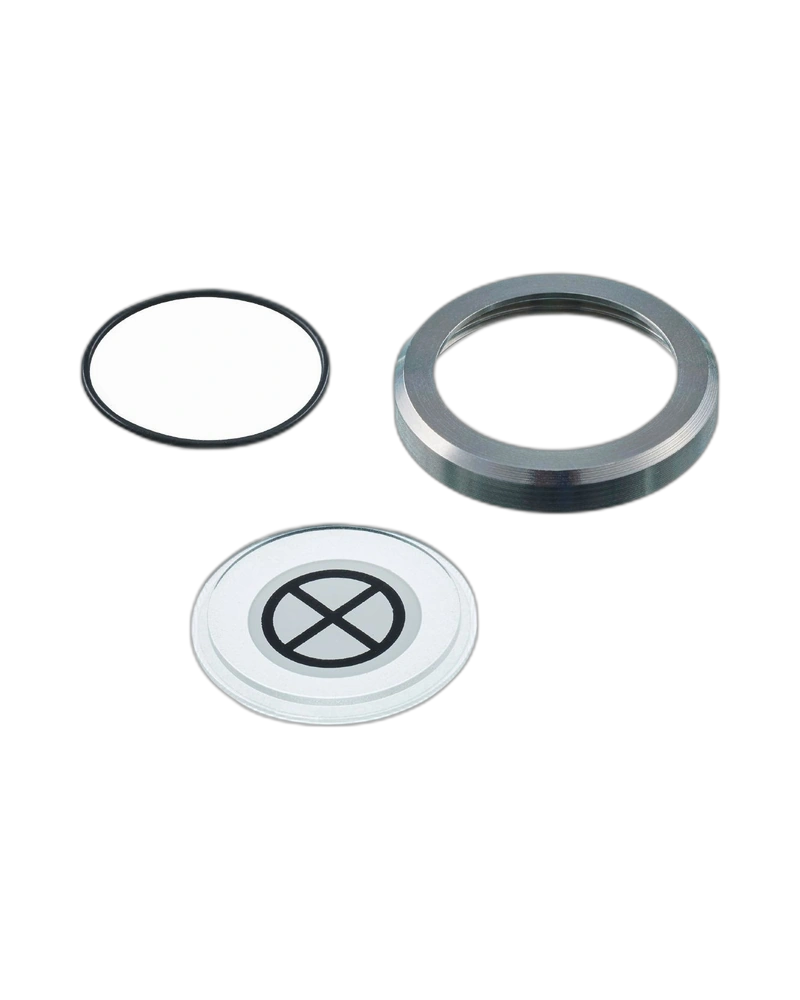

The IFM E12827 symbol disc provides clear function identification for KTE M22 and KTV M22 touch sensors. It features a transparent design with a lamp symbol and stainless steel housing, making the function clearly visible while providing robust protection for industrial environments. Screw mounting enables straightforward installation and reliable positioning on compatible touch sensor assemblies.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12827 is a symbol disc accessory designed for IFM KTE M22 and KTV M22 touch sensors, providing clear visual identification of the sensor function.
The integrated lamp symbol makes the sensor function easy to identify, supporting clear operation and improved usability on industrial control panels.
The housing combines stainless steel 316L / 1.4404 and PA materials, providing a durable solution for demanding industrial environments.
The symbol disc is designed for screw connection, allowing straightforward mounting on compatible KTE and KTV touch sensors.
Symbol disc for touch sensors
Transparent stainless light design
Lamp symbol identification
Compatible with KTE M22
Compatible with KTV M22
Stainless steel 316L / 1.4404 housing
PA construction components
NR sealing material
Ø29.8 mm dimensions
Screw connection mounting
Touch sensor identification
Industrial control panels
Machine operating stations
Factory automation
Operator interfaces
Industrial switching systems
Control cabinet applications
Machine control equipment
| Specification | Details |
|---|---|
| Product Code | E12827 |
| Product Type | Symbol disc for touch sensors |
| Design | Transparent stainless light |
| Compatible Types | KTE M22, KTV M22 |
| Symbol | Lamp symbol |
| Dimensions | Ø29.8 mm |
| Housing Material | Stainless steel 316L / 1.4404, PA |
| Sealing Material | NR |
| Weight | 14.3 g |
| Pack Quantity | 1 piece |
