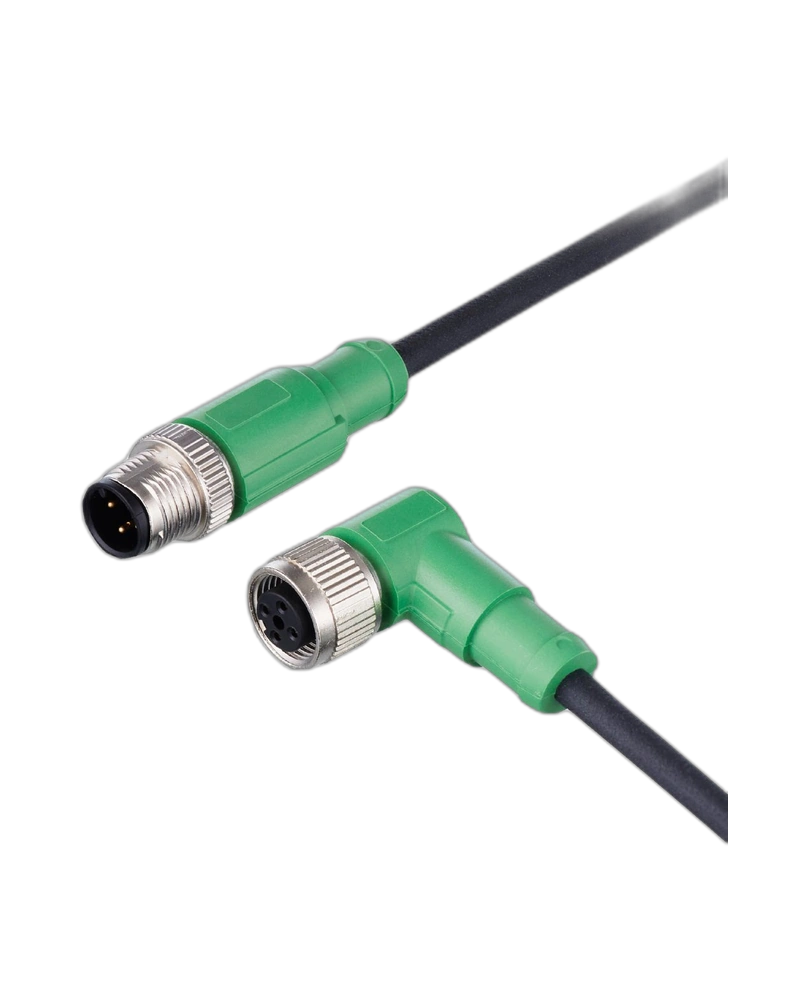

IFM E12782 is a connection cable with angled M12x1 connectors designed for industrial sensor and automation connections. The cable features screened construction, gold-plated contacts, silicone-free and halogen-free materials, drag-chain suitability, and IP65/IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E12782 is designed as a robust industrial connection cable for reliable equipment interconnection. It uses angled M12x1 connectors to support practical installation in confined machine spaces. The cable construction is screened and suitable for demanding automation applications. Gold-plated contacts support dependable electrical connection. The cable is also specified as silicone-free and halogen-free.
The cable is specified for operating voltages below 48 V AC or 60 V DC. Its maximum total current load is 4 A according to the IFM product documentation. This makes it suitable for compatible low-voltage sensor and automation connections. Correct electrical compatibility must be confirmed before installation. The screened construction supports improved signal integrity in suitable applications.
E12782 is designed for industrial operating conditions from -25 °C to 80 °C, including moving applications. The IP65/IP67 protection rating supports use in environments where dust and water exposure may occur. Drag-chain suitability makes the cable appropriate for applications involving repeated movement. The robust construction supports reliable machine integration. Proper cable routing remains important for service life.
Angled M12x1 connectors
Screened cable
Gold-plated contacts
Silicone-free construction
Halogen-free construction
Drag-chain suitability
IP65/IP67 protection
Industrial sensor connection
Factory automation
Machine tools
Moving machine applications
Drag-chain systems
Control equipment
Industrial signal transmission
| Specification | Details |
|---|---|
| Product Code | E12782 |
| Brand | IFM |
| Product Type | Connection Cable |
| Product Designation | VDOAH040ZDS0001K04STGH040ZDS |
| Connector Type | M12x1 |
| Connector Design | Angled |
| Cable Type | Screened |
| Contact Material | Gold-plated |
| Silicone-free | Yes |
| Halogen-free | Yes |
| Drag-chain Suitable | Yes |
| Operating Voltage | <48 V AC / <60 V DC |
| Max. Current Load | 4 A |
| Operating Temperature | -25 to 80 °C |
| Moving Temperature | -25 to 80 °C |
| Protection Rating | IP65 / IP67 |
| Application | Industrial automation |
| Cable Construction | Industrial |
| Signal Type | Compatible sensor/automation signals |
| Installation | Fixed / moving |
| Mechanical Design | Angled connectors |
| Environmental Resistance | Industrial |
| Maintenance | Low |
| Manufacturer | ifm electronic |
