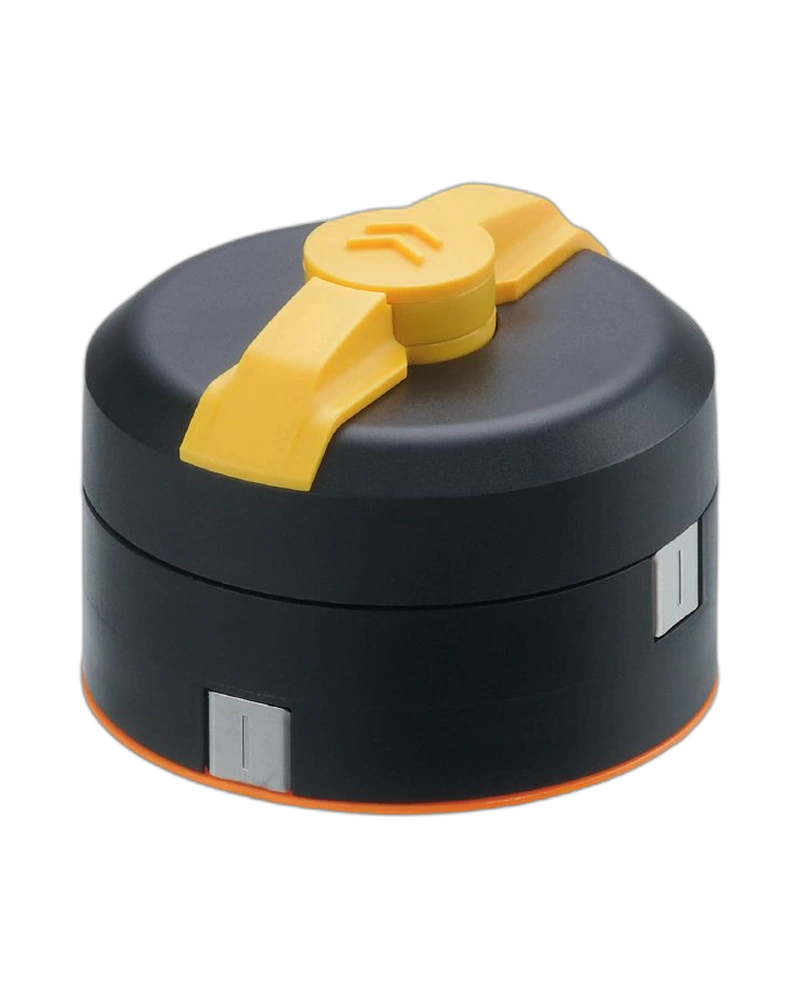

IFM E12724 is a 65 mm basic target puck designed for valve actuators and suitable mechanical interfaces. IFM specifies it for pneumatic actuators or manually operated valves using VDI/VDE 3845 and ISO 5211 / DIN 3337 interfaces. The puck has a 65.6 mm diameter, 80 mm hole spacing, 30 mm valve-shaft height and weighs 79.8 g. It uses black PA 6, stainless-steel metal parts and a yellow PA 6 position indicator.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E12724 is an IFM target puck for valve actuators. It is designed for mechanical interfaces used with pneumatic actuators or manually operated valves. IFM specifies compatibility with VDI/VDE 3845 and ISO 5211 / DIN 3337 interfaces. The puck provides a mechanical target arrangement for compatible valve sensing systems. Its 65 mm class design supports suitable valve actuator installations.
The E12724 uses a black PA 6 puck with stainless-steel metal parts and a yellow PA 6 position indicator. IFM specifies a puck diameter of 65.6 mm and a hole spacing of 80 mm. The specified valve-shaft height is 30 mm. Its design provides a mechanical interface for compatible valve actuator arrangements. The construction is intended for practical industrial valve installations.
The target puck is mounted onto suitable valve actuator interfaces to provide target positions for compatible valve sensors. Its mechanical arrangement supports valve position indication and sensing. The puck can be used with compatible quarter-turn actuator installations. Correct interface dimensions and mounting arrangement should be verified before installation. The design supports practical automation of valve position monitoring.
E12724 provides a dedicated mechanical target solution for compatible valve actuator installations. Its standardized interface support simplifies integration with suitable actuators. The stainless-steel metal components provide a robust mechanical construction. IFM specifies a tightening torque of 2.5 to 3 Nm. The supplied mounting screw is an M6 × 25 mm stainless-steel screw.
IFM target puck
Product code E12724
PUCK 65MM BASIC
Designed for valve actuators
Suitable for pneumatic actuators
Suitable for manually operated valves
VDI/VDE 3845 interface compatibility
ISO 5211 / DIN 3337 compatibility
65.6 mm puck diameter
80 mm hole spacing
30 mm valve-shaft height
PA 6 puck construction
Stainless-steel metal parts
Yellow PA 6 position indicator
Valve position sensing
Pneumatic valve actuators
Manual valve monitoring
Quarter-turn valve applications
Process automation
Industrial valve systems
Factory automation
Fluid-control systems
Valve monitoring
Industrial process equipment
| Specification | Details |
|---|---|
| Product Code | E12724 |
| Product Type | Target puck for valve actuators |
| Model | PUCK 65MM BASIC |
| Brand | IFM |
| Application | Valve actuator position sensing |
| Interface | VDI/VDE 3845 |
| Additional Interface | ISO 5211 / DIN 3337 |
| Puck Diameter | 65.6 mm |
| Nominal Puck Size | 65 mm |
| Hole Spacing | 80 mm |
| Valve Shaft Height | 30 mm |
| Weight | 79.8 g |
| Puck Material | PA 6, black |
| Metal Parts | Stainless steel |
| Position Indicator | PA 6, yellow |
| Tightening Torque | 2.5 to 3 Nm |
| Included Screw | 1 × M6 × 25 mm |
| Screw Material | Stainless steel |
| Screw Standard | EN ISO 7380-2:2011 |
| Mounting | Mechanical |
| Valve Type | Pneumatic/manual actuator |
| Function | Targeting / position indication |
| Electrical Connection | None |
| Power Requirement | None |
| Product Family | Target pucks for valve actuators |
