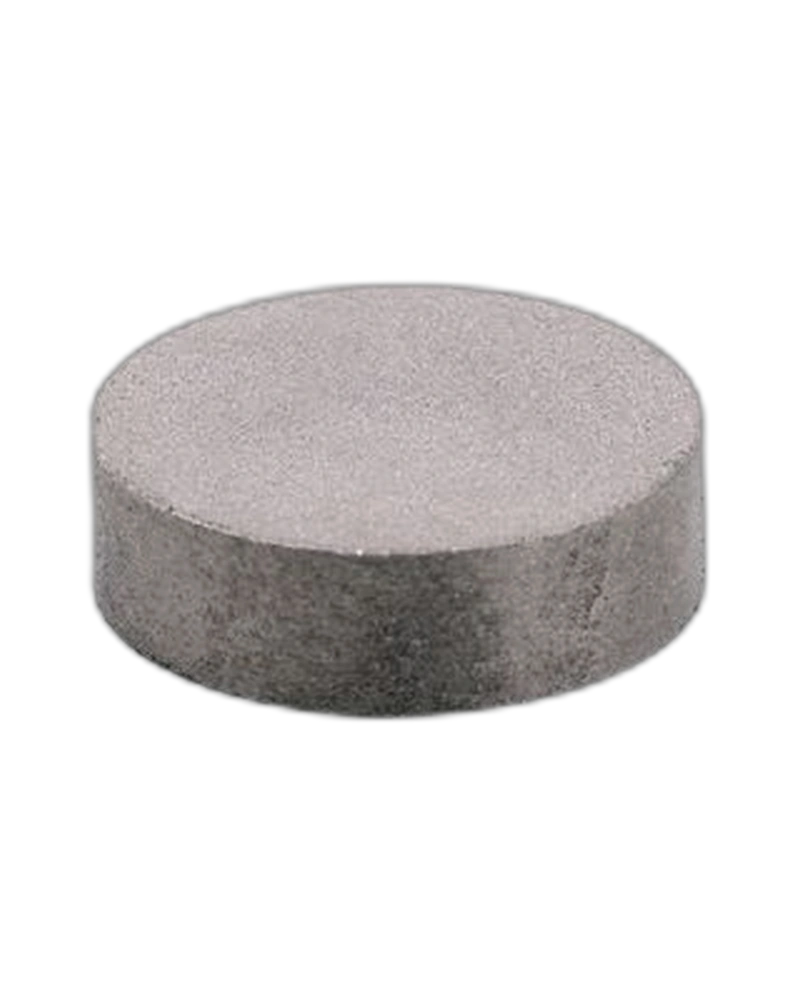

IFM E12705 is a damping magnet designed for use with compatible magnetic sensors and industrial sensing applications. The MAGNET M1.0 IATA E10749 5X is supplied in a pack of five pieces and uses samarium cobalt construction. It has a diameter of 10 mm and a length of 3 mm, with a magnetic field strength of 200 mT. The specified ambient temperature range is -50 to 350 °C
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E12705 is an IFM damping magnet intended for use with magnetic sensors. IFM specifies it for applications where a long sensing range is required. The magnet uses samarium cobalt material and is supplied as a five-piece pack. Its compact Ø10 mm by 3 mm dimensions make it suitable for appropriate sensor installations. IFM specifies an ambient operating temperature range of -50 to 350 °C.
The magnet provides a magnetic target for compatible magnetic sensing systems. Its samarium cobalt construction supports the specified magnetic characteristics and wide temperature range. The defined dimensions allow it to be integrated into suitable mechanical arrangements. The magnet should be positioned according to the sensor manufacturer's installation requirements. Proper alignment is important for achieving the intended sensing performance.
E12705 provides a magnetic field strength of 200 mT according to IFM's published data. Its specified operating temperature range is -50 to 350 °C. The compact construction supports installation in applications where available space is limited. It is designed for use in combination with magnetic sensors. These characteristics make it useful for demanding industrial sensing applications.
The compact magnet format simplifies integration with compatible sensing systems. The five-piece pack provides multiple units for installation or replacement requirements. Its standardized dimensions help with mechanical planning. Correct sensor-to-magnet positioning supports reliable detection. The product is useful for automation, machine monitoring and industrial sensing applications.
IFM damping magnet
Product code E12705
MAGNET M1.0 IATA E10749 5X
Samarium cobalt magnet
Magnetic field strength 200 mT
Diameter 10 mm
Length 3 mm
Ambient temperature -50 to 350 °C
Pack quantity 5 pieces
Designed for magnetic sensors
Magnetic sensor systems
Industrial automation
Position sensing
Machine monitoring
Factory equipment
Automation machinery
Sensor triggering
Industrial detection systems
Machine-building applications
Replacement magnet requirements
| Specification | Details |
|---|---|
| Product Code | E12705 |
| Product Type | Damping magnet |
| Model | MAGNET M1.0 IATA E10749 5X |
| Brand | IFM |
| Application | Magnetic sensor systems |
| Magnet Type | Damping magnet |
| Material | Samarium cobalt |
| Diameter | Ø10 mm |
| Length | 3 mm |
| Magnetic Field Strength | 200 mT |
| Weight | 51.9 g |
| Ambient Temperature | -50 to 350 °C |
| Pack Quantity | 5 pcs |
| Sensor Compatibility | Magnetic sensors |
| Installation | Mechanical |
| Target Function | Magnetic sensing target |
| Construction | Permanent magnet |
| Polarity | Model-specific |
| Mounting Method | Application-dependent |
| Housing | Magnetic element |
| Electrical Connection | None |
| Power Requirement | None |
| Maintenance | Minimal |
| Application Environment | Industrial |
| Product Category | Actuators, targets, magnets and tags |
