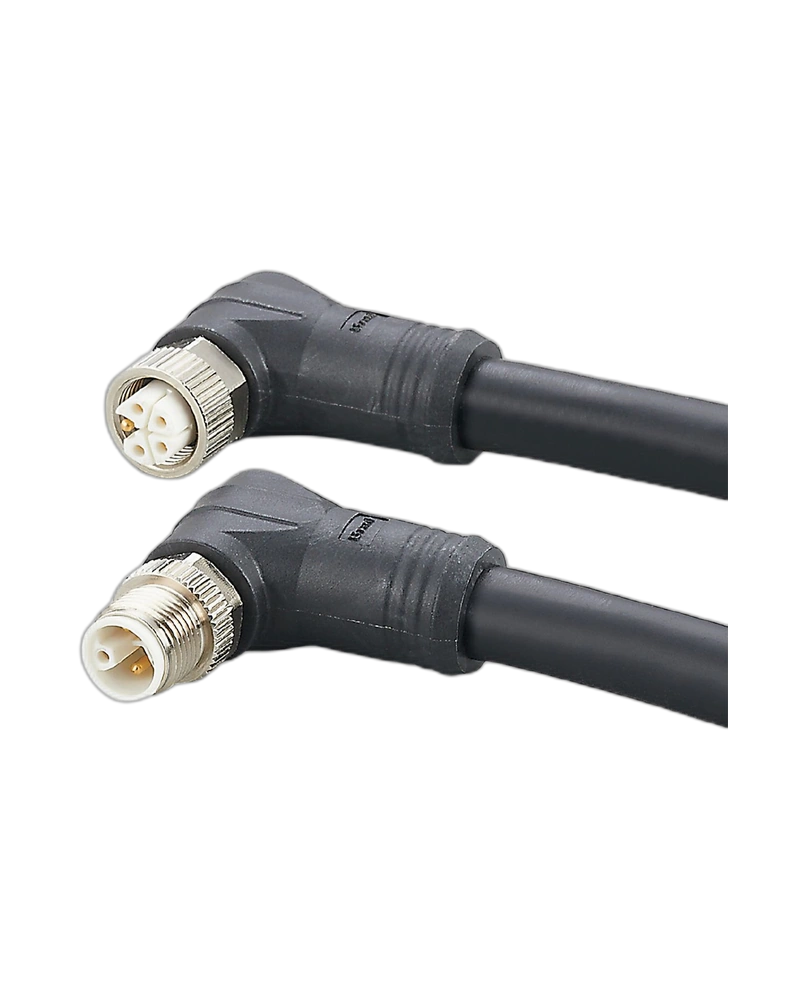

The IFM E12669 is a 5 m L-coded M12 power connection cable designed for reliable power distribution in industrial automation systems. Its angled M12 connection, five gold-plated contacts and 5 × 2.5 mm² cable provide dependable connectivity. IP67 protection and a -40 °C to +90 °C operating range support use in demanding factory environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12669 is designed to provide dependable power connections for field modules, industrial machines and factory automation equipment.
The 5 m cable length offers increased installation flexibility where connected automation components are positioned at greater distances.
The angled M12 design supports convenient cable routing and can help simplify installation around machine components.
IP67 protection, FKM sealing and durable connector construction help support reliable operation in industrial environments.
5 m cable length
Angled M12 connector
L-coded power cable
5 gold-plated contacts
5 × 2.5 mm² cable
63 V DC operating voltage
16 A maximum current load
IP67 protection rating
-40 °C to +90 °C ambient temperature
TPE connector body
Factory automation
Industrial power supply
Field module connectivity
Production machinery
Machine control systems
Industrial electrical installations
| Specification | Details |
|---|---|
| Product Code | E12669 |
| Product Type | Connection cable |
| Cable Length | 5 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | L-coded |
| Contacts | 5, gold-plated |
| Cable | PVC/PUR, black |
| Cable Size | 5 × 2.5 mm² |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Rating | IP67 |
| Ambient Temperature | -40 °C to +90 °C |
| Connector Body | TPE |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
