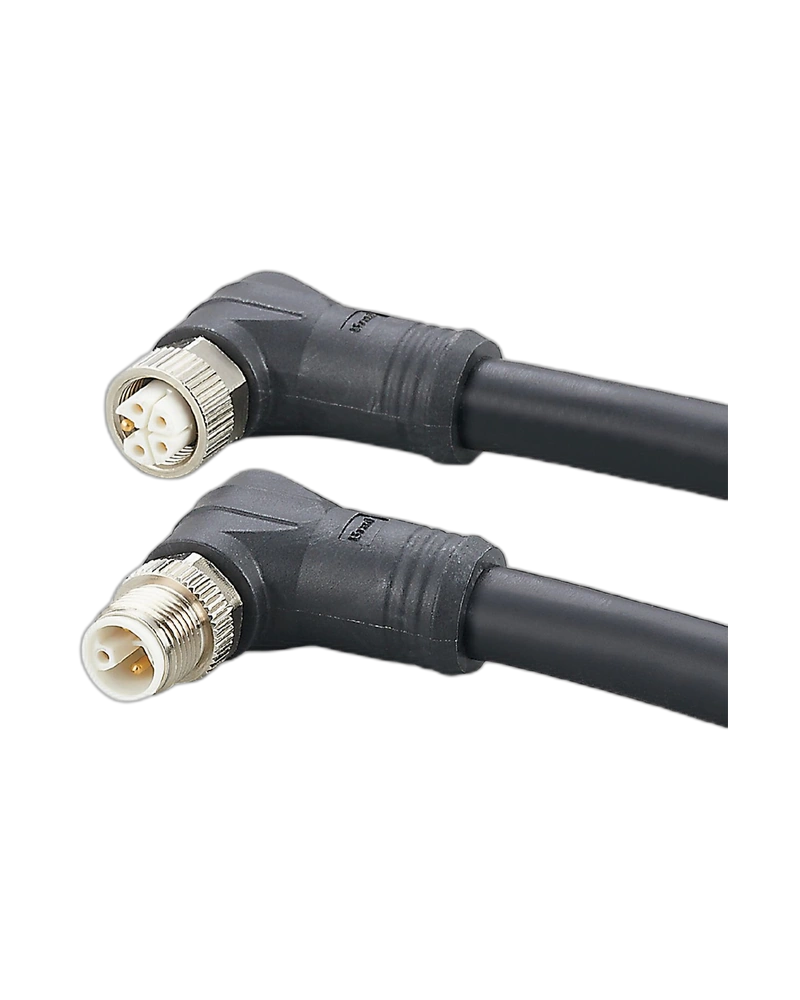

The IFM E12668 is a 2 m L-coded M12 power connection cable developed for industrial automation and factory power applications. It features angled M12 connectivity, five gold-plated contacts and 5 × 2.5 mm² conductors. With IP67 protection and a wide -40 °C to +90 °C operating range, it is designed for dependable industrial connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12668 supports reliable power connectivity for compatible automation components, field modules and industrial equipment.
The 2 m cable provides useful reach between connected devices while maintaining practical cable routing for machine installations.
The angled M12 connector arrangement allows convenient routing around automation components and supports flexible installation.
The cable incorporates robust connector materials, gold-plated contacts, FKM sealing and IP67 protection for demanding operating environments.
2 m cable length
Angled M12 connectors
L-coded power connection
5 gold-plated contacts
5 × 2.5 mm² cable
63 V DC operating voltage
16 A maximum current load
IP67 protection
-40 °C to +90 °C ambient temperature
TPE moulded connector body
Factory automation systems
Industrial machines
Field module connectivity
Power distribution
Machine control equipment
Industrial automation installations
| Specification | Details |
|---|---|
| Product Code | E12668 |
| Product Type | Connection cable |
| Cable Length | 2 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | L-coded |
| Contacts | 5, gold-plated |
| Cable | PVC/PUR, black |
| Cable Size | 5 × 2.5 mm² |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Rating | IP67 |
| Ambient Temperature | -40 °C to +90 °C |
| Connector Body | TPE |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
