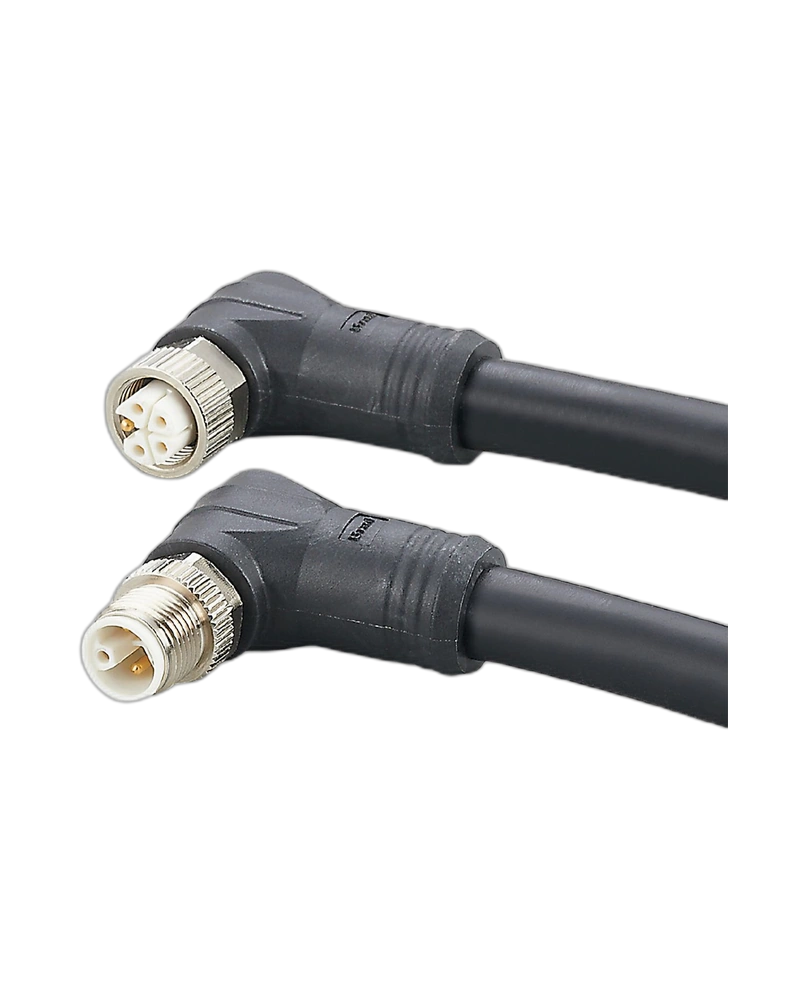

The IFM E12667 is a 1 m industrial power connection cable featuring angled L-coded M12 connectivity. Designed for factory automation and field-level power applications, it combines five gold-plated contacts, a 5 × 2.5 mm² cable and IP67 protection. Its compact length and angled connection design provide flexible installation in industrial machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12667 is designed to provide dependable power connectivity between compatible automation components and field modules.
The 1 m cable length offers a practical balance between installation flexibility and compact cable routing in industrial machinery.
The angled M12 connector arrangement helps simplify routing around machine components and supports installation in space-constrained areas.
IP67 protection, durable moulded components and FKM sealing support reliable use in demanding factory environments.
1 m cable length
Angled M12 connection
L-coded power cable
5 gold-plated contacts
5 × 2.5 mm² cable
63 V DC operating voltage
16 A maximum current load
IP67 protection
-40 °C to +90 °C ambient temperature
TPE connector body
Factory automation
Industrial machines
Field module power supply
Machine control systems
Industrial electrical equipment
Automation power distribution
| Specification | Details |
|---|---|
| Product Code | E12667 |
| Product Type | Connection cable |
| Cable Length | 1 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | L-coded |
| Contacts | 5, gold-plated |
| Cable | PVC/PUR, black |
| Cable Size | 5 × 2.5 mm² |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Rating | IP67 |
| Ambient Temperature | -40 °C to +90 °C |
| Connector Body | TPE |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
