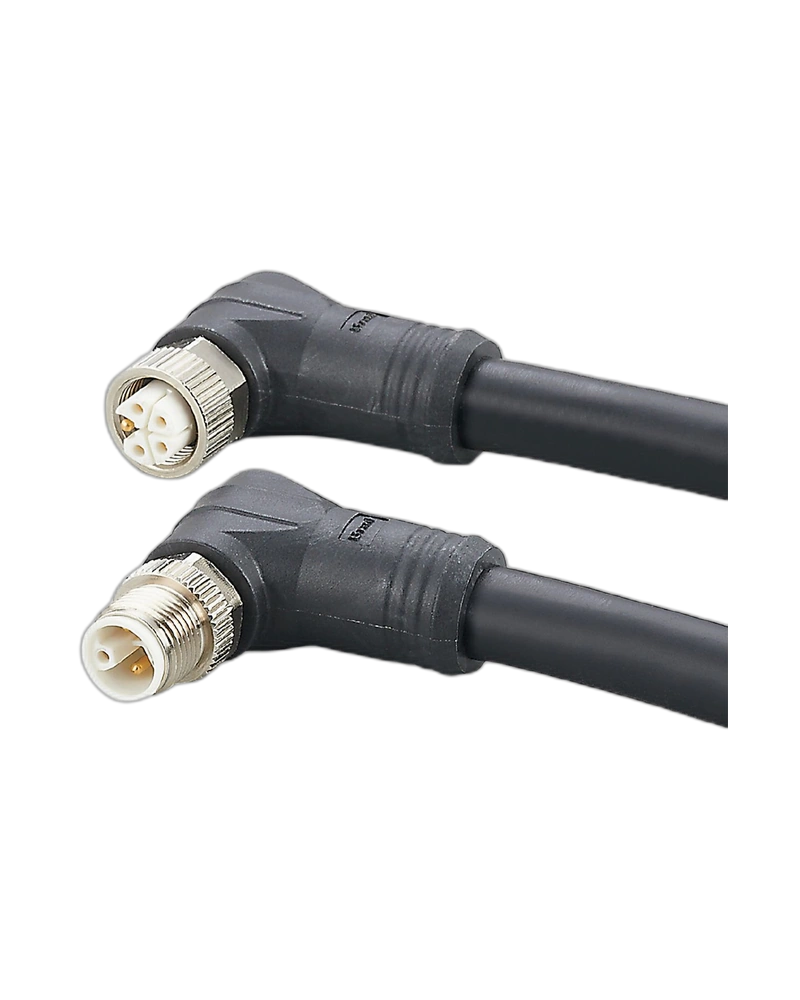

The IFM E12666 is a 0.5 m L-coded M12 power connection cable designed for compact industrial automation applications. It uses angled M12 connections, five gold-plated contacts and 5 × 2.5 mm² conductors. IP67 protection and robust construction provide dependable performance for field modules, machines and industrial power connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12666 provides a 0.5 m cable length for short-distance power connections between compatible industrial components.
Both connection points use an angled M12 arrangement, supporting flexible cable routing and convenient installation in restricted spaces.
Gold-plated contacts help provide reliable electrical connectivity, while the L-coded design is intended for suitable industrial power applications.
The cable uses a durable PVC/PUR construction with TPE moulded components, nickel-plated brass locking and FKM sealing.
0.5 m cable length
Angled M12 connectors
L-coded power cable
5 gold-plated contacts
5 × 2.5 mm² cable
63 V DC operating voltage
16 A maximum current load
IP67 protection rating
-40 °C to +90 °C temperature range
FKM sealing material
Industrial automation
Compact machine installations
Field module connections
Factory automation equipment
Industrial power distribution
Machine control systems
| Specification | Details |
|---|---|
| Product Code | E12666 |
| Product Type | Connection cable |
| Cable Length | 0.5 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | L-coded |
| Contacts | 5, gold-plated |
| Cable | PVC/PUR, black |
| Cable Size | 5 × 2.5 mm² |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Rating | IP67 |
| Ambient Temperature | -40 °C to +90 °C |
| Connector Body | TPE |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
