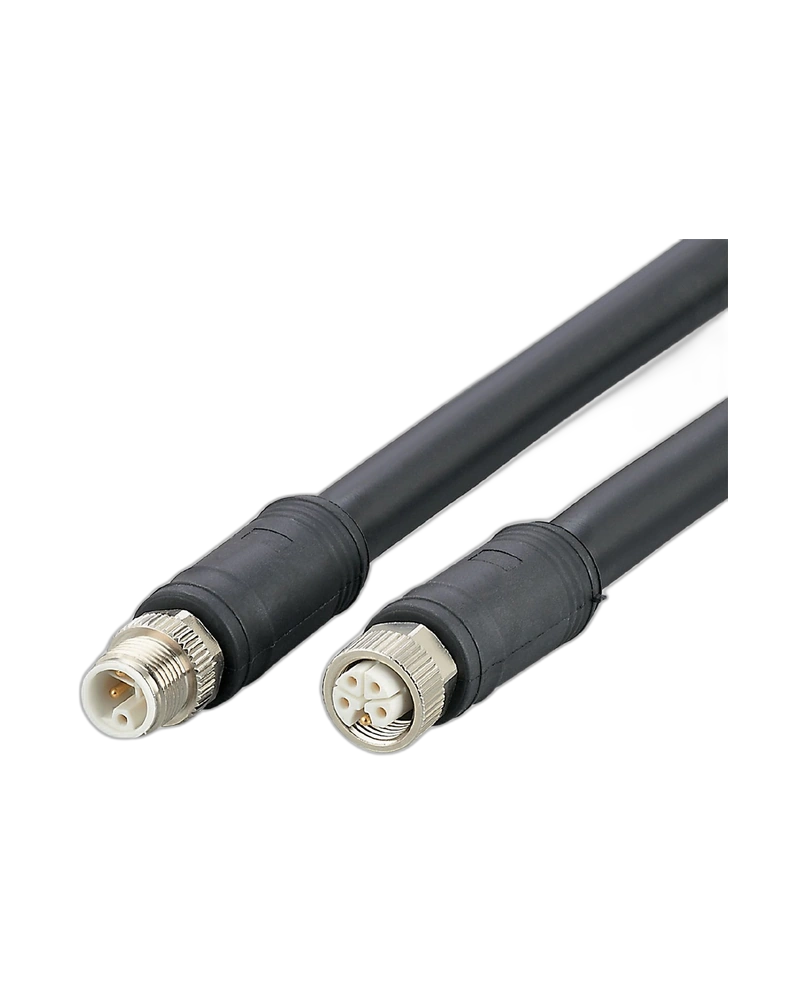

The IFM E12664 is a long-length industrial power connection cable intended for reliable connectivity in automation and factory applications. With a 20 m cable length, L-coded M12 connection and gold-plated contacts, it supports extended installation requirements while providing IP67 protection and robust construction for industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12664 is designed for industrial power connections where longer cable routing is required between automation components.
The 20 m configuration provides extended reach for larger machines, production lines and distributed automation installations.
The L-coded M12 interface and gold-plated contacts support dependable electrical connection for compatible industrial equipment.
The cable assembly is designed with durable connector materials and environmental protection suitable for demanding factory conditions.
20 m cable length
L-coded M12 power connection
5 gold-plated contacts
5 × 2.5 mm² cable construction
63 V DC operating voltage
16 A maximum current load
IP67 protection
-40 °C to +90 °C ambient temperature
PVC/PUR black cable
Industrial-grade TPE connector construction
Large automation machines
Factory automation systems
Industrial power distribution
Production line equipment
Field-level power connections
Industrial control installations
| Specification | Details |
|---|---|
| Product Code | E12664 |
| Product Type | Connection cable |
| Cable Length | 20 m |
| Connector | M12 |
| Coding | L-coded |
| Contacts | 5, gold-plated |
| Cable | PVC/PUR, black |
| Cable Size | 5 × 2.5 mm² |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Rating | IP67 |
| Ambient Temperature | -40 °C to +90 °C |
| Connector Body | TPE |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
