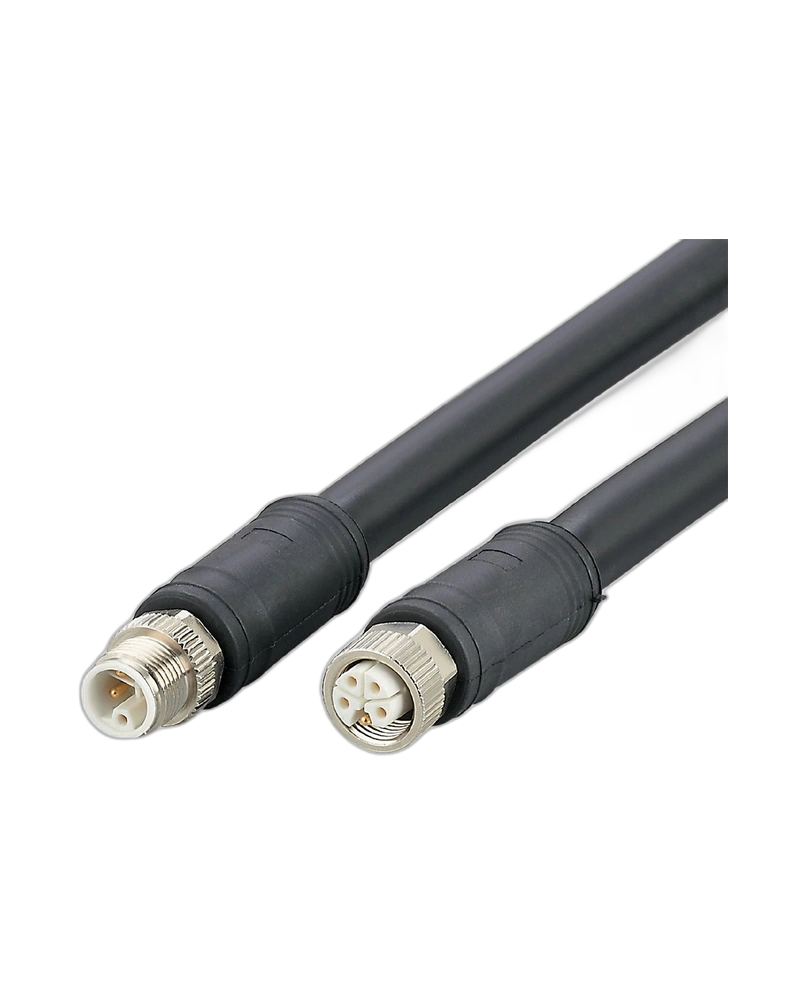

The IFM E12663 is a 10 m industrial connection cable designed for power connectivity in factory automation applications. It features an L-coded M12 interface, five gold-plated contacts and a durable PVC/PUR cable with 5 × 2.5 mm² conductors. IP67 protection and a wide temperature range make it suitable for demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12663 provides reliable power connectivity for field-level automation equipment and industrial power distribution systems.
Its 10 m cable length provides extended installation flexibility where automation devices and power distribution points are positioned farther apart.
The L-coded M12 interface uses gold-plated contacts and robust moulded components to support dependable electrical connections.
IP67 protection, FKM sealing and durable connector materials help the cable withstand demanding industrial operating conditions.
10 m cable length
L-coded M12 connection
5 gold-plated contacts
5 × 2.5 mm² cable
Operating voltage up to 63 V DC
Maximum current load of 16 A
IP67 protection rating
-40 °C to +90 °C operating temperature
PVC/PUR black cable
Straight and angled connector arrangement
Industrial automation
Factory automation systems
Field module power connections
Machine-building applications
Industrial control systems
Power distribution installations
| Specification | Details |
|---|---|
| Product Code | E12663 |
| Product Type | Connection cable |
| Cable Length | 10 m |
| Connector | M12 |
| Coding | L-coded |
| Contacts | 5, gold-plated |
| Cable | PVC/PUR, black |
| Cable Size | 5 × 2.5 mm² |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Rating | IP67 |
| Ambient Temperature | -40 °C to +90 °C |
| Connector Body | TPE |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
