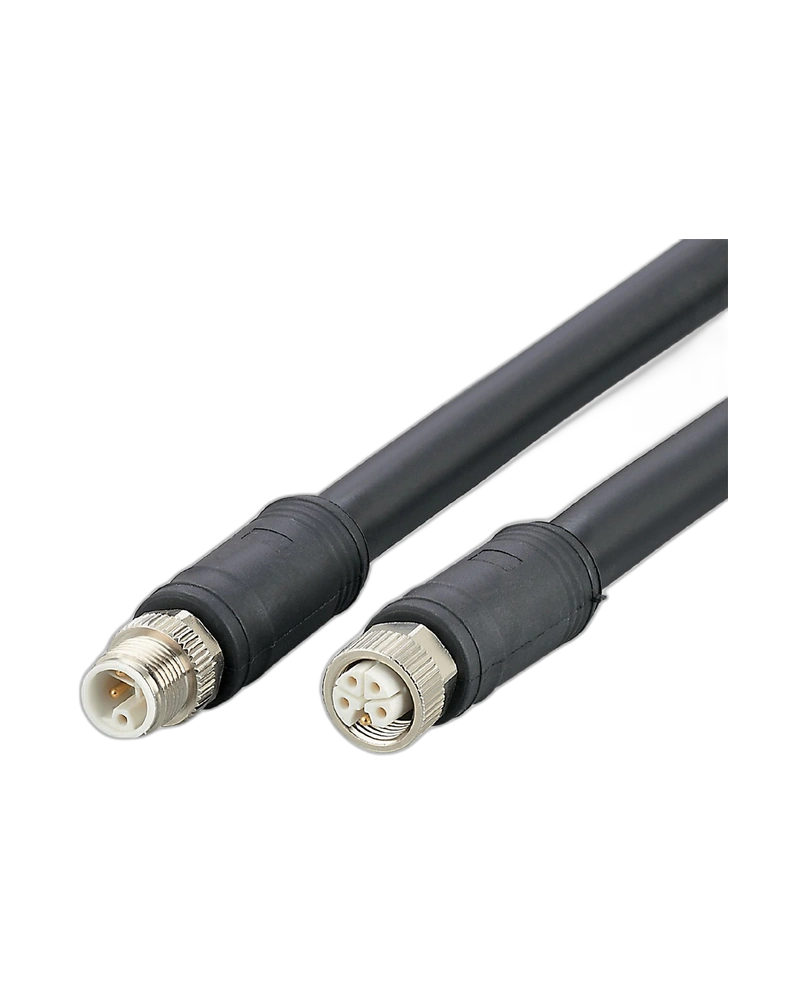

The IFM E12662 is an industrial L-coded M12 power connection cable designed for reliable energy distribution in factory automation systems. Its 5 m cable length provides additional installation flexibility, while gold-plated contacts, IP67 protection and durable connector materials support dependable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12662 is designed to provide dependable electrical connectivity for industrial automation equipment and field-level power applications.
The cable uses an L-coded M12 connection with gold-plated contacts for reliable electrical contact and improved connection durability.
Its PVC/PUR black cable, TPE moulded body, nickel-plated brass locking components and FKM sealing provide a robust construction suitable for industrial environments.
With a 5 m cable length, the E12662 offers useful installation reach for automation equipment, field modules and machine-based power connections.
L-coded M12 power cable
5 m cable length
5-pin gold-plated contacts
5 × 2.5 mm² cable
Operating voltage up to 63 V DC
Maximum current load of 16 A
IP67 protection
-40 °C to +90 °C ambient temperature range
PVC/PUR black cable construction
TPE connector body and FKM sealing
Factory automation
Industrial power distribution
Field module connectivity
Machine automation systems
Control equipment
Industrial electrical installations
| Specification | Details |
|---|---|
| Product Code | E12662 |
| Product Type | Connection cable |
| Cable Length | 5 m |
| Connector | M12 |
| Coding | L-coded |
| Contacts | 5, gold-plated |
| Cable | PVC/PUR, black |
| Cable Size | 5 × 2.5 mm² |
| Operating Voltage | 63 V DC |
| Maximum Current | 16 A |
| Protection Rating | IP67 |
| Ambient Temperature | -40 °C to +90 °C |
| Connector Body | TPE |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
