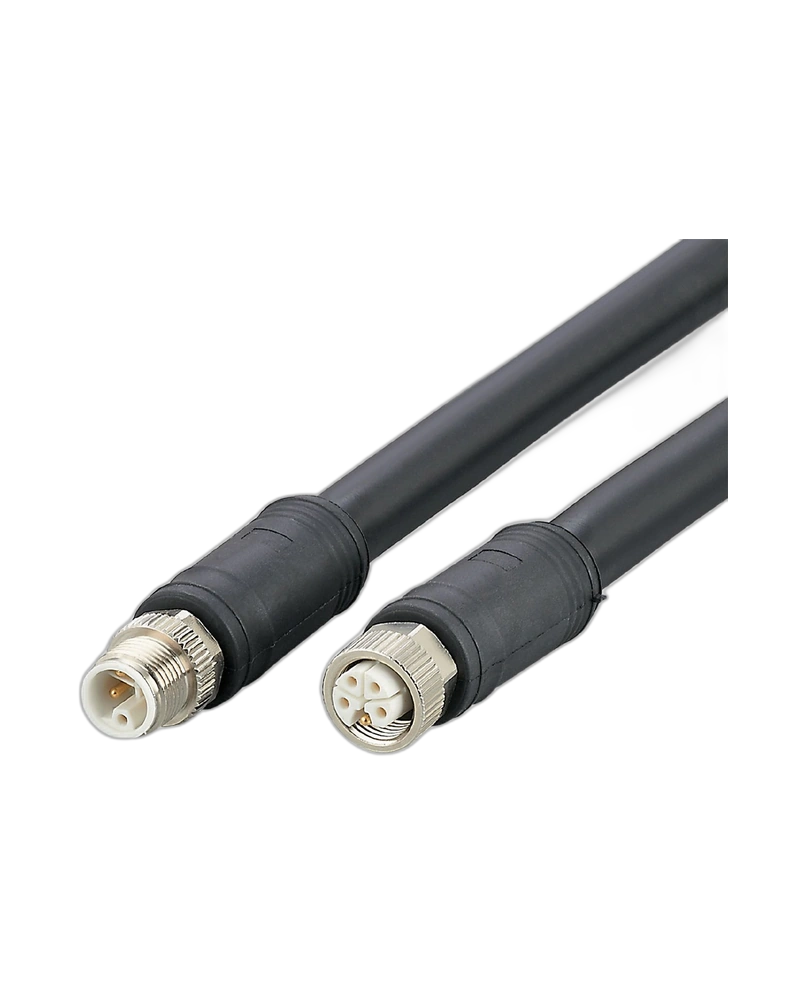

The IFM E12657 is a 20 m M12/M12 connecting cable designed for extended industrial automation wiring. Its long cable length supports connections across larger machines and installations, while the robust PUR cable and industrial M12 connectors provide dependable connectivity for compatible field modules, machine tools and factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12657 provides an extended M12/M12 connection for industrial automation systems. Its 20 m cable length is suitable for installations requiring significant connection distance.
The 20 m length provides additional flexibility for large machinery and distributed field equipment. It allows connection between devices located farther apart.
The cable uses a robust PUR construction and industrial M12 connection technology. The connector and sealing arrangement are designed for suitable industrial environments.
The extended length supports flexible cable routing across larger machine assemblies and factory automation installations.
M12/M12 connection
20 m cable length
PUR cable construction
5 × 2.5 mm² configuration
Gold-plated contacts
Nickel-plated brass coupling nut
Viton sealing
IP65/IP67 protection when connected
Long-distance connection solution
Suitable for industrial automation
Large machine installations
Factory automation
Machine tool systems
Field module connections
Industrial control equipment
Industrial electrical wiring
Automation systems
Distributed machine components
| Specification | Details |
|---|---|
| Product Code | E12657 |
| Cable Length | 20 m |
| Connection | M12/M12 |
| Cable Material | PUR |
| Cable Configuration | 5 × 2.5 mm² |
| Operating Voltage | Up to 63 V DC |
| Nominal Current | Up to 16 A at 45 °C; 12 A at 60 °C |
| Protection Rating | IP65 / IP67 |
| Contacts | Gold-plated |
| Seal | Viton |
| Application | Industrial automation |
| Brand | IFM |
